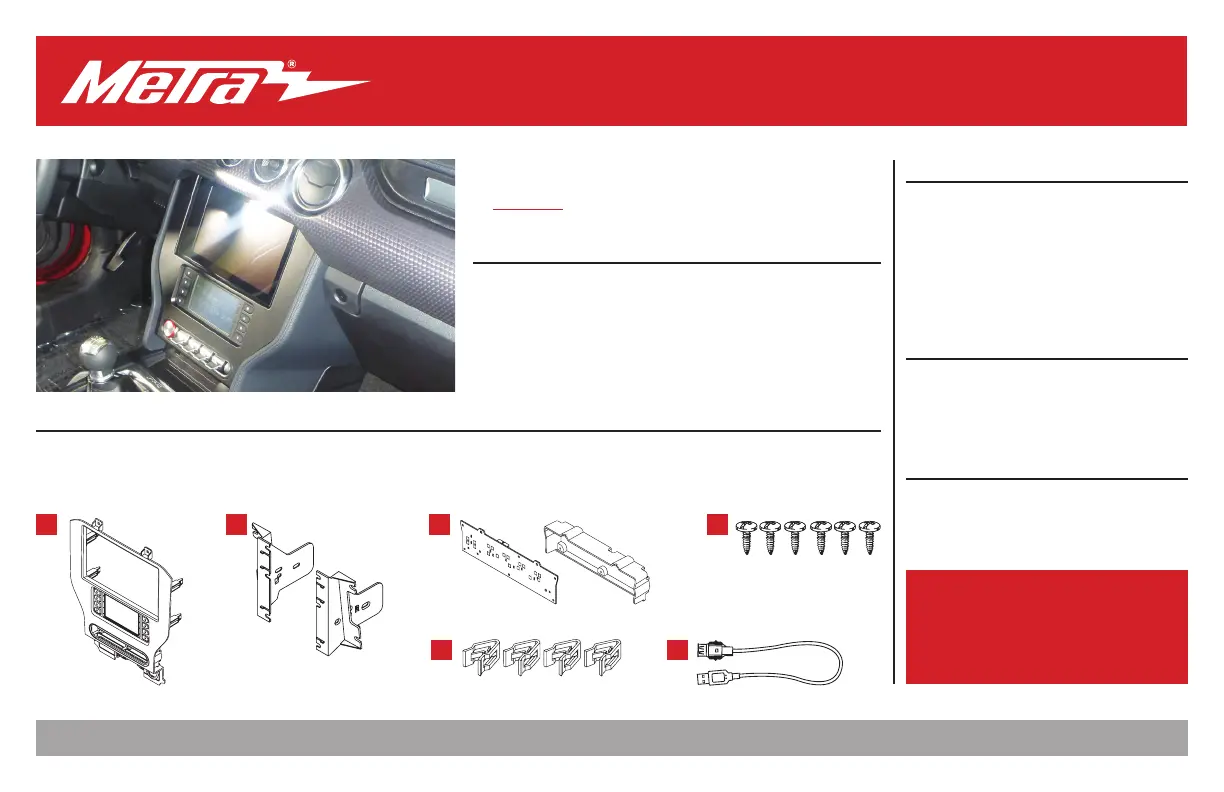

I N S TA L L AT I O N I N S T R U C T I O N S
108-FD6CH
Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV.
12/9/22
INST108-FD6CH
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
Patent Pending
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Touchscreen display for climate and personalization features
• Included interface for climate and steering wheel functions
• Integrated passenger airbag indicator
• Painted charcoal
KIT COMPONENTS
• A) Radio trim panel (with touchscreen display) • B) Radio brackets • C) Engine start/stop circuit board and cover • D) (6) #4 x 1/2” Phillips screws
• E) (4) Panel clips • F) USB cable • G) HVAC interface and wiring harness (not shown) • H) Antenna adapter (not shown) TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Cutting tool
• Torx T-10 screwdriver
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation ................................................... 4-5
Kit Assembly ..........................................................6
Axxess Interface installation ............................ 7-16
Final Assembly ......................................................11
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built
into touchscreen
Antenna Adapter: Included with kit
A B C D
Ford Mustang (with 8” touchscreen) 2015-Up
E F
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
386.257.1187
|
MetraOnline.com

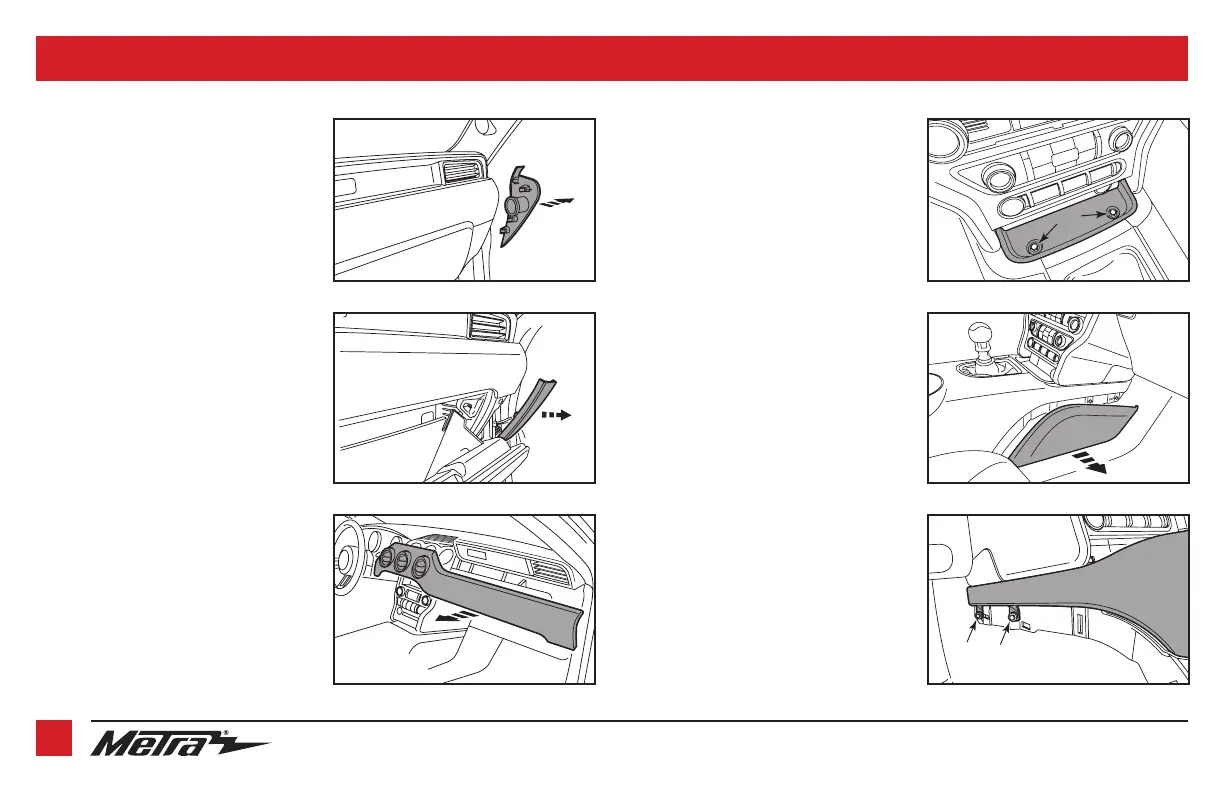

1. Open the passenger door and remove
the trim panel from the side of the dash.
(Figure A)
2. Open the glove box and remove the trim
panel on the right side. (Figure B)
3. Unclip and remove the trim/vent dash
panel. (Figure C)
DASH DISASSEMBLY
2
4. Remove the rubber tray cover in front
of the shifter, and then remove the (2)
9/32” screws exposed. (Figure D)
5. Unclip and remove the front side panels
from each side of the center console.
(Figure E)
6. Remove the (2) 9/32” screws from each
side of the center console. (Figure F)
Continued on the next page
(Figure A) (Figure D)
(Figure B) (Figure E)
(Figure C) (Figure F)
REV.
12/9/22 IN
ST108-FD6CH
DASH DISASSEMBLY (CONT.)
3
(Figure I)
(Figure H) (Figure J)
(Figure G)
7. Unclip the shifter trim bezel and slightly
pull it up to clear the center console trim
bezel removal.
8. Open the center console storage
compartment. Unclip the center console
trim bezel, then slide it toward the rear
of the vehicle to remove it. (Figure G)
Note: The complete center console does
not need to be removed. but if it is
desired to be removed, the Push-to-
Start module must be connected when
testing the kit.
9. Remove the plastic tray in front of the
shifter.
10. Remove the center plastic trim
(knockout) between the power outlet
and USB jack. (Figure H)
Ensure that the vehicle is completely
off before proceeding onto the
following (3) steps:
11. Remove the (4) 9/32” screws securing
the radio/climate control panel, and then
unclip, unplug, and remove. (Figure I)
12. Remove the (4) 9/32” screws securing the
display screen, then unplug and remove.
(Figure J)
13. Remove the (4) 9/32” screws securing the
radio chassis, then unplug and remove.
(Figure J)
Continue to Kit Preparation
(4.2” screen shown for illustration only)
(4.2” screen shown for illustration only)
