INSTALLATION INSTRUCTIONS

99-6520B

U.S. Patent # D755,778 D768,126

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air bag

indicator light, must be secure before cycling

the ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Included interface retains factory screen

• Painted matte black to match factory finish

Note: • Does not retain sound from Driver Convenience Group.

• Track and launch control features from SRT Package will be lost.

KIT COMPONENTS

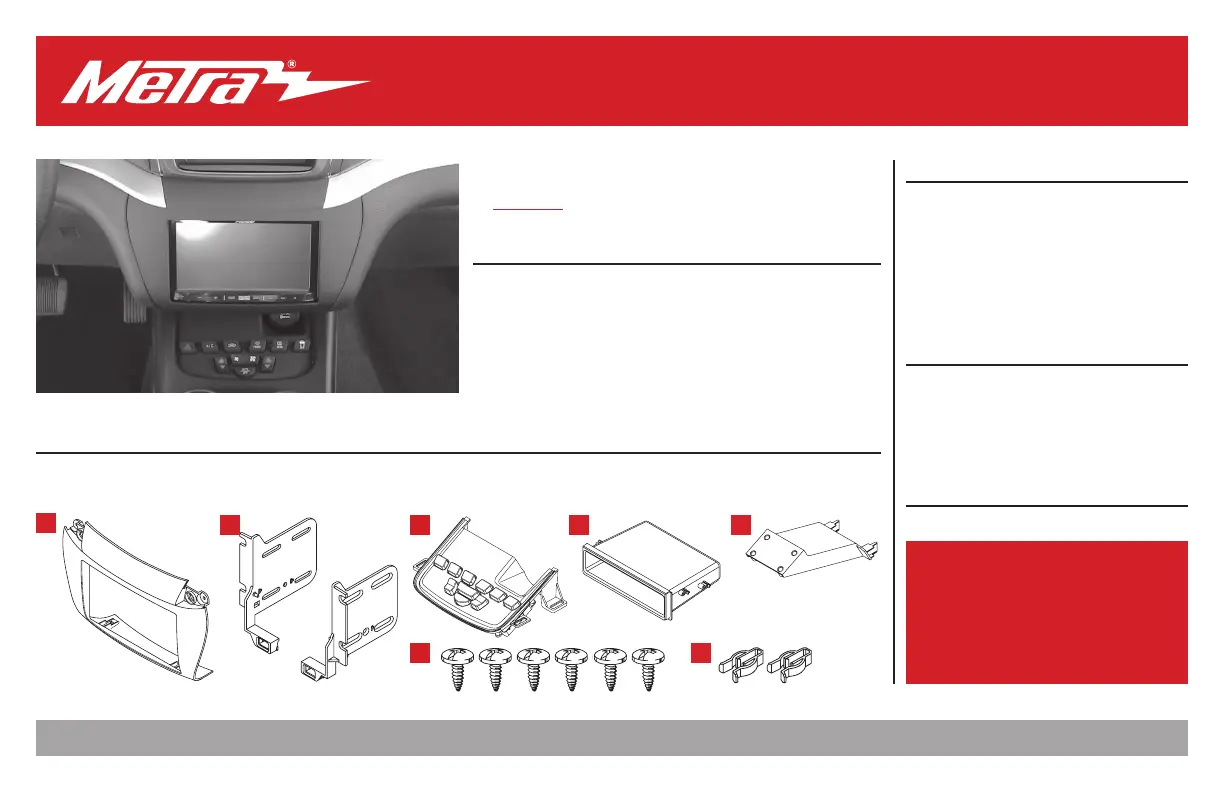

• A) Radio trim panel • B) Radio brackets • C) A/C button housing • D) Pocket • E) Console bracket • F) #8 x 3/8" Phillips pan-head screws (6)

• G) Panel clips (2) • H) Climate extension harness (not shown) • I) Axxess interface and harness (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

TABLE OF CONTENTS

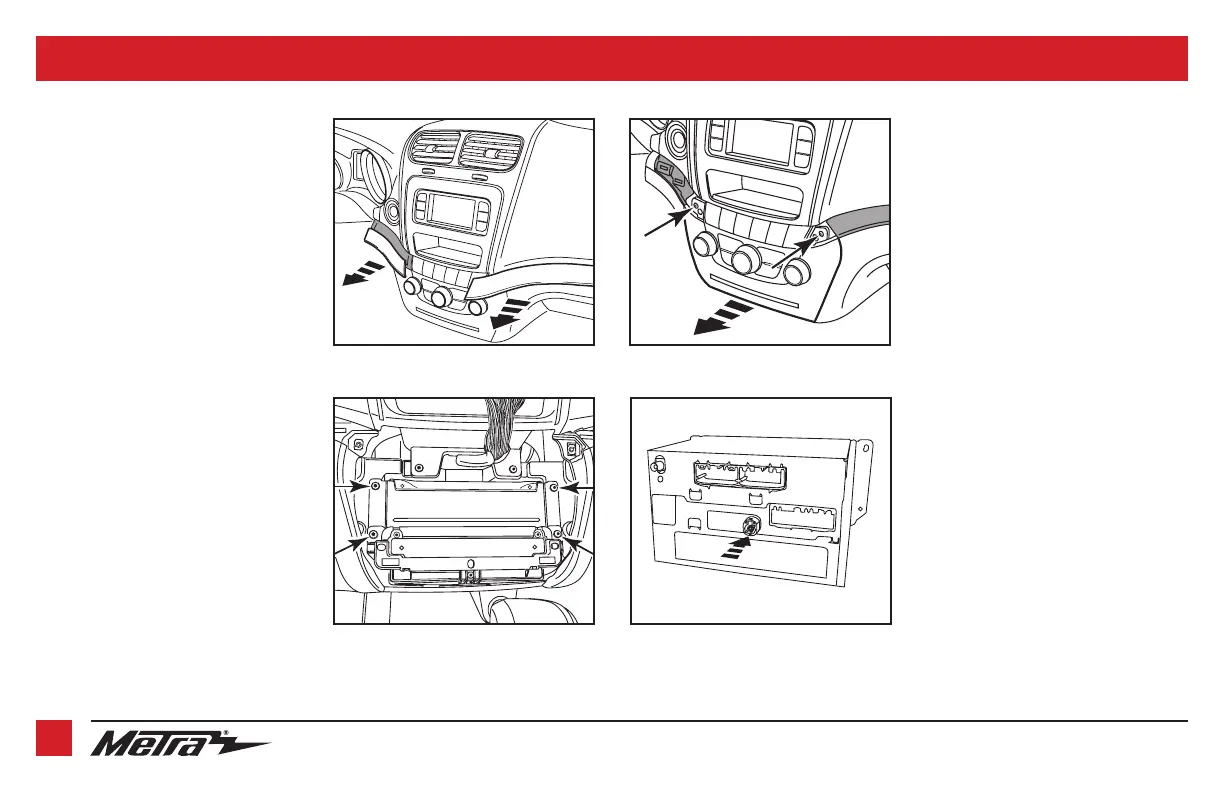

Dash Disassembly ..............................................2-3

Kit Preparation .......................................................4

Kit Assembly

– ISO DIN radio provision with pocket .................5

– ISO DDIN radio provision ...................................5

Axxess interface installation ...........................6-12

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Interface and harnesses included

Antenna Adapter: 40-EU10 (sold separately)

AXXESS Steering Wheel Control Interface (sold

separately)

Dodge Journey 2011-2020

A

FG

BCDE

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

specific applications.
