Metra. The World’s Best Kits.® metraonline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 11/16/23 INST99-6536
I N S TA L L AT I O N I N S T R U C T I O N S
99-6536
Patent # 10,579,232
ATTENTION: With the key out of the ignition, disconnect
the negative battery terminal before installing this
product. Ensure that all installation connections,
especially the air bag indicator lights, are plugged in
before reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.

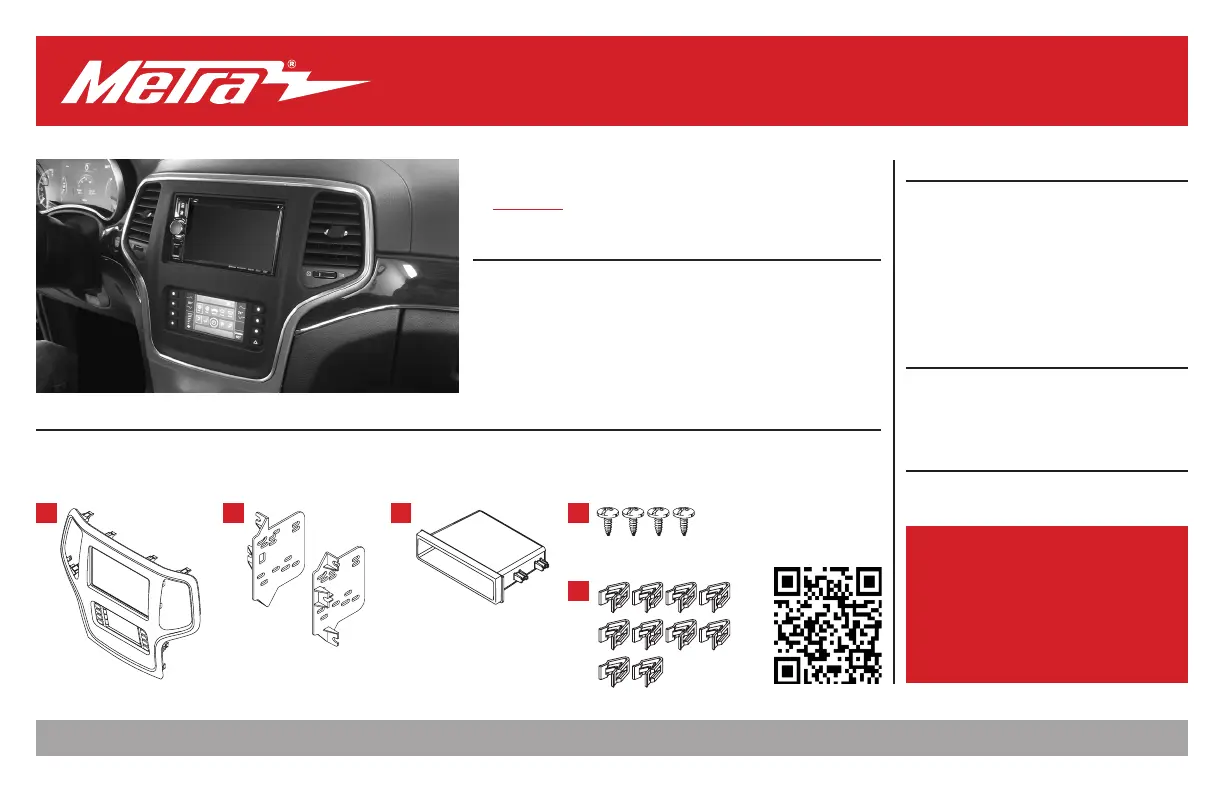

KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Retains audio controls on the steering wheel
• Retains the factory backup camera
• Touchscreen display for climate and personalization features
• Painted: Bronze - 99-6536BZ, Silver - 99-6536S
KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) #8 x 3/8" Phillips screws (4) • E) Panel clips (10)
• F) Wiring harness (not shown) • G) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" Socket wrench • 5.5mm Socket wrench
TABLE OF CONTENTS
Dash Disassembly 2 ..................................................
Kit Preparation 3 .......................................................
Kit Assembly
–ISO DIN radio provision with pocket 4 ..................
–ISO DDIN radio provision 4 ....................................
Axxess Interface Installation 5-14 ...........................
Final Assembly 9 .......................................................
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into
touchscreen
Antenna Adapter: Included with kit
A B C D
E
Jeep Grand Cherokee 2014-2021
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
Product Info
2386.257.1187
|
MetraOnline.com
DASH DISASSEMBLY
1. Using the panel removal tool, gently
unclip, unplug, and remove the climate
control panel. (Figure A)
2. Remove (4) 9/32" screws securing
the radio/display screen, and then
unplug and remove. (Figure B)
3. Remove (3) 5.5mm screws securing
the black control module in the
sub-dash, and then relocate lower to
allow clearance for the aftermarket
radio. (Figure C)
Continue to Kit Preparation
(Figure B)
(Figure A)
(Figure C)
REV. 11/16/23 INST99-6536 3
KIT PREPARATION
(Figure A) (Figure B)
From the factory radio/climate control panel:
1. Unclip the A/C vents from the back of the
panel. (Figure A)
To the 99-6536 radio trim panel:
1. Attach the A/C vents to the back of the
panel. (Figure B)
2. Attach the (10)
panel clips
provided in
this kit to the clips on the back of the
panel.
Continue to Kit Assembly
