CAUTION: Metra recommends disconnecting the negative battery
terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your
local Dealership for more information. All accessories, switches,
climate controls panels, and especially air bag indicator lights
must be connected before reconnecting the battery or cycling
the ignition. Also, do not remove the factory radio with the key
in the on position, or the vehicle running. It would be best to
remove the key from the ignition and then wait a few seconds
before removing the factory radio.

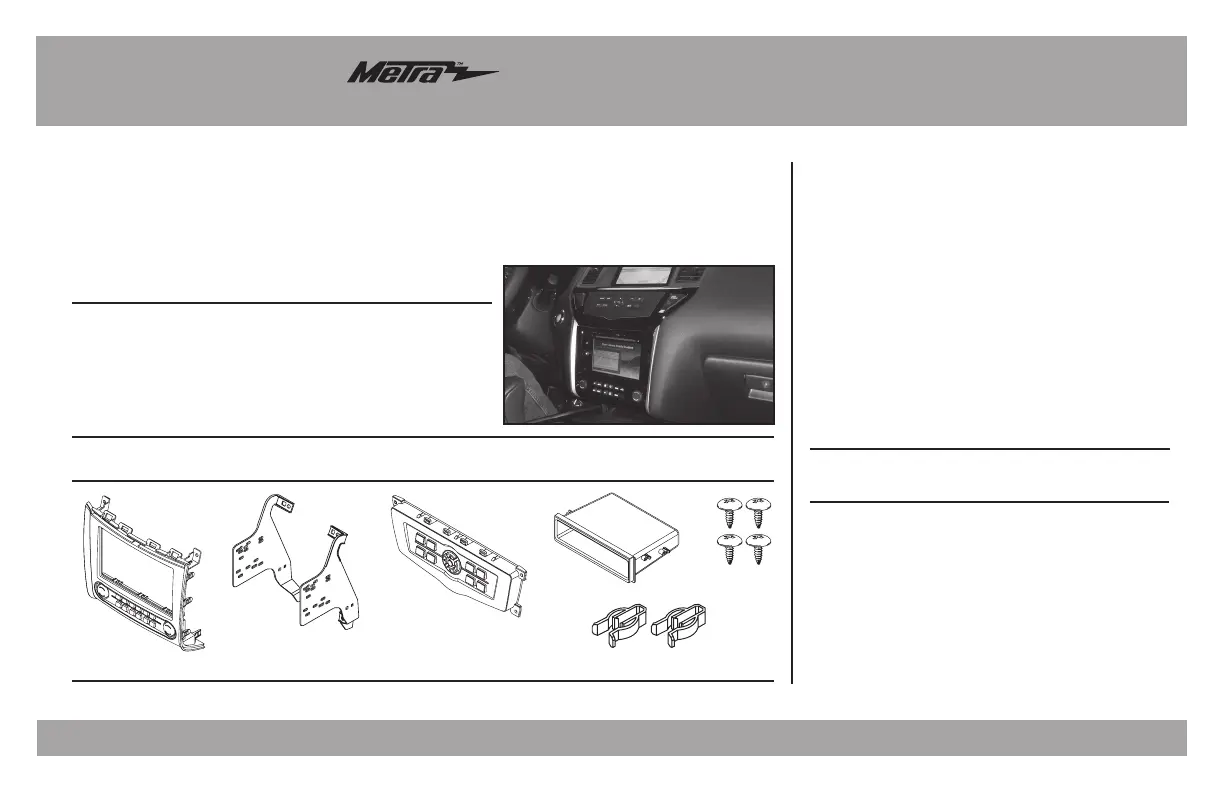

Installation instructions for part 99-7627HG
U.S. PATENT # D789,351
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted to match factory components
• A) Radio trim panel with climate controls • B) Radio brackets • (C) Keypad assembly • D) Pocket
• E) (4) #8 x 3/8” Phillips screws • F) (2) White panel clips • Axxess interface and harness (not shown)
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Included with kit Antenna Adapter: • 40-NI12
• Panel removal tool • Phillips screwdriver
• T-20 Torx driver
TOOLS REQUIRED
Nissan Pathfinder 2013-2016
(without NAV) (with color screen)
99-7627HG
A
DC
E
F
B
Dash Disassembly ..............................................2-3
Kit Preparation ....................................................... 3
Kit Assembly
– ISO DIN radio provision with pocket ...................... 4
– ISO DDIN radio provision ...................................... 4
Axxess interface installation ..............................5-7
Screen Operation ..............................................8-10
Table of Contents
99-7627HG
2

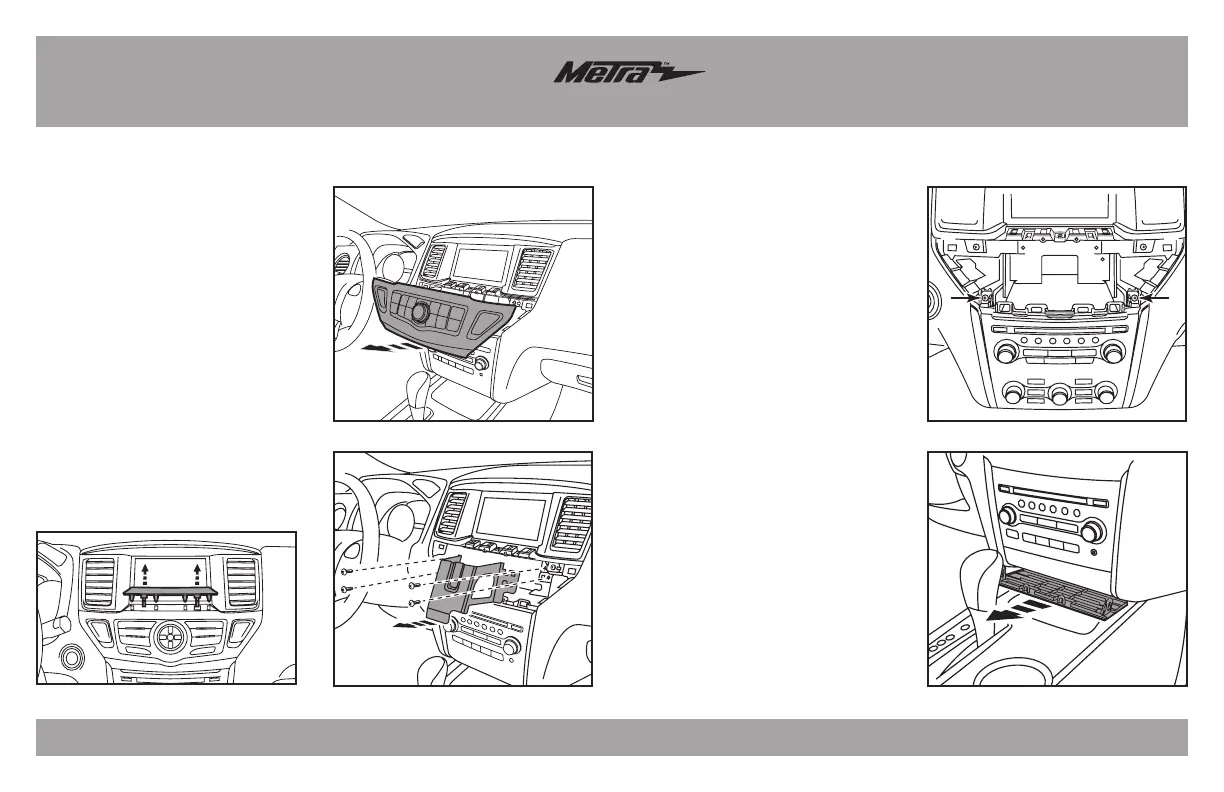

Dash Disassembly
1. Unclip and remove the trim panel
located between the vehicle screen
and control panel, and then remove
(1) Phillips screw now exposed.
(Figure A)
2. Unclip the screen control panel,
unplug the connectors, and then
remove the keypad assembly from
the panel. Note: The panel will be
reused during kit assembly.
(Figure B)
3. Unscrew (4) Phillips screws securing
the metal brace now exposed above
the radio/climate-control panel, and
then remove the brace. (Figure C)
4. Remove (2) Phillips screws from the
top of the radio/climate-control panel.
(Figure D)
5. Unclip and remove the trim panel
underneath the radio/climate-control
panel. (Figure E)
Continued on next page
(Figure A)
(Figure E)
(Figure D)
(Figure B)
(Figure C)
