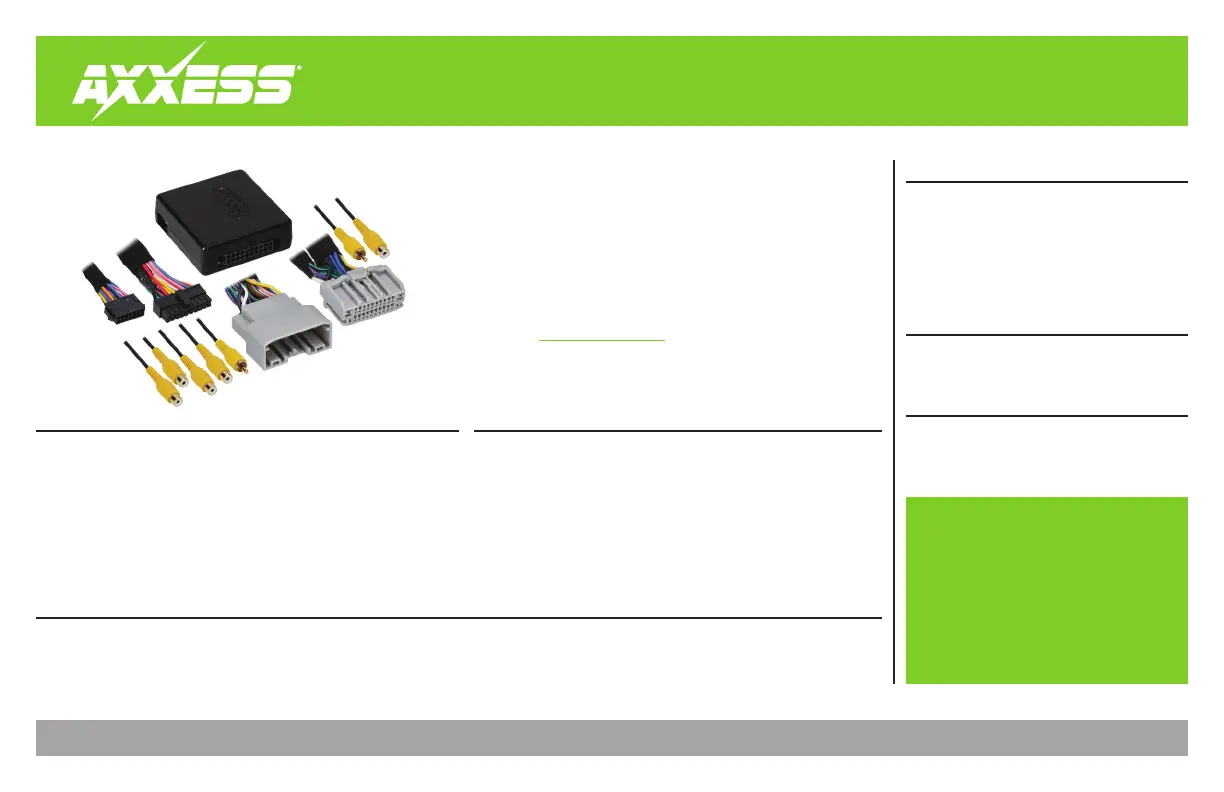

AXAC-CH4
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 2/21/23 INSTAXAC-CH4
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions
included with the aftermarket accessory
before installing this device.
TOOLS REQUIRED
INTERFACE COMPONENTS
REQUIRED ITEMS
TABLE OF CONTENTS
Introduction............................................................2
Configuration ..................................................... 2-4
Connections ............................................................5
Installation .............................................................6
Programming .........................................................6
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
• AXAC-CH4 interface
• AXAC-CH4 interface harness
• AXAC-CH4 vehicle harness (qty. 2)
• 22-pin T-harness
• 22-pin T-harness (cam harness)
Update Cable: AXUSB-MCBL (sold separately)
Axxess Updater Program
† With 8.4-inch U-Connect radio
Chrysler/Dodge/Jeep† Camera Interface
With Pre-Wired
Harness
2007-2018
APPLICATIONS
Chrysler
300 2008-2010
Dodge
Challenger 2008-2014
Durango 2011-2013
Jeep
Liberty 2008-2011
Wrangler (JK) 2007-2018
Note: Only compatible with NTSC cameras.
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
INTERFACE FEATURES
• (4) Camera inputs
• Reverse signal trigger generated via CAN bus communication
of the vehicle
• Turn signal trigger generated via CAN bus communication
of the vehicle
• (4) Programmable camera control wires
• Micro-B USB updatable
2
CONFIGURATION

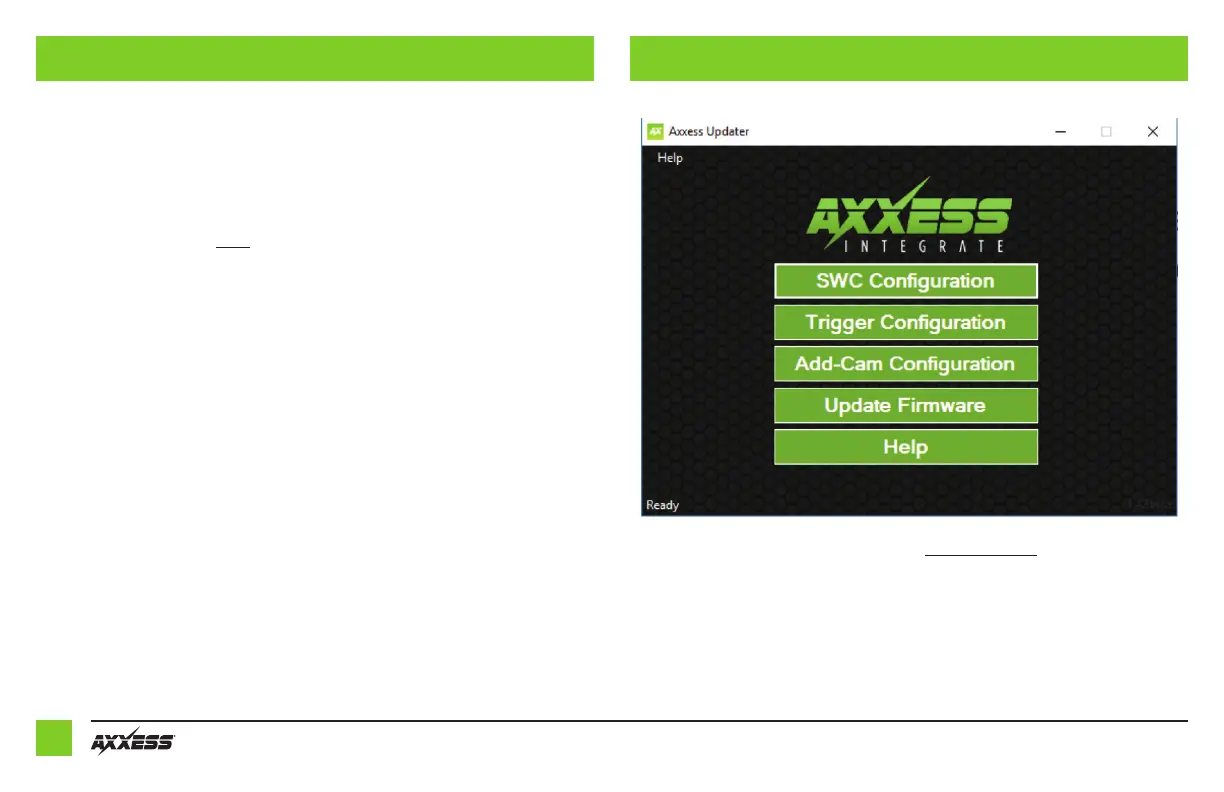

• Download and install the Axxess Updater available at: AxxessInterfaces.com
• Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer.
The cable will connect into the micro-B USB port in the interface.
• Open the Axxess Updater and wait until the word is listed in the bottom left of the screen.Ready
• Select Add-Cam Configuration.
Continued on the next page
INTRODUCTION
The AXAC-CH4 is a camera switching interface that provides up to (3) additional camera inputs
to the factory radio, while still retaining the factory camera. With this interface a front camera,
and/or side cameras, can be added to the factory radio. The cameras function automatically, no
human interaction required, unless desired to do so. The interface can also be used if the vehicle
doesn’t come equipped with a backup camera, adding up to (4) cameras in this scenario. Axxess
recommends cameras from the iBEAM product line for best results.
3
REV. 2/21/23 INSTAXAC-CH4
• Under Configuration, configure the (4) video trigger inputs to the desired settings. †
• Once all selections have been configured, press Write Configuration to save the settings.
• Unplug the update cable from the interface and computer.
† Refer to the following page for more information.
CONFIGURATION (CONT.)
Continued on the next page
• Select the vehicle in the drop down list. A tab labeled Configuration will appear after the
vehicle has been selected.
