AXDI-PO4
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 6/7/24 INSTAXDI-PO4
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.)
TABLE OF CONTENTS
Connections: BLK-AXDI-PO4 Harness 2 ...................
Applicable Radios 3 ..................................................
Installation 3 .............................................................
Installing the Fiber Optic Cable.............................3
Tips 4 ..........................................................................
Porsche (with MOST*25 amplifier)
Data Interface 2004-2013
* Media Oriented System Transport
INTERFACE FEATURES
INTERFACE COMPONENTS
• Designed for MOST25 amplified systems
• Provides accessory power (12-volt)
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Micro B USB updatable
• AXDI-PO4 interface • AXDI-PO4 harness
APPLICATIONS
US Applications
Porsche
911 (997) 2004-2008 ..........................................
Boxster (987) 2005-2009 ..................................
Cayman (987) 2005-2009 ................................
World Applications
Porsche
911 (997) 2004-2012 ...........................................
Boxster (987) 2005-2012 ...................................
Cayman (987) 2005-2013 .................................
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications
2

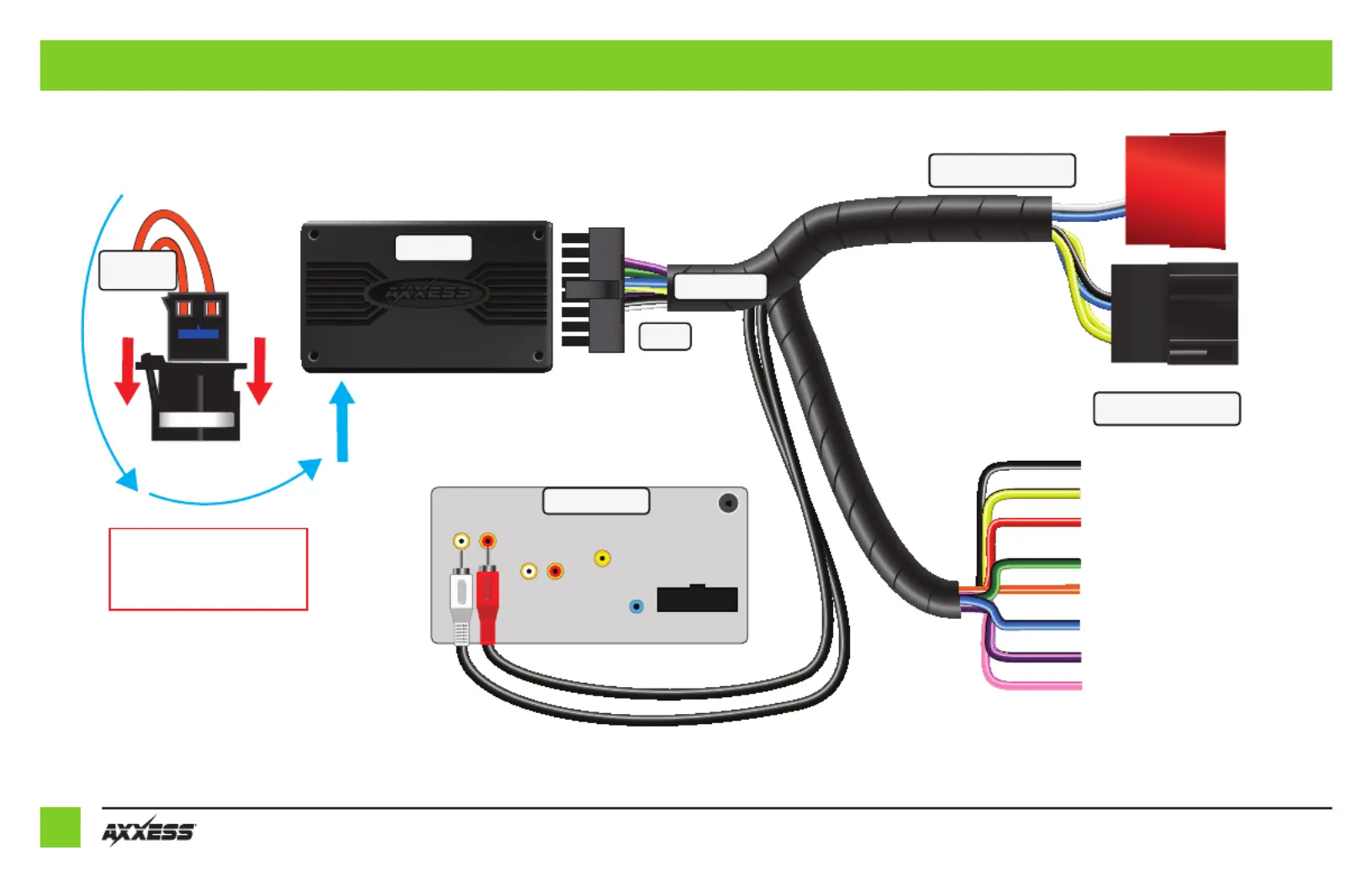

CONNECTIONS: BLK-AXDI-PO4 HARNESS
Front
Rear
u
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Reverse
Orange - Illumination
Blue - AMP Turn On
Purple - E-Brake
Pink - VSS
16-Pin
Vehicle Connector
Radio Connections
BLK-AXDI-PO4
Plastic Housing
Installing the Fiber Optic Cable:
1. Remove the for the factory RadioOE Fiber Optic Cable
Factory Fiber
Optic Connector
Refer to
Installing the Fiber Optic Cable
section on the next page
Interface
3
REV. 6/7/24 INSTAXDI-PO4

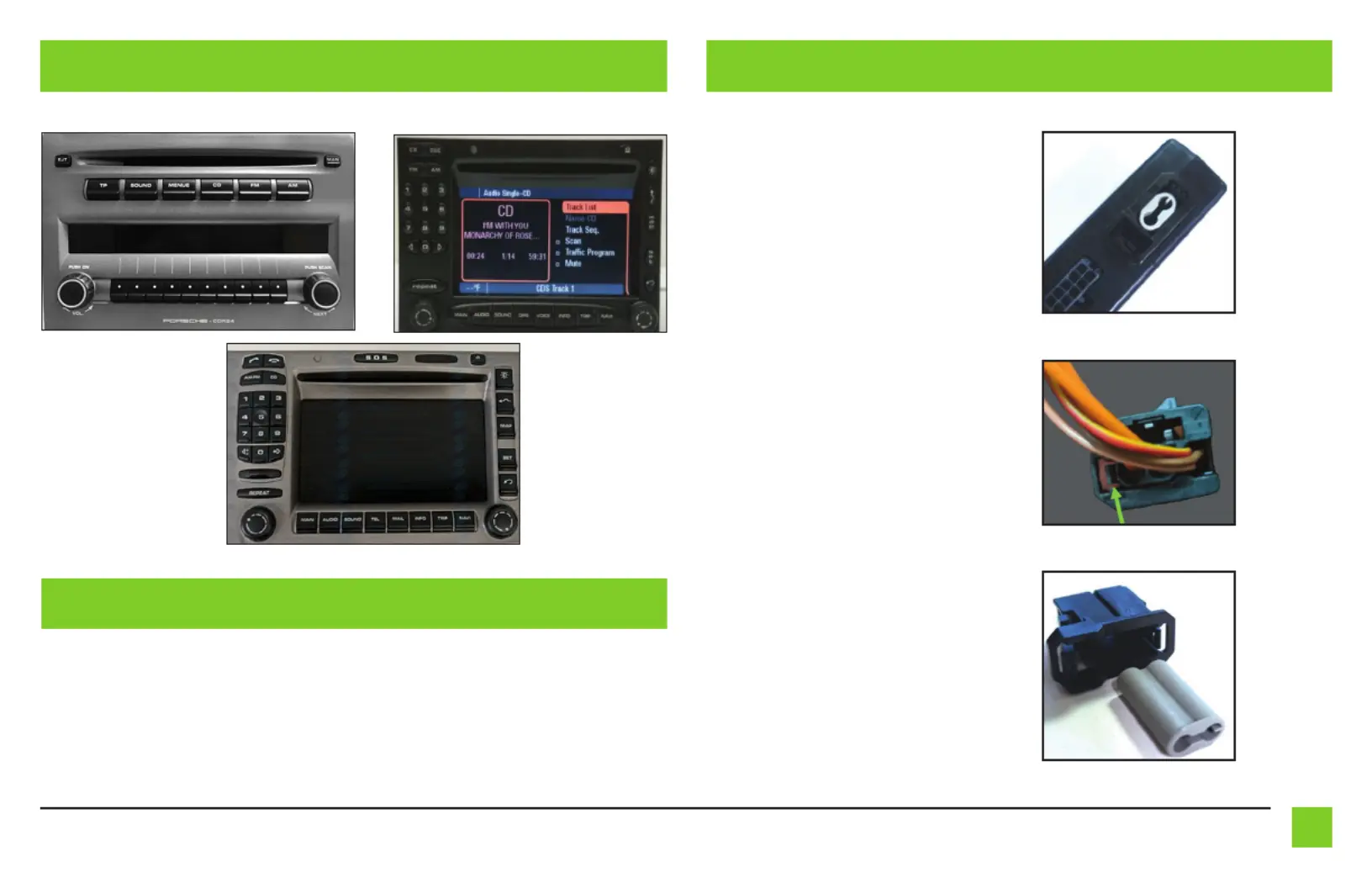

INSTALLATION
With the key in the off position:
• Connect the to theAXDI-PO4 harness AXDI-PO4 interface.
• Remove the dust cover from fiber optic port in the AXDI-PO4.
• Connect the factory fiber optic cable into the . AXDI-PO4
• Connect the to the in the vehicle.AXDI-PO4 harness wiring harness
APPLICABLE RADIOS
INSTALLING THE FIBER OPTIC CABLE
Installing the Fiber Optic Cable:
Removal of the original fiber optic connection
is required to adapt to the Media Oriented
System Transport (MOST) interface.
•
Seat the interface in the black AXDI-PO4
connector housing provided with this kit
and snap the housing in place. (Figure A)
• From the original Fiber Optic Connector:
Using a pick tool, carefully pull this
tab towards the outside edge for the
connector housing. Gently remove the
fiber optic insert from the connector.
(Figure B)
• From the Push the MOST Interface:
tab toward the dust cover and, using
a needle nose plier, remove the dust
cover. Replace the connector with the
factory fiber optic cables in to the MOST
interface’s black connector housing.
(Figure C)
(Figure A)
(Figure B)
(Figure C)
Without Steering Wheel Controls, with CDR24/PCM2.0/PCM2.1
