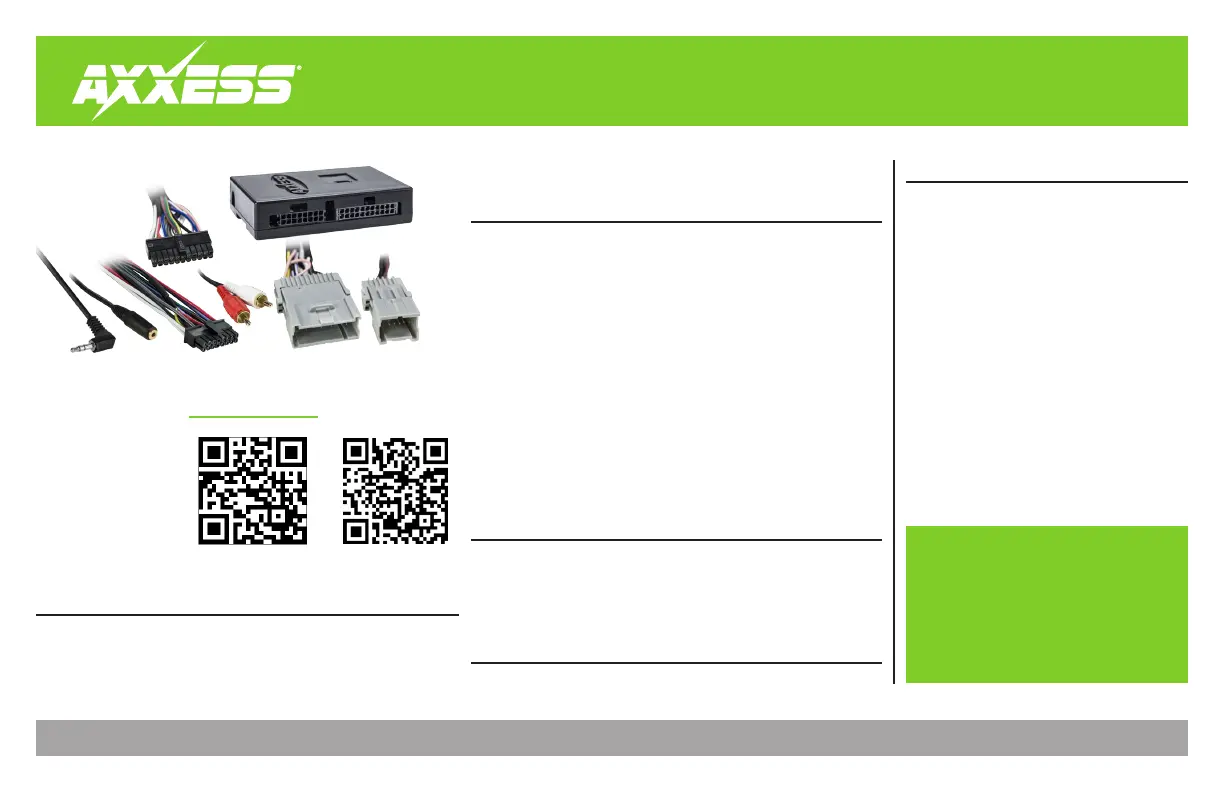

AXDIS-CL2

INSTALLATION INSTRUCTIONS

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Wire cutter • Crimp tool • Solder gun

• Tape • Small flat-blade screwdriver

• Connectors (example: butt-connectors, bell caps, etc.)

TABLE OF CONTENTS

Applications ...........................................................2

Connections

Non-amplified Models ........................................3

Amplified Models ................................................ 4

Installation .............................................................5

Programming .....................................................5-6

Adjusting the AXDIS-CL2 ....................................... 7

Extra features ..................................................... 7-8

Steering wheel control settings ......................9-12

L.E.D. feedback ....................................................9

Changing radio type ......................................... 10

Remapping ........................................................ 10

Dual assignment instructions ..................... 11-12

Troubleshooting....................................................12

GM Data Interface with SWC 2000-2013

APPLICATIONS

See inside front cover

• Designed for non-amplified, or

analog/digital amplified models

• Provides accessory power

(12-volt 10-amp)

• Retains R.A.P. (Retained

Accessory Power)

• Provides NAV outputs (parking

brake, reverse, speed sense)

• Retains chimes

• Retains audio controls on the

steering wheel

• Retains OnStar

/OE Bluetooth

• Adjustable OnStar

level

• Retains the factory AUX-IN jack

• Retains RSE

(Rear Seat Entertainment) *

• Retains SAT (satellite radio)

• Retains balance and fade

(excludes digital amplified

models)

• Micro “B” USB updatable

• AXDIS-CL2 interface • AXDIS-CL2 harness

• 16-pin harness with stripped leads • 4-pin to 4-pin resistor pad

• Female 3.5mm connector with stripped leads

* The RSE must be activated by the factory radio

Product Info

www.MetraOnline.com

MetraOnline.com may be

used to assist with dash

assembly instructions.

Simply enter your Year,

Make, Model vehicle into

the vehicle fit guide and

look for the Dash Kit

Installation Instructions.

APPLICATIONS

BUICK

Century ............................................... 2004-2005

Century ............................................... 2005-2009

Rainier * ........................................................ 2004

Rainier .................................................2005-2007

Regal ............................................................. 2004

Rendezvous .........................................2002-2007

Terraza .................................................2005-2007

CADILLAC

Escalade, Escalade ESV & EXT †

............................................................. 2003-2006

CHEVROLET

Avalanche ** ...................................... 2003-2006

Cavalier ...............................................2000-2005

Colorado .............................................. 2004-2012

Corvette ............................................... 2005-2013

CHEVROLET (CONT)

Express.................................................2003-2007

Impala .................................................2000-2005

Kodiak C4500-C8500 ......................... 2003-2009

Malibu .................................................. 2001-2003

Malibu Classic ..................................... 2004-2005

Monte Carlo ........................................ 2000-2005

Silverado ** ........................................ 2003-2006

Silverado Classic ** .......................................2007

SSR * .................................................... 2003-2006

Suburban ** ........................................ 2003-2006

Tahoe ** .............................................. 2003-2006

Trailblazer * ........................................ 2002-2004

Trailblazer ...........................................2005-2009

Uplander ............................................. 2005-2008

GMC

Canyon .................................................2004-2012

Envoy * ............................................... 2002-2004

Envoy ..................................................2005-2009

Savana .................................................2003-2007

Sierra ** .............................................. 2003-2006

Sierra Classic ** .............................................2007

TopKick C4500-C8500 ........................2005-2009

Yukon / Yukon XL ** .......................... 2003-2006

HUMMER

H2 † .......................................................2003-2007

H3/H3t .................................................. 2006-2010

ISUZU

Ascender ............................................. 2003-2008

H-Series .............................................. 2003-2008

I-Series ................................................2006-2008

OLDSMOBILE

Alero ....................................................2001-2004

Bravada * ............................................ 2002-2004

Intrigue ..........................................................2002

PONTIAC

Aztec ....................................................2001-2005

Grand Am ............................................2001-2005

Grand Prix ...........................................2004-2008

Montana SV6 ...................................... 2005-2006

Sunfire ................................................2000-2005

SAAB

9-7x .....................................................2005-2009

SATURN

Relay ....................................................2005-2007

These vehicles have a digital amp option. Please reference the “Service Parts Identification” sticker located in the glove box for the RPO code UQA. If UQA

is present, then the vehicle is equipped with a digital amplifier.

These vehicles have a digital amp option. Please reference the “Service Parts Identification” sticker located in the glove box for the RPO code Y91. If Y91 is

present, then the vehicle is equipped with a digital amplifier.

†

These vehicles are standard for a digital amplifier.
