AXDIS-MB132
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 4/8/24 INSTAXDIS-MB132
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
TOOLS REQUIRED
• Wire cutter
• Crimp tool and connectors (example: butt
connectors, bellcaps, etc.)
• Solder gun, solder, heat shrink
• Tape • Zip-ties
TABLE OF CONTENTS
Connections: BLK-AXDIS-MB132 Harness 2 .............
Steering Wheel Control Chart (SWC) 3 ...................
Installing the Fiber Optic Cable.............................4
Installing the AXDIS-MB132 Interface 5 ...................
Mercedes (with MOST 25 amplifier)
Data Interface with SWC 2002-2011
INTERFACE FEATURES
• Designed for MOST*25 amplified systems
• Provides accessory power (12-volt)
• Retains audio controls on the steering wheel controls
• Easy to set Dipswitches for SWC configuration
•
Provides NAV outputs (parking brake, reverse, and speed sense)
• Micro B USB updatable
Note: Backup Camera not retained if equipped.
* Media Oriented System Transport
APPLICATIONS
US Applications: Mercedes
E Class (W211) 2003-2008 .........................................................................
CLS (W219) 2006-2011 ...............................................................................
SLK (R171) 2005-2011 .................................................................................
World Applications: Mercedes
E Class (W211) 2002-2009 ..........................................................................
CLS (W219) 2004-2010 ...............................................................................
SLK (R171) 2004-2010 .................................................................................
With OEM Navigation

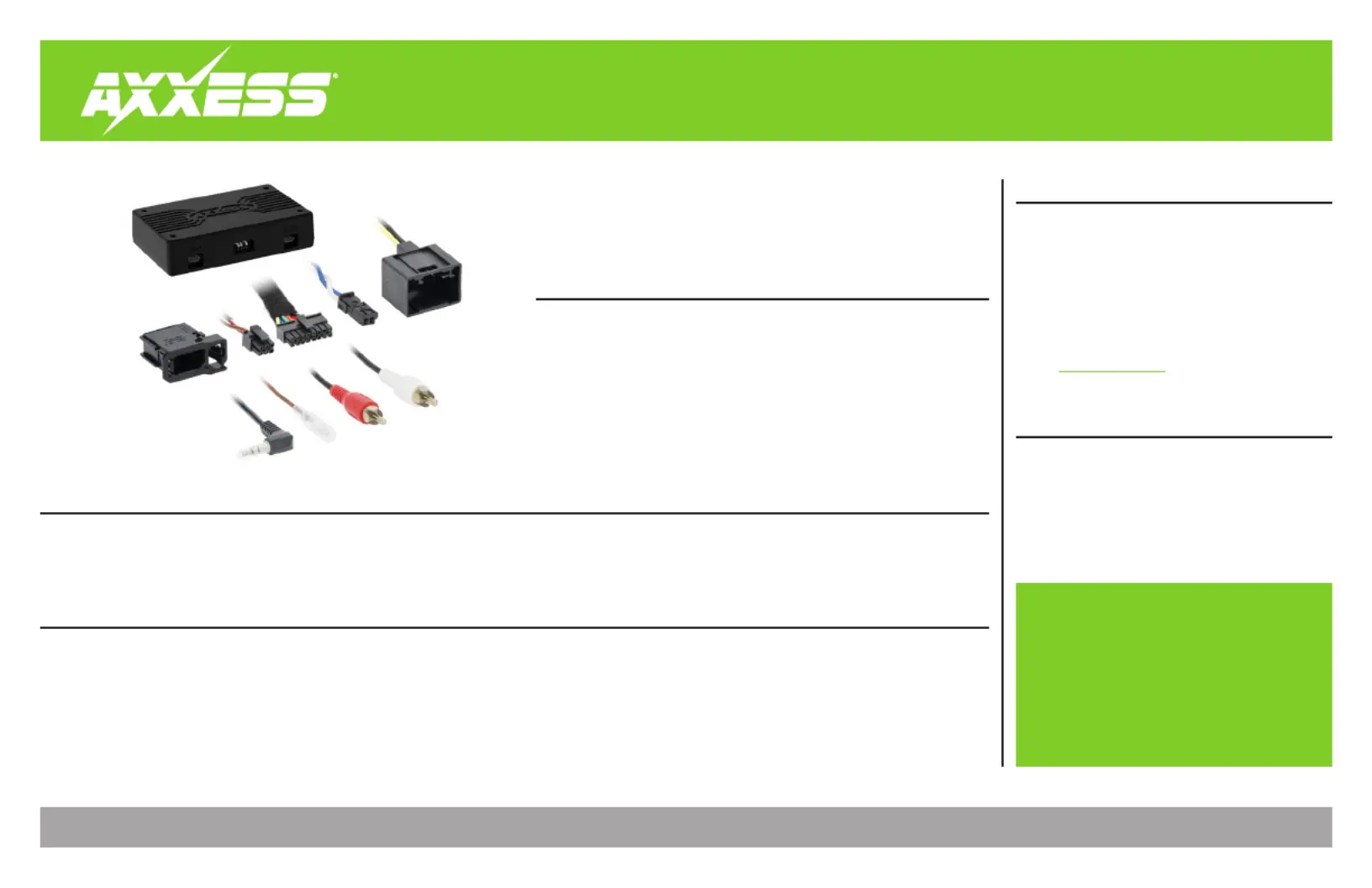

• AXDIS-MB132 interface
• BLK-AXDIS-MB132 harness
• Steering wheel control harness
INTERFACE COMPONENTS
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications
2
CONNECTIONS: BLK-AXDIS-MB132 HARNESS
Front
Rear
ub
AUX-IN
Rear View
SWC
(Your radio’s features may vary)
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Reverse
Orange - Illumination
Purple - E-Brake
Pink - VSS
6-Pin
2-Pin
Vehicle
Connectors
16-Pin
Radio Connections
BLK-AXDIS-MB132
Aftermarket Radio
Brown - Wired SWC
“Kenwood/JVC”
Refer to step 6 on page 5,
Figure B, for CAN junction
block connection
To Vehicle
3
REV.4/8/24 INSTAXDIS-MB132
SWC CHART
Metra MOST Interface Dipswitch Table
MFR System
DIP Switch Sengs
Addional
Comments
1 2 3 4 5
RESERVED
NA
OFF OFF OFF OFF OFF SW UPDATE MODE
ALPINE
IR DATA
OFF OFF OFF OFFON
AXXERA 2
IR DATA
ON ON OFF OFF OFF
CLARION 1
IR DATA
ON ONOFF OFF OFF
CLARION 2
IR DATA
ON ON ONOFF OFF
DUAL
Analog
OFF OFF OFFON ON
GRUNDIG
IR DATA
OFF OFF OFFON ON
JENSEN
Analog
OFF OFF OFF ON ON
JVC
IR DATA
OFF OFF OFF OFF BROWN WIRED SWCON
KENWOOD 1
IR DATA
ON OFF OFF OFF OFF BROWN WIRED SWC
KENWOOD 2
IR DATA
ON ON OFF OFF OFF BROWN WIRED SWC
LG 1
Analog
OFF OFF OFFON ON
LG 2
IR DATA
OFF OFF OFFON ON
PHILIPS 1
IR DATA
ON ON ONOFF OFF
PHILIPS 2
IR DATA
OFF OFF OFFON ON
PIONEER 1
Analog
OFF OFF OFF MALE 3.5MM JACKON ON
PIONEER 2
Analog
OFF OFF OFF OFF MALE 3.5MM JACKON
SONY
Analog
OFF OFF OFF MALE 3.5MM JACKON ON
VALOR
IR DATA
ON ONOFF OFF OFF
SPARE
IR DATA
OFF OFFON ON ON
SPARE
Analog
ON ON ON OFF OFF
SPARE
Analog
ON ON ON ON OFF
Press dipswitch in to the down position to turn ON.
Pioneer 1 example shown in the diagram.
