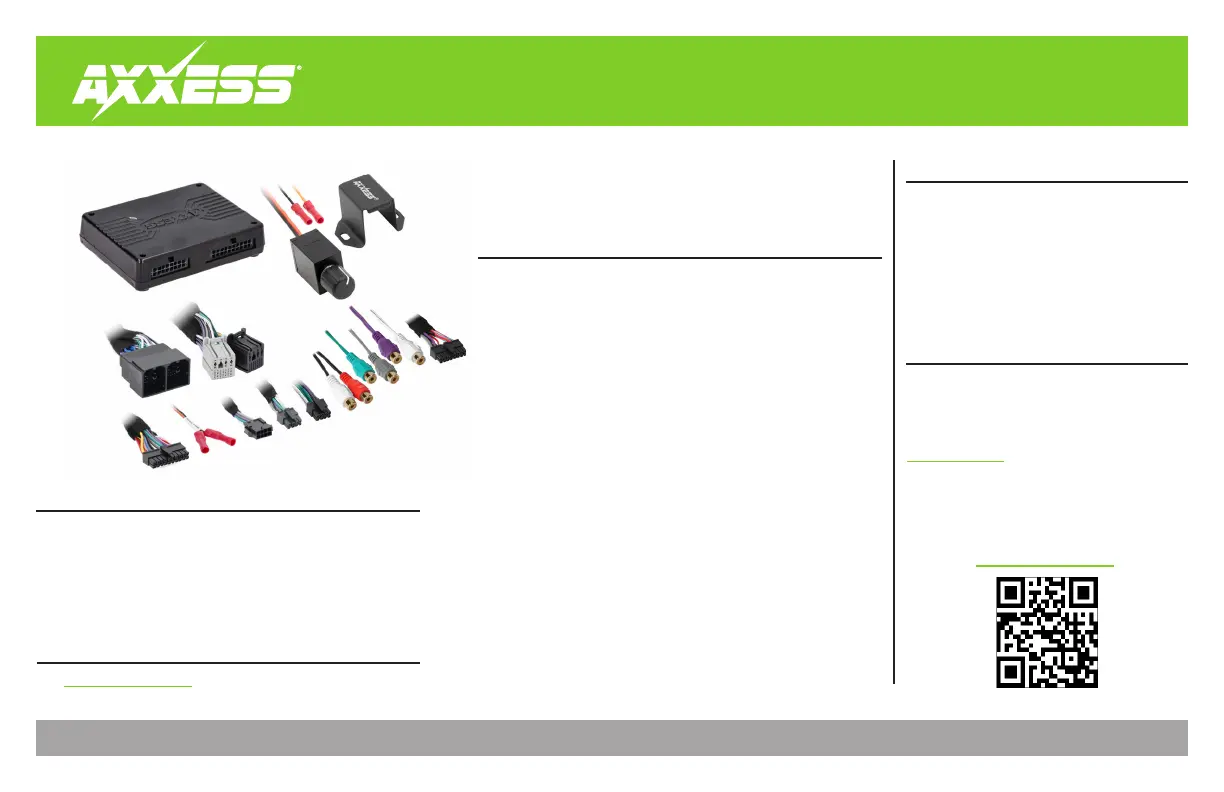

AXDSPL-GM32
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 2/1/24 INSTAXDSPL-GM32
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
TABLE OF CONTENTS
Installation Options ...............................................2
Installation .............................................................2
Connections ........................................................3-4
AXDSPL-BT Installation...........................................5
AXDSPL-SP Installation...........................................6
Mobile App ......................................................... 7-8
Specifications .........................................................9
GM DSP Interface With Pre-Wired Harness
2021-Up
• Includes a DSP (Digital Signal Processor)
• 15 Band graphic EQ
• 4 inputs and 6 individually assignable outputs
• Independent equalization for front, rear, and sub
• Selectable low pass, band pass, and high pass filters
• Selectable crossover slopes; 12db, 24db, 36db, 48db
• Each channel can be delayed independently up to 10ms
• Clipping detection and limiting circuits
• Retains factory parking sensor chimes
• Retains OnStar® voice prompts
• Adjustable chime level
• Designed for non-amplified models
• Easy behind the radio installation with pre-wired harness
• Internal header port for adding interface modules
• Bass knob included for level control of subwoofer amp
• Settings adjusted via Bluetooth
®
in a smart device application (tablet
or mobile phone), compatible with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro-B USB updatable
• AXDSPL-GM32 interface
• AXDSPL-GM32 output harness (LD-AX-DSP-OUT2)
• AXDSPL-GM32 vehicle T-harness (LD-DSP-GM32)
• Resistor Pad (LD-DSP-RPAD2)
• Bass knob (LD-BASSKNOB)
APPLICATIONS
Visit Axxessinterfaces.com for current application list
www.MetraOnline.com
MetraOnline.com may be used to assist with dash
assembly instructions. Simply enter your Year,
Make, Model vehicle into the vehicle fit guide and
look for the Dash Kit Installation Instructions.
2
Adding a sub to a factory system:
This feature offers the ability to add a subwoofer to a factory system. (refer to page 3)
Adding a full-range amp & sub to a factory system:
This feature offers the ability to add a full-range amp and sub to a factory system. (refer to page 4)
16-pin header port:
Inside the interface is a 16-pin header port for adding optional modules (sold separately). Page 5
and 6 will show the installation and use of these modules.
• AXDSPL-BT - Bluetooth streaming interface
• AXDSPL-SP - Toslink digital output
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Remove the factory radio †, then unplug all connectors.
2. Install the AXDSPL-GM32 vehicle T-harness to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. Plug the AXDSPL-GM32 vehicle T-harness to the AXDSPL-GM32 interface.
4. Plug the AXDSPL-GM32 interface harness to the AXDSPL-GM32 interface.
5.
Download and install the AX-DSP-XL app from the Google Play Store or Apple App
Store
.
6.
Cycle the ignition on.
7. Open the app then select the Bluetooth Connection tab. Follow the instructions to
pair the mobile device to the interface. Refer to page 7 for more information.
8. Scroll to the Configuration tab then select the vehicle type. Press the Lock Down ‡
button to save the configuration. Refer to page 8 for more information.
9. Connect the amp turn-on wire.
10. Adjust the settings in the app as desired. Press the Lock Down ‡ button to save any
new configurations.
† Refer to Metra online for dash disassembly. If Metra makes a dash kit for the vehicle,
disassembly will be within those instructions.
‡ Anytime the interface is locked down the key must be cycled off then back on
INSTALLATION OPTIONS I N S TALLATIO N
