Seite 1/8
AXPIOB-GM1
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 3/15/24 INSTAXPIOB-GM1
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator
lights, are plugged in before reconnecting
the battery or cycling the ignition to test this
product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
TABLE OF CONTENTS
Connections 2 ............................................................
Radio Operations 3-4 ...............................................
Applicable Radio Models........................................5
GM Pioneer Basic Package 2010-2015
KIT FEATURES)
• Designed for select Pioneer receivers
• Designed for non-amplified vehicles only (to retain Bose amplifier
purchase AXM50-GM1)
• Allows for the retention and adjustment of the factory personalization
menu through the Pioneer radio
• Provides a visual view of HVAC and gauges on the Pioneer screen (cannot
be adjusted via the screen)
• Complete Plug-n-Play installation
• Includes radio antenna adaptor for GPS
• Provides accessory power (12-volt 10-amp)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Works in both single and dual-zone vehicles
• Retains safety chimes through an included off-board speaker
• USB Micro B updatable
KIT COMPONENTS
Not Shown: Radio Interface, LD-3010-PIO, AD-EU5, 40-GPS-PIO,
PR04AVIC-PIO / PRO4-PIORCA, LD-AX-SPK
Visit for more detailed information about the product and AxxessInterfaces.com
up-to-date vehicle specific applications.
WIRING & ANTENNA CONNECTIONS (sold separately)
•
RGB Extension Cable: Pioneer part # CD-
RGB150E
(not sold by Metra)
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
www.MetraOnline.com
MetraOnline.com may be used to assist with
dash assembly instructions. Simply enter your
Year, Make, Model vehicle into the vehicle fit
guide and look for the Dash Kit Installation
Instructions.
2

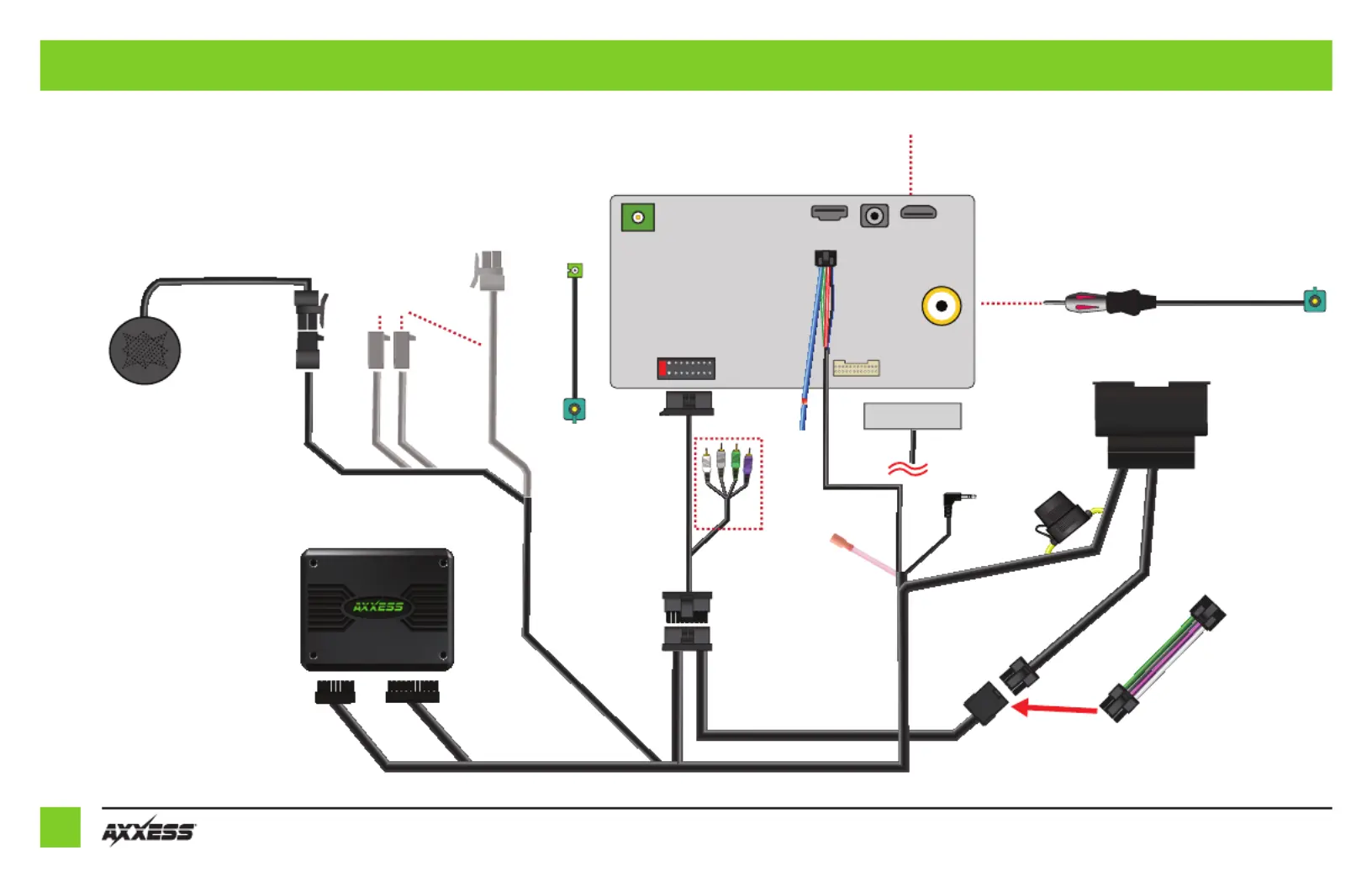

EXTERNAL SPEAKER
LD-AX-SPK
Pioneer Harness
LD-3010-PIO
CARSIDE CONNECTOR
MICRO-HDMI
ADAPTER NEEDED
(N/A)
CAN 2
CAN3
“TBA” WIRES
AD-EU5
AUX 3.5MM
High-Level
PRO4-AVIC-PIO
AXXESS INTERFACE PRO4-PIORCA
Low-Level
AUX (INCL. W/RADIO)
GPS 4-PIN MIC HDMI
ANT
18P (M)
18P (F)
16P 22P
40-GPS-PIO
10
NON-AMPLIFIED
IF AMPLIFIED..
USE EXTENSION
FUSE
STATUS
Important
:
Install the provided speaker
in the dash prior to assembling the
radio components
.
Note: Make sure this is mounted in a
location suitable for the driver to hea r.
(Audio level for the speaker can be
changed via the radio, once installed.)
NOT USED
EXT SPKR
CONNECTIONS
*
3
REV. 3/15/24 INSTAXPIOB-GM1

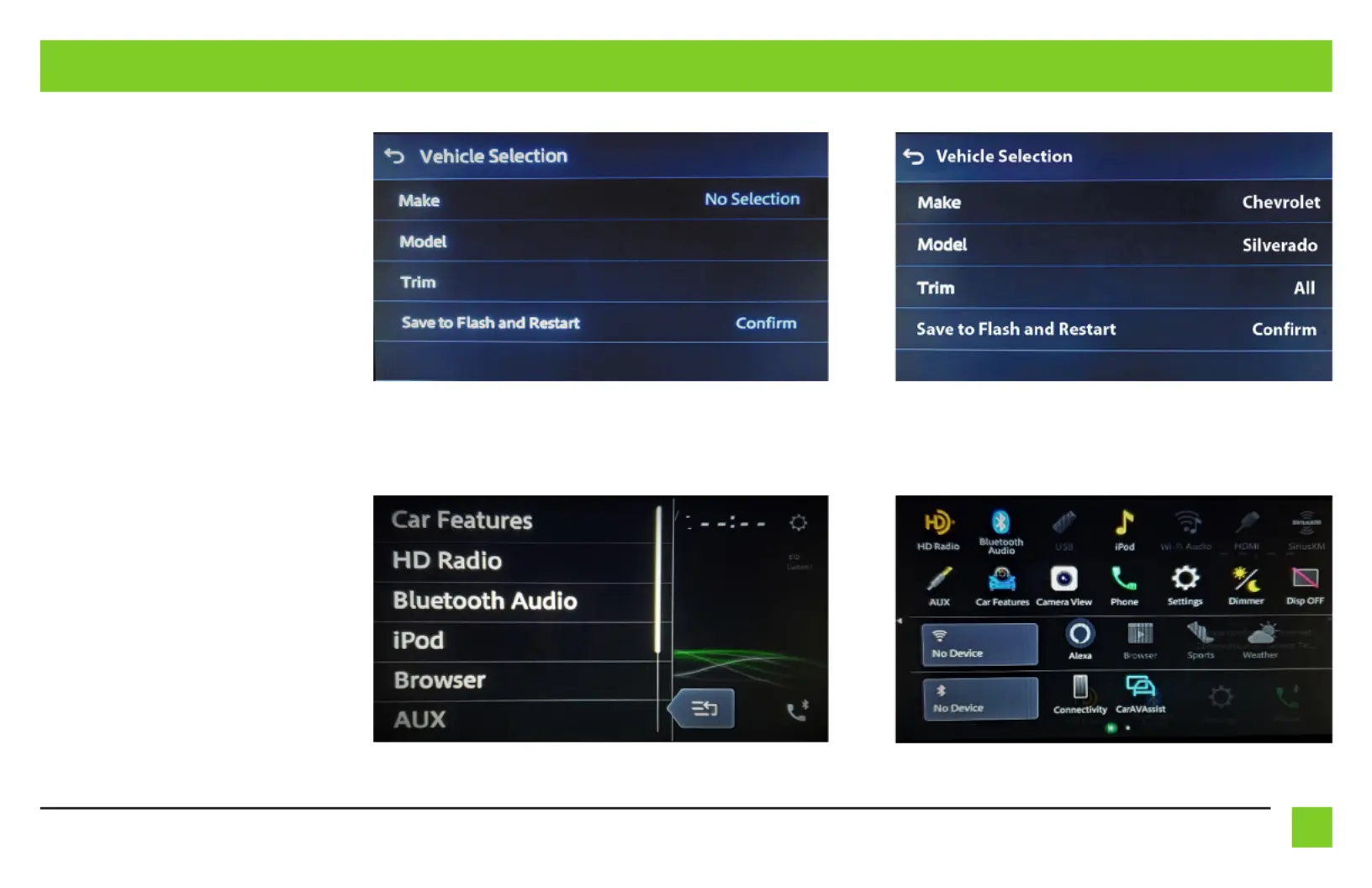

RADIO OPERATIONS
Vehicle Selection
• Allows the selection of the vehicle the
Pioneer radio is being installed in.
• Select Make, Model and Trim to activate
the extended functions of the radio.
• The vehicle type must be selected to
Car Features
The source for accessing all vehicle
information and options.
activate iPod, Bluetooth, backup cameras,
as well as HVAC functions and steering
wheel controls.
• Press Confirm to lock in the selection.
