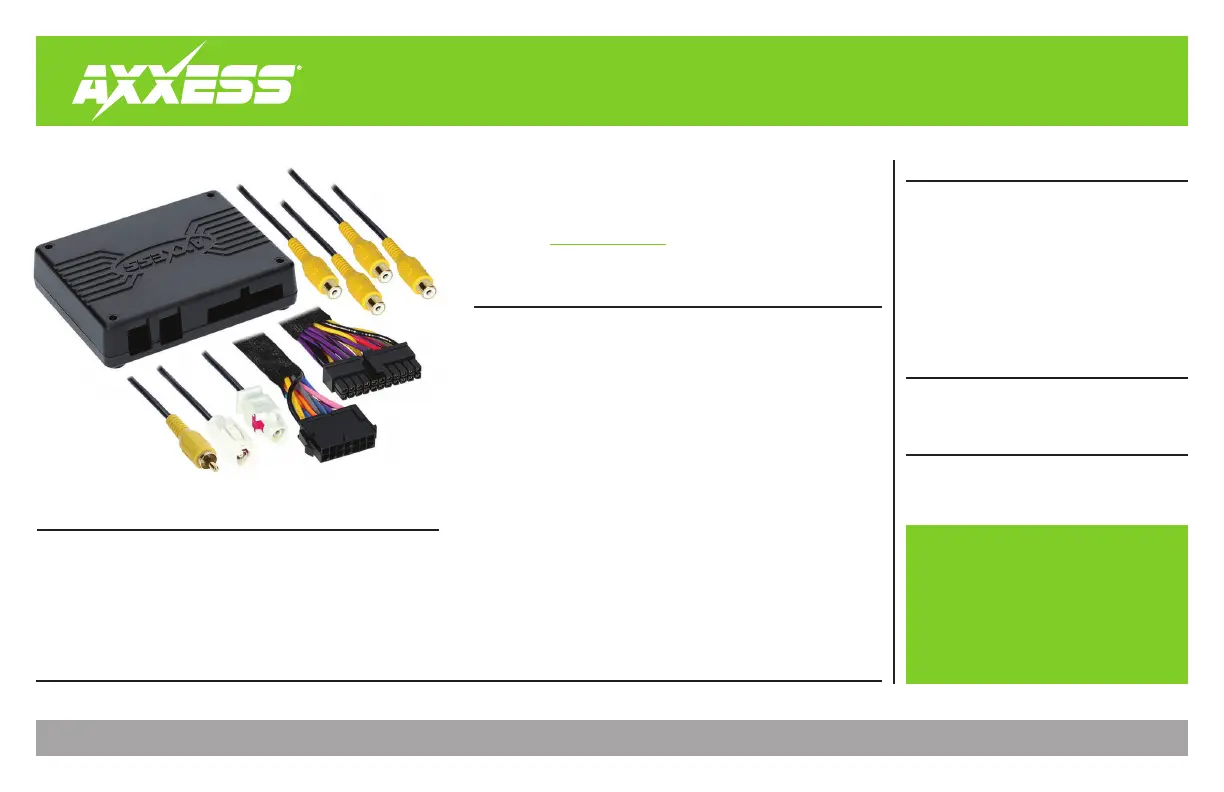

AXAC-CH7

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 7/9/25 INSTAXAC-CH7

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights,

are plugged in before reconnecting the battery or

cycling the ignition to test this product.

NOTE:

Refer also to the instructions included with

the aftermarket accessory before installing this device.

INTERFACE FEATURES

TOOLS REQUIRED

REQUIRED ITEMS

TABLE OF CONTENTS

Introduction ...........................................................2

Applications ...........................................................2

Configuration .....................................................2-4

Connections ............................................................5

Installation .............................................................6

Programming .........................................................7

Rebooting the U-Connect Radio ..........................7

• Add multiple CAN-activated cameras with 4 camera inputs

• Includes AXAC camera interface and vehicle-specific harness

• Programmable 12-volt 5-amp switched output (configured

through the Axxess Updater program)

• Reverse signal trigger generated via CAN bus communication

of the vehicle

•

Turn signal trigger generated via CAN bus communication of

the vehicle

• 1 programmable camera control wire (configured through the

Axxess Updater program)

• Can also be manually controlled and used along with an

aftermarket radio

• VSS (Vehicle Speed Sense) input and output

• Micro “B” USB updatable

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip ties

• AXAC-CH7 interface

• AXAC-CH7 interface harness

• AXAC-CH7 vehicle harness

Update Cable: AXUSB-MCBL (sold separately)

Axxess Updater Program

Camera Data Interface w/Pre-Wired Harness

Fits Select Jeep/Ram Models 2018.5-2023

APPLICATIONS

(see page 2)

Visit AxxessInterfaces.com for more detailed information

about the product and up-to-date vehicle specific applications

INTERFACE COMPONENTS
