AXTC-FD1

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/9/24 INSTAXTC-FD1

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & PARTS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

TABLE OF CONTENTS

Applications ...........................................................2

Connections ............................................................3

Programming .........................................................4

Troubleshooting.....................................................5

Ford/Mazda/Mercury SWC (Steering Wheel

Control) and Data Interface 2007-2022

APPLICATIONS

•

Provides accessory power (10-amp)

• Provides wires for multimedia

radios (park brake, reverse,

speed sense)

• Retains audio controls on the

steering wheel

• Designed to be compatible with

all major radio brands

• Auto detects vehicle type, radio

connection, and preset controls

• Ability to dual assign steering

wheel control buttons

• Retains memory settings even

after battery disconnection or

interface removal (non volatile

memory)

• Provides illumination output

• Micro-B USB updatable

• Includes 5V factory amplifier

step-down

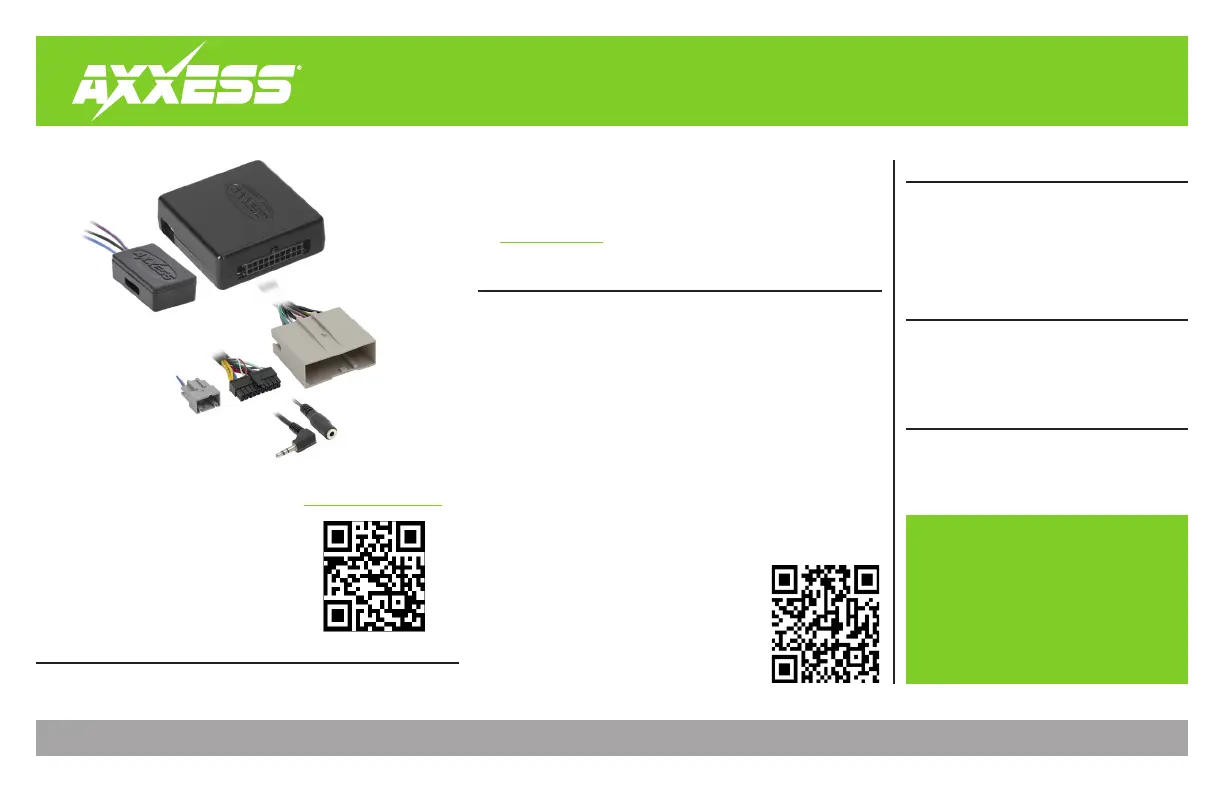

• AXTC-FD1 interface • AXTC-FD1 harness

• 3.5mm adapter

• LD-AFDI-5V amplifier step-down

See inside front cover

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

Visit AxxessInterfaces.com for more detailed information

about the product and up-to-

date vehicle specific applications.

Product Info

www.MetraOnline.com

MetraOnline.com may be used to assist with dash

assembly instructions. Simply enter your Year,

Make, Model vehicle into the vehicle fit guide and

look for the Dash Kit Installation Instructions.
