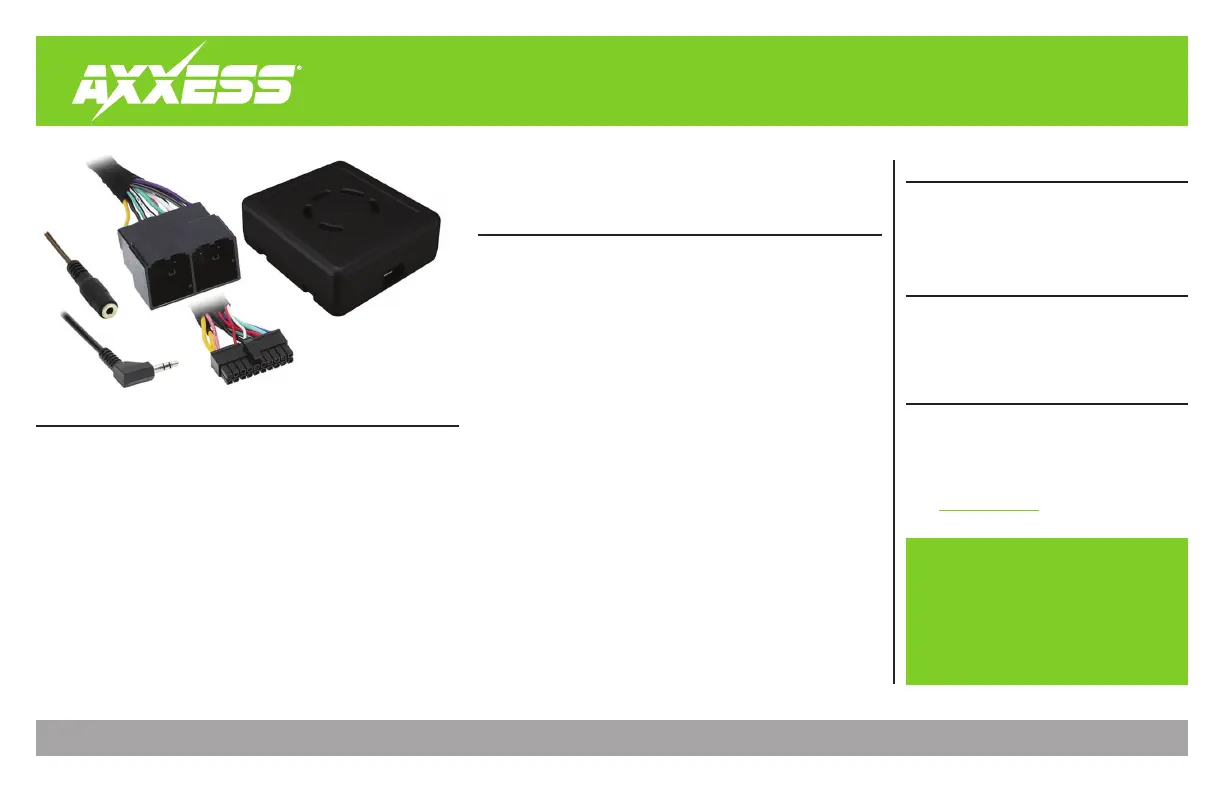

AXTC-LN30

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 3/14/23 INSTAXTC-LN30

Visit AxxessInterfaces.com for more detailed information

about the product and up-to-date vehicle specific applications

ATTENTION:

With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE:

Refer also to the instructions included with the

aftermarket accessory before installing this device.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

TABLE OF CONTENTS

Connections ............................................................2

Programming .........................................................3

Troubleshooting .....................................................4

GM Data Interface with SWC 2019-Up

APPLICATIONS

• Provides retained accessory

power (10-amp)

• Provides illumination, parking

brake, reverse, and speed sense

outputs

• Retains warning chimes

through an onboard speaker

• Retains audio controls on the

steering wheel

• Designed to be compatible with

all major radio brands

• Auto detects vehicle type, radio

connection, and preset controls

• Ability to dual assign steering

wheel control buttons

• Retains memory settings even

after battery disconnection or

interface removal (non volatile

memory)

• Designed for non-amplified

models, or when bypassing a

factory amplifier

• Retains balance and fade

• Micro-B USB updatable

Chevrolet

Blazer (1)** .............................2019-Up

Camaro (2)** ..........................2019-Up

Cheyenne (2)** ....................2019-2021

Colorado (2) ...........................2019-Up

Equinox (2)** .........................2019-Up

Malibu (3)** ...........................2019-Up

Silverado (2)** .....................2019-2021

Volt ................................................2019

GMC

Acadia (4)** ...........................2019-Up

Canyon (2) ..............................2019-Up

Sierra 1500 (2)** ..................2019-2021

Terrain (5)** ...........................2019-Up

Cadillac

XT4...........................................2019-Up

• AXTC-LN30 interface

• AXTC-LN30 harness

• 3.5mm adapter

(1) IOT or IOU code radio †

(2) IOS or IOT code radio †

(3) IOU or IOS code radio †

(4) IOU code radio †

(5) IOS, IOT, or IOU code radio †

** For extension, use AXEXH-GM30

† The radio code can be found in the Service Parts Identification Label located:

Glove box – Equinox/Terrain

QR only (see note) - Acadia/Blazer/Camaro/Canyon/Colorado/Malibu/Sierra/Silverado

Note: Newer model GM vehicles are transitioning to a QR style label. If the Service Parts

Identification Label is not located where listed, reference the Vehicle Certification Label

on the inside of the driver’s door opening for the QR code.
