Backyard Discovery Caribbean Bedienungsanleitung
Backyard Discovery
Spielzeug
Caribbean
Lies die bedienungsanleitung für Backyard Discovery Caribbean (118 Seiten) kostenlos online; sie gehört zur Kategorie Spielzeug. Dieses Handbuch wurde von 2 Personen als hilfreich bewertet und erhielt im Schnitt 4.9 Sterne aus 1.5 Bewertungen. Hast du eine Frage zu Backyard Discovery Caribbean oder möchtest du andere Nutzer dieses Produkts befragen? Stelle eine Frage

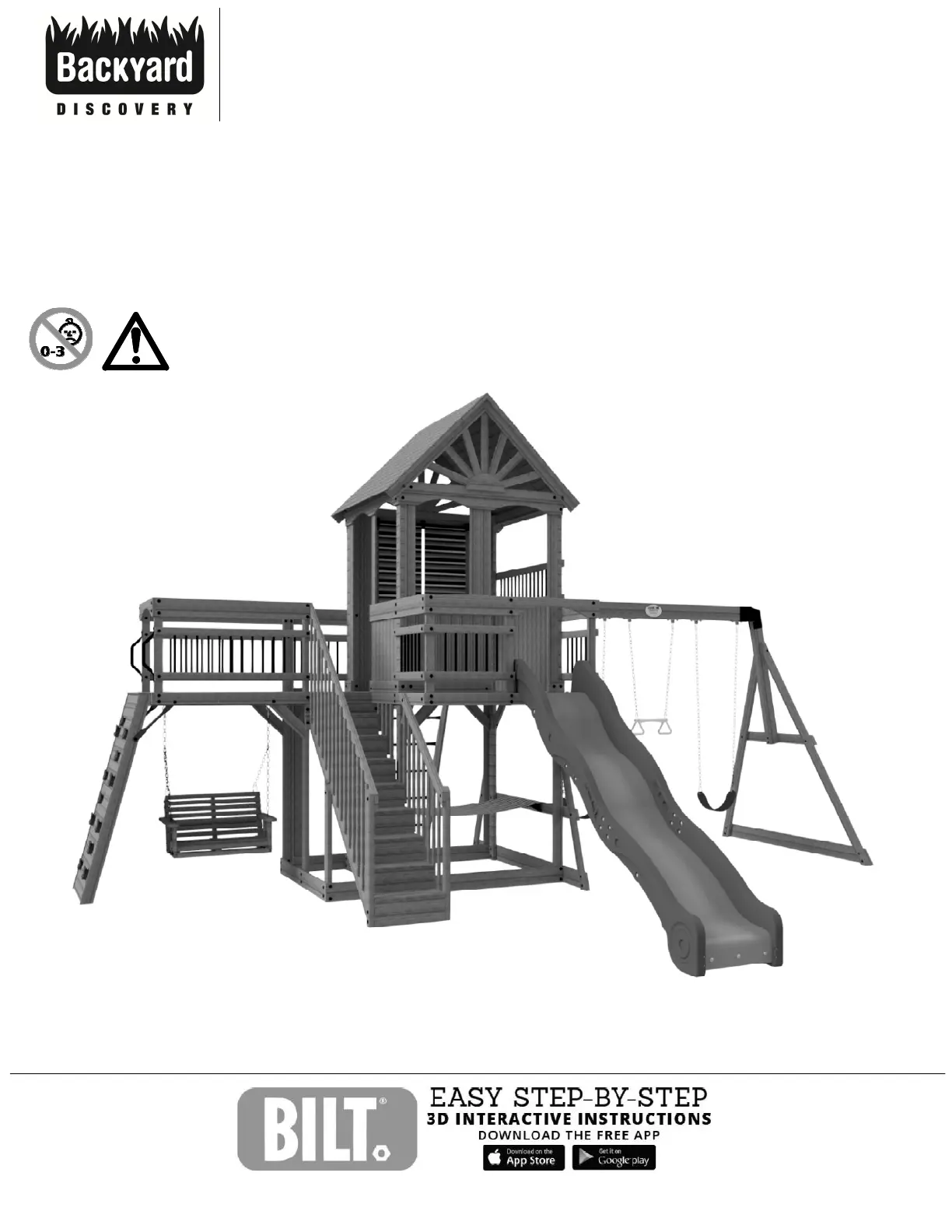

Seite 1/118
Made in China
INS-1606029-A-CARIBBEAN-ENG 08/10/23
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your set, or to order replacement parts
Para obtener instrucciones en español, visite www.backyarddiscovery.com
Model # 1606029
CARIBBEAN
MANUFACTURED BY:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Swing Set
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 0800-567-8990
WARNING
Adult Assembly Required.
Not suitable for children under 36 months due to small parts.
FOR DOMESTIC USE ONLY. INTENDED FOR OUTDOOR USE.
The assembly manual must be retained
since it contains important information
Important Assembly Notes
1) While assembling unit, take time before and after each phase to make sure fort is level. If fort is
not level, assembly will be difficult and improper assembly may result. Extra care must be taken to
ensure the fort is square.
2) Tighten bolts securely, tighten nuts on bolts flush to the tube or member.
3) Pay close attention to the ITEMS NEEDED FOR EACH PHASE. They can be a valuable aid when
sorting your wood and hardware. Assembly will be made easier if items are sorted by phase.
4) Pay close attention to make sure you are using the correct hardware in the correct phases. Using
incorrect hardware may result in improper assembly.
5) Whenever a T-nut is used, follow these directions. Place T-nut in pre-drilled hole. Tap in with hammer.
Place bolt with washers in the opposite side. Hand tighten to make sure the bolt is in the T-nut.
DO NOT over tighten.
6) Read the steps of each phase thoroughly. The written steps may include important information not
shown in the illustrations.
Basic Setup Dimensions
Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such
as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.
Safe Play Zone
Safe play height: 18'-5" [5.6 m]
Maxim
um fall height: 6'-8 1/2" [2 m]
General Information:
Your set has been designed and engineered for
children only and for residential use only.
A maximum of 150 lbs. per child is recommended for
play activities designed for individual use.
A maximum of 120 lbs. per child is recommended for
play activities designed for multiple child use.
A maximum of 9 children is recommended for this
swing set.
20'-6 1/2"
[6.3 m]
6'
[1.8 m]
6'
[1.8 m]
16'-5 1/2"
[5 m]
28'-5 1/2"
[8.7 m]
32'-6 1/2"
[9.9 m]
12'-4 1/2"
[3.8 m]
6'-8 1/2"
[2 m]
