Flipper-36
36”Conference Table
Assembly Instructions
2

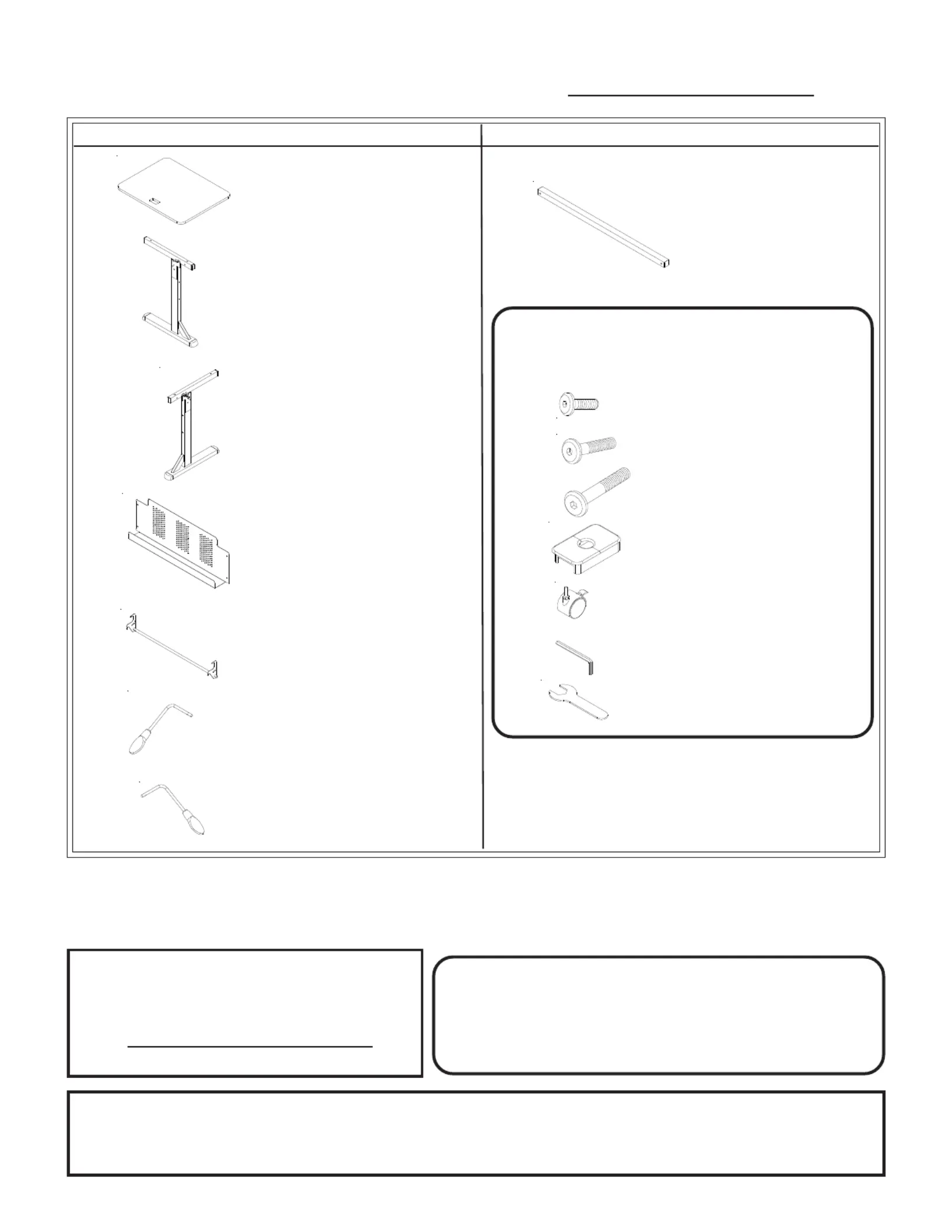

P1 Top Platform 1 EA
P2 Left Leg 1 EA
P3 Right Leg 1 EA
P4 Metal Stability Panel 1 EA
P5 Welded Rod Assembly 1 EA
P6 Left Side Handle 1 EA
P7 Right Side Handle 1 EA
Part Drawing Description Qty
Part Drawing Description Qty
36” Conference Table
#89870 Flipper 36
We recommend that you assemble this
unit on a table.
Do not use unless all screws are tight. At least every six months, check all screws to be sure
they are tight. If parts are missing, broken, damaged, or worn, stop use of the product
until repairs are made by your dealer using factory authorized parts.
Should you require assistance during assembly,
please call our Customer Service Department
Monday - Friday 8 a.m. - 5 p.m.
Central Standard Time 1-800-749-2258
Missing Parts or UPS Damaged Parts
For Your Convenience you can
EMAIL us at
furniture@baltinc.com
24HOURS 7 DAYS A WEEK
(with Spring)
Hardware List
A 9/16” Socket Screw 4 EA
A1 1-3/8” Socket Screw 2 EA
B 1-7/8” Socket Screw 4 EA
C Plastic Grommet 1 EA
D 2” Locking Caster 4 EA
E Allen Wrench 1 EA
F Caster Wrench 1 EA
P8 Crossbrace 1 EA
3
Flipper-36
Assembly Diagram
1.)
2.)
R
EAD
T
HROUGH
I
NSTRUCTIONS
FROM
BEGINNING
TO
END
BEFORE
STARTING
TO
ASSEMBLE
UNIT
.
3.)
Identify and Separate all the Parts and Hardware.
Slide the Right Side Handle (P7) Through the Right Leg (P-3) and into the Welded Rod (P5) as
shown in illustration #1. Rotate Right Side Handle (P7) until holes are aligned
(See illustration#1). Secure using 1 Screw (A).
Slide the Left Side Handle (P6) Through the Left Leg (P-2) and into the Welded Rod (P5) as
shown in illustration #1. Rotate Left Side Handle (P6) until holes are aligned
(See illustration #1). Secure using 1 Screw (A).

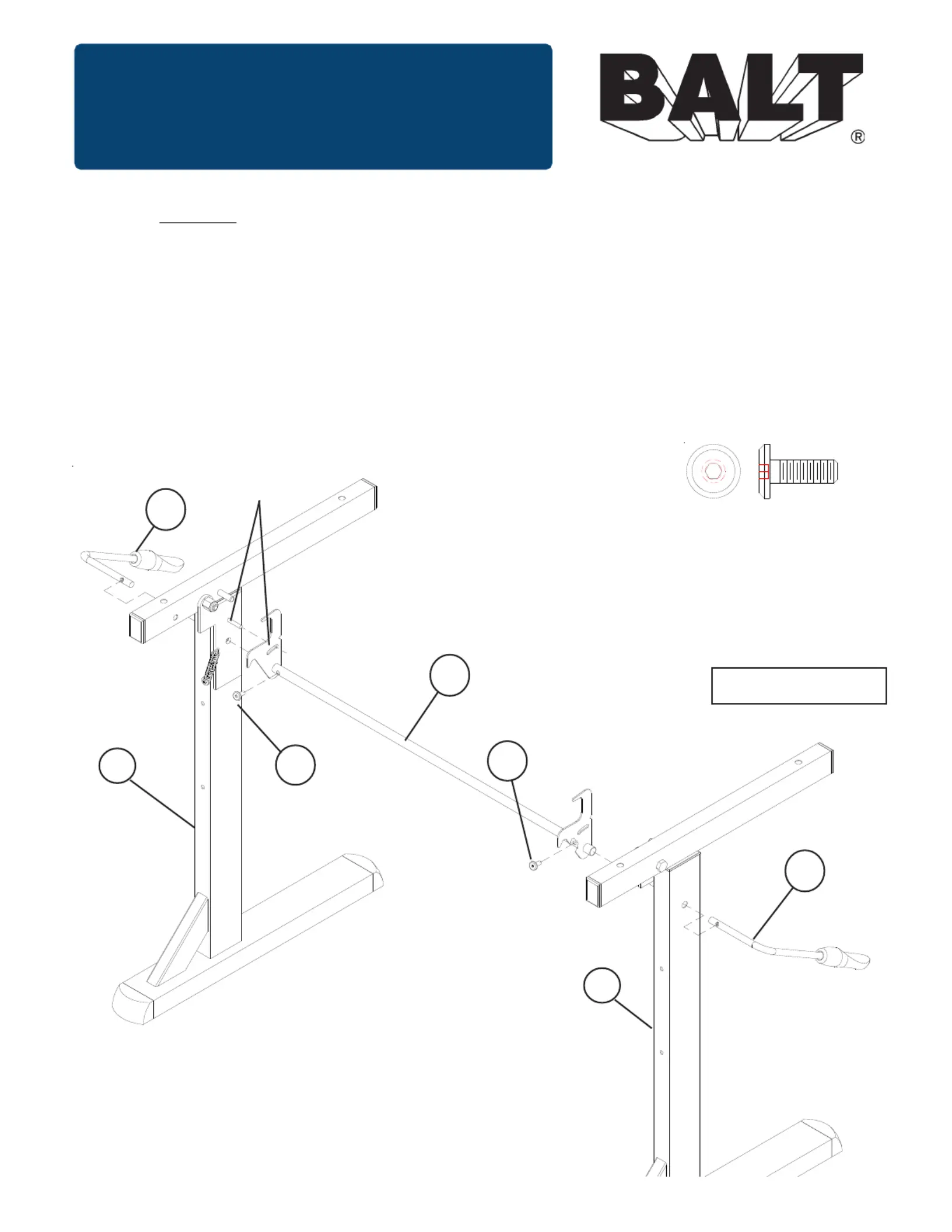

Illustration # 1
A
P5
A
P7
P6
P3
P2
Be sure that Pin is inserted
through slot.
(A) Screw M6 X 9/16”
For Scale only
