Remove fuse from 6 ft power cable (12). Attach the red wire to the positive battery terminal. Attach the black wire

to the negative battery terminal. Run power cable to the location of the BPB24. making sure power wire does not

hinder the safe operation of the vehicle. Plug the red power cable end into the BPB24’s red input power plug. The

black 12vdc accessory plug can be used to power any 12vdc accessory up to 15 amps. Use the included black

accessory pigtail (11) to wire your accessories.

1. Party Bar (BPB24, BPB24-DS, or BPB36) 1 ea.

2. Optional Mounting Bolt 6mm 4 ea.

3. Mounting Leg 2 ea.

4. Rubber Vibration Insulation Pads 2 ea.

5. Socket Head Cap Screw 8mm X 12mm 2 ea.

6. Low Profile Socket Head Cap Screw 6mm X 12mm 2 ea.

7. Socket Head Cap Screw 6mm X 30mm 2 ea.

8. Narrow Washer 6mm 4 ea.

9. Nylon Insert Locking Nut 6mm 2 ea.

10. Stud 6mm x 40mm 2 ea.

11. Accessory Pigtail 1 ea.

12. Power Cable 6 ft. 1 ea.

IMPORTANT NOTICE:

The internal RF circuit for the remote control will draw a small amount of current because it must always be ON

listening for the remote commands. Over time this could draw down your battery when your machine remains in

storage without being connected to a charger or not being actively used. For this reason, we recommend

connecting the Party Bar to a switched master power source or disconnecting the main power wire when the

machine is in storage. We also make a plug & play inline 12v master power switch that can be easily added to the

main battery wire for the Party Bar to completely kill power to the unit. It is listed under the Accessories tab on the

Party Bar product page on our website (Model number: PR-ILS16)

When using the Intergrated Mounting Rail System,

first determine your mounting stud spacing then screw

the 6mm X 40mm studs (10) into themounting nuts. Mark

your desired spacing onto theflat surface to which you are

mounting. Use a 1/4” or 7mm drill bit to drill mounting holes.

Mount the Party Bar to your mounting surface using the 6mm

washers (8) and 6mm nylon locking nuts (9) provided in

hardware kit. You can also use our optional PR-URM, PR-FRC175,

and PR-FRC200 clamps (sold separately) to mount to round

tubbing. When mounting the bottom half of the clamps to

the Party Bar, you will need to use the 2 ea. 6mm X 12mm low

profile socket head cap screws. (6)

Use the 8mm X 12mm bolts (5) to attach

the mounting legs. Mounting legs (3) can

be installed in ether direction depending

on space constraints. When mounting with

opional clamps (PR-URM, PR-FRC200, and

PR-FRC175) use the hex bolts provided with

the clamps to mount the bottom half of the

clamps to the mounting legs.

PR-FRC200

2” Clamp

PR-FRC175 1.75” Clamp

PR-URM 2” - 1.5” Clamp

Warning:

If you are using the cast aluminum mounting legs to secure the Party Bar to your machine, the mounting legs must

FIRST be attached and tightened to the Party Bar before mounting it to your machine. Attaching the legs to the

machine first and then inserting the Party Bar between them can cause misalignment, spacing, and torque issues

that can causedamage to the mounting assembly resulting in a failure.

Intergrated Mounting Rail Options

See Warning Below!

End Mounting Options

with Cast Aluminum Legs

BPB24 / BPB24-DS

BPB36

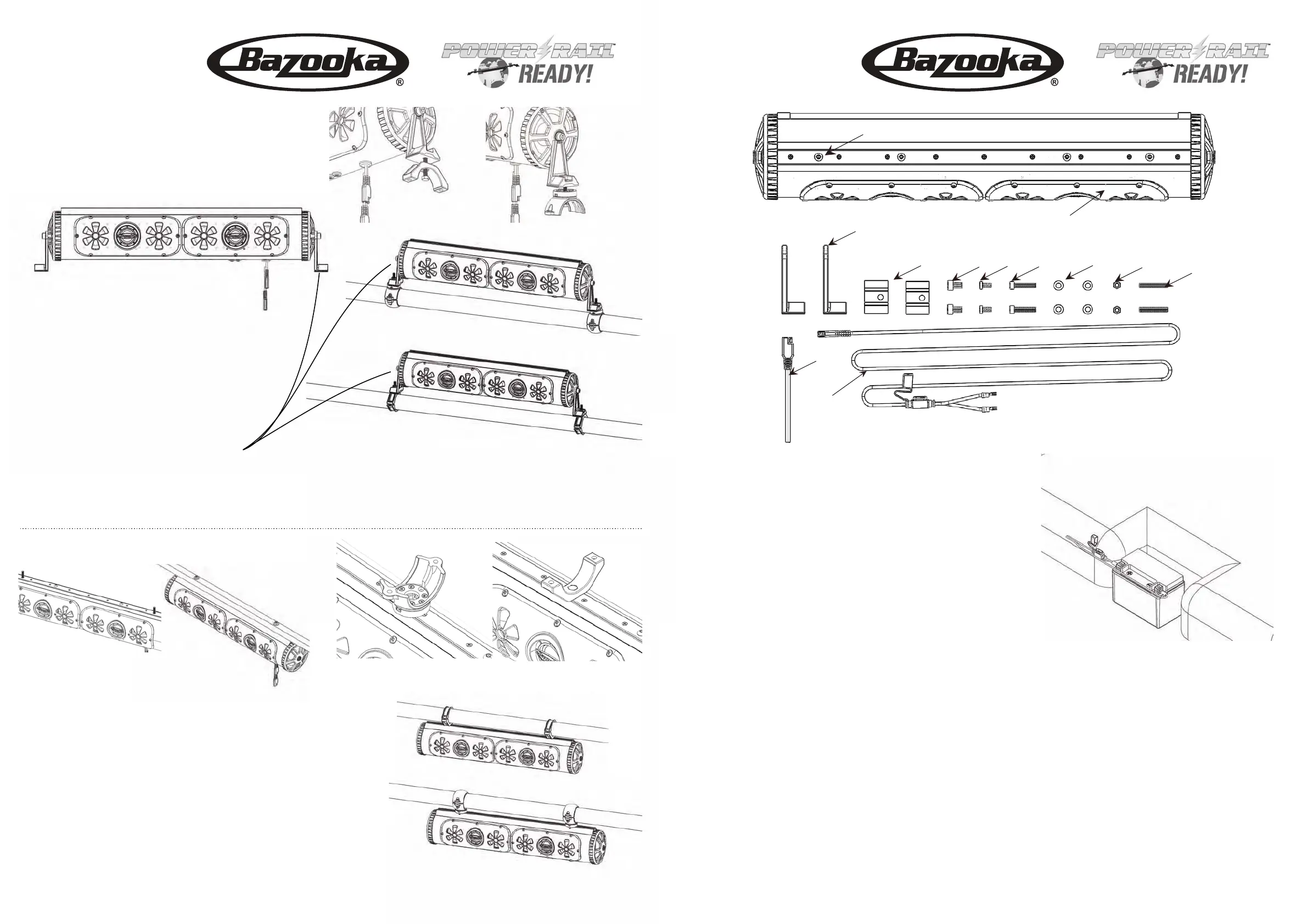

Installation Instructions

Rev.12/12/2016 Pg. 1

Rev.12/12/2016 Pg. 4

BPB24 / BPB24-DS

BPB36

Installation Instructions

PR-FRC200 2” Clamp

PR-FRC175 1.75” Clamp

PR-URM 2” - 1.5” Clamp
