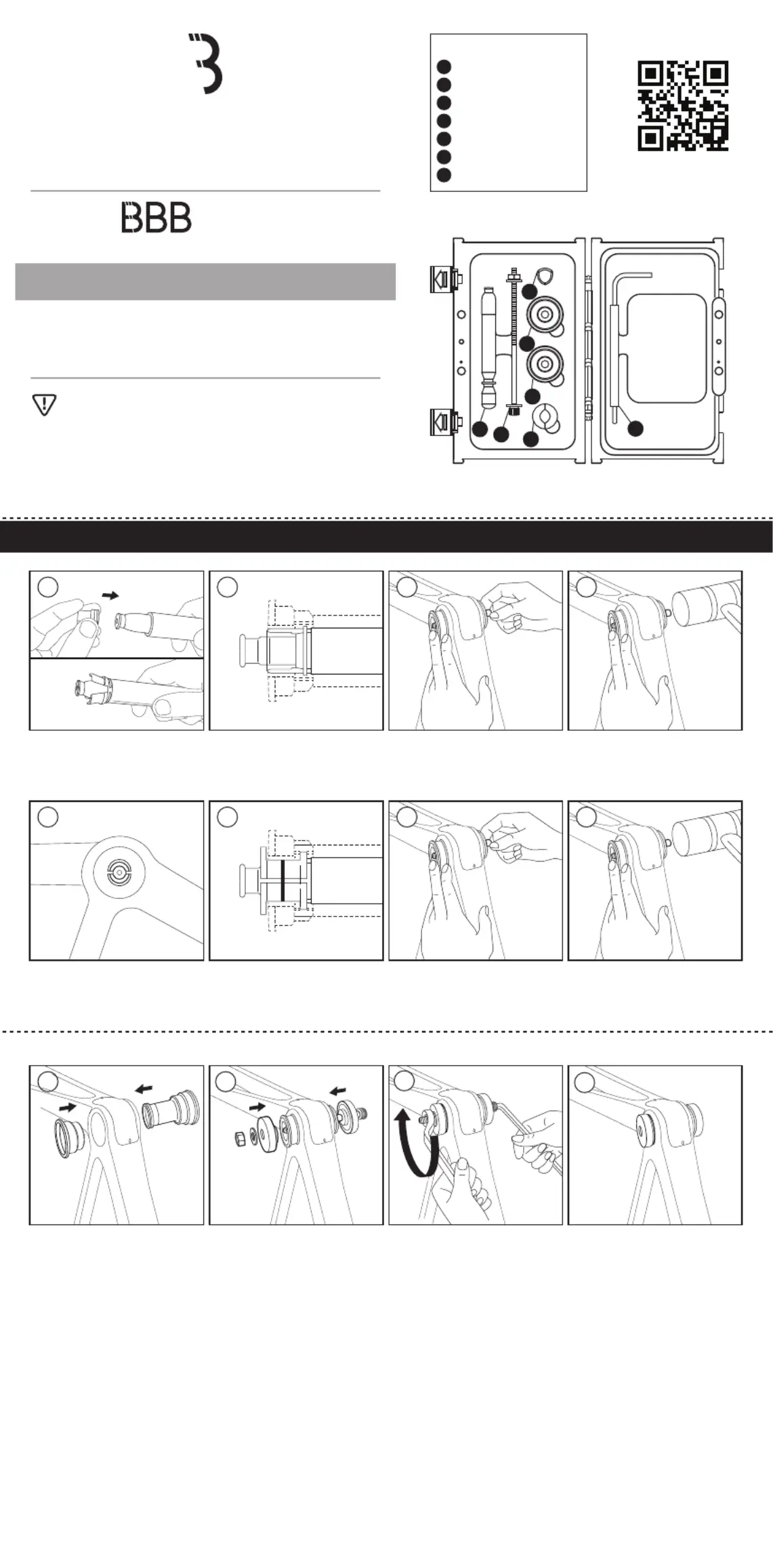

INSTALLATION

Insert the bottom bracket.Insert the installation pin and ⑥

bearing guides or . Be sure to ③④

use the correct bearing guide

diameter.

Use a wrench and the BTL-13

Hexagon 8mm hex key to press ①

fit the bottom bracket. The

bottom bracket should stay

parallel to the frame.

Make sure there’s no space

between the frame and bottom

bracket.

ENGLISH

2

3

4

5

6

71

FIND YOUR TRANSLATION

ON BBBCYCLING.COM

ENDEFRNLESPT MANUAL / HANDBUCH / MANUEL / HANDLEIDING / MANUAL / MANUAL /

ITHUPLCZ MANUALE / HASZNÁLATI UTASÍTÁS / / PODRĘCZNIK UŽIVATELSKÁ PŘÍRUČKA

/ MANUÁL / JP使用説明書/RUРУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ / SKNOHÅNDBOK

BBB CYCLING.COM

ROO SEVELTSTRAAT 46, 2321 BM

LEIDEN. THE NETHERLANDS

WARNING

Sold only by professional bicycle dealers.

For proper installation, ask your BBB dealer.

Not following the instructions in this manual may

cause damage to the product not covered under

warranty, damage to the bicycle, or cause an

accident resulting in injury or death.

BBB has no responsibility for misprints or changed technical content.

COMPONENTS:

BTL-13 Hexagon, 8mm

Collet, 24mm

Bearing guide A

Bearing guide B

Collet, 30mm

Installation pin

Extraction pin

5

6

2

3

4

1

7

ABC

BRACKETKIT

/BTL-95

TOOLBOX

D

Place the 24mm collet on the ②

narrowest side of the extraction

pin . ⑦

Push the extraction pin through⑦

the bottom bracket.

Use your fingers to prevent the

collet from coming out of the ②

bottom bracket. Make sure the

extraction pin and collet are ⑦

placed correctly.

Use a hammer to extract the

bottom bracket. You should

hammer the convex side of the

extraction pin .⑦

ABCD

EXTRACTION: 24MM SPINDLE

Place the 30mm collet on the ⑤

bearings inside the bottom

bracket.The complete flat side

should be on the outside.

Push the extraction pin through⑦

the bottom bracket and collet .⑤

Make sure the collet falls over ⑤

the bottom bracket and the

extraction pin is placed ⑦

correctly.

Use a hammer to extract the

bottom bracket. You should

hammer the convex side of the

extraction pin ⑦. Use your fingers

to prevent the collet from ⑤

coming out of the bottom bracket.

C

ABD

EXTRACTION: 30MM SPINDLE
