Seite 1/4

JB90R MINI STAR BALL

153. 222 V1.2

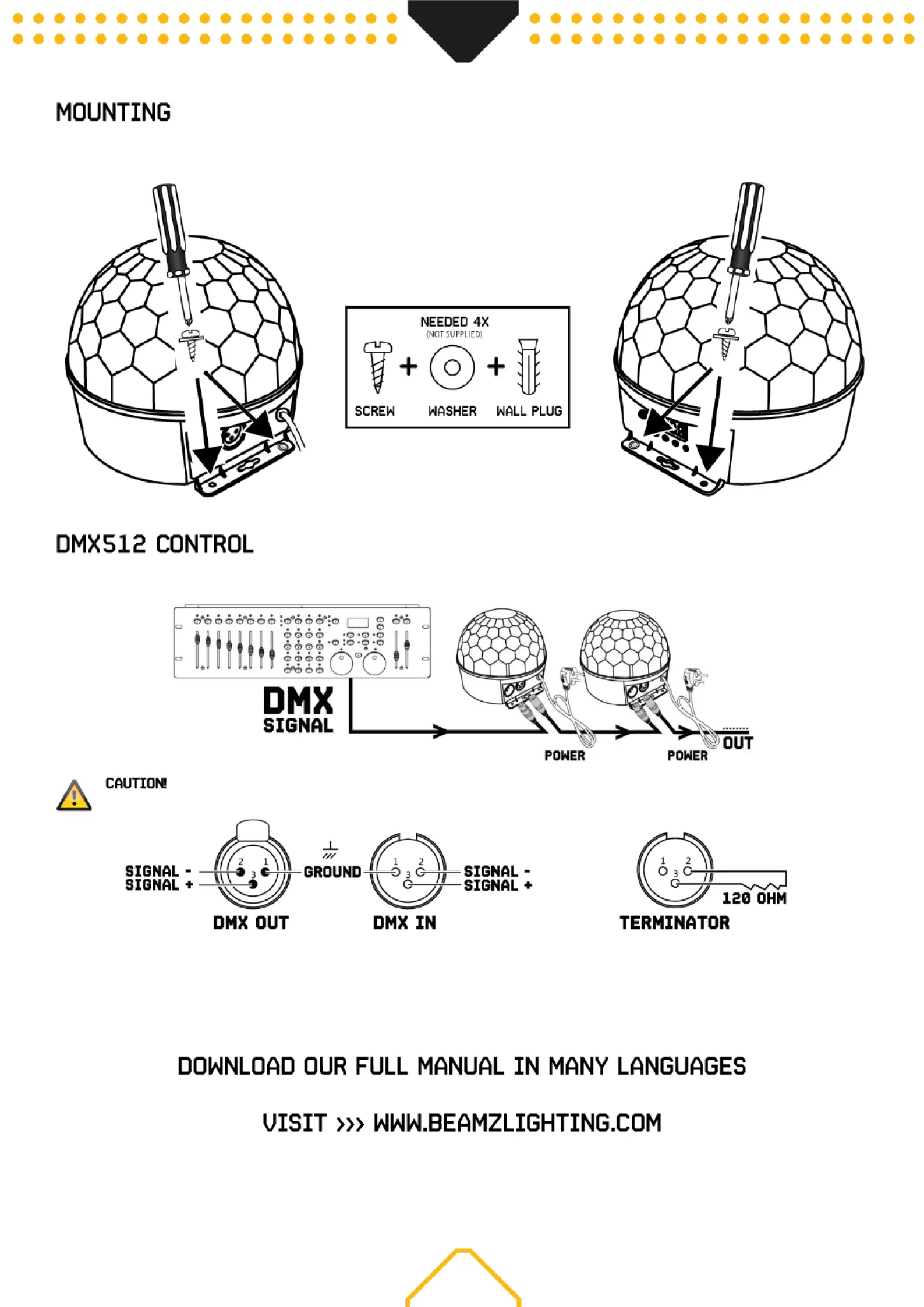

The mounting place must be of sufficient stability and be able to support a weight of 10 times of the unit’s weight. Secure the unit with a safety cable so

that it cannot fall down.

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain.

Always connect the output of one unit with the input of the next unit until all units are connected.

At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor

between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.

Standby

DMX mode ON / OFF

Pause tart auto program or sound program /S

Sound program S1

Sound program S2

Sound program S3

Strobe ON/ OFF

Auto program, chose A1, A2, A3, A4, A5, A6, A7

Increase or decrease speed

The remote control is supplied with a battery inserted. An insulating

foil between the battery and the battery contacts prevents the battery from being

discharged during storage. Prior to the first operation remove the foil from the

battery support on the rear side of the remote control. Otherwise operation of the remote

control is not possible.

For operation, one 3 V button cell type CR 20 is required. When inserting, pay attention 25

that the positive pole of the button cell shows upwards in the support.

DMX address setting

Red + Purple+ Warm White mode

Green + Blue + Pink mode

Yellow + White + Orange mode

All colours, speed slow to fast

3 Colours jumping effect, speed slow to fast

9 Colours jumping effect, speed slow to fast

9 Colours gradually effect, speed slow to fast

Strobe

Sound control mode 1 light reacts on the sound motor runs continuously , ,

Sound control mode 2, colour change, motor speed fast

Sound control mode 3, colour change, motor speed slow

DMX CHANNELS

Master dimmer

000- 255

Total brightness gradually from darkness to brightness

Colour

000- 255

Red + Purple + Warm White led dimming, from 0-100%

000- 255

Green + Blue + Magenta led dimming, from 0- 100 %

000- 255

White + Yellow + Orange led dimming, from 0- 100 %

Strobe

000 009-

No function

010- 255

Strobe flash, from slow to fast

Motor

000 005-

Stop

006- 127

Random speed

128-255

Speed, from slow to fast

Program

000 009-

Auto colour program

010 072-

Auto colour gradually change

073- 134

Auto colour jump changes

135-197

RGB jump changes

198- 220

Sound control mode 1

221 250-

Sound control mode 2

251 255-

Sound control mode 3

Produktspezifikationen

Marke:	BeamZ
Kategorie:	Beleuchtung
Modell:	JB90R
Display-Typ:	LCD
Breite:	180 mm
Tiefe:	180 mm
Produkttyp:	Disco-Strahler
Produktfarbe:	Mehrfarbig
Höhe:	150 mm
Energiequelle:	AC
Eingebautes Display:	Ja
Lampentyp:	LED
Ein-/Ausschalter:	Ja
Anzahl der Farben:	9 Farben
Eingangsspannung:	100 - 240 V
Für die Nutzung im Innenbereich geeignet:	Ja
Lichtfarbe:	Multi
Beleuchtungsarten:	Auto, DMX, Master/slave
Anzahl der DMX-Kanäle:	7 Kanäle
Strahlungswinkel:	120 °
DMX-Eingang:	Ja
DMX-Ausgang:	Ja
Eingangsfrequenz:	50 - 60 Hz
Kugeldurchmesser:	- "
