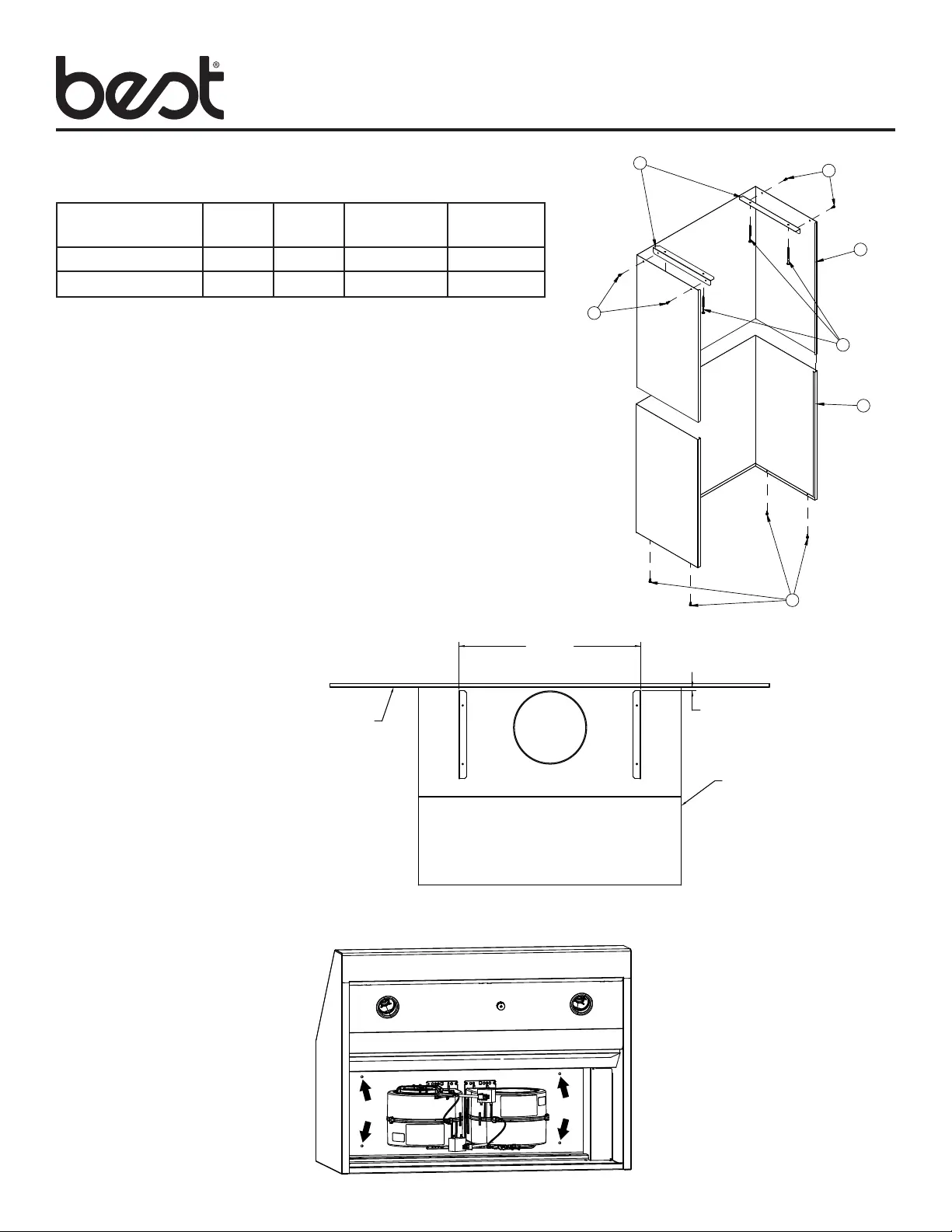

MODEL AEWPD

AEWPD Telescopic Flue Cover for use with WPD38I and WPD39M

Series Outdoor Range Hood.

Model Length Width Collapsed Maximum

Height Height

AEWPD3054SB 13” 25” 30” 54”

AEWPD3054SBE 16” 25” 30” 54”

This Kit Contains:

1. (1) Telescopic Flue Cover Bottom

2. (1) Telescopic Flue Cover Top

3. (2) Mounting Brackets

(1) Hardware Bag (Service Part S97019391) Including:

4. (4) #10 x 2” Screws

5. (8) # 8 x 3/8” Screws

Follow hood installation manual steps 1-9 prior to installing

Telescopic Flue Cover, and steps 11-12 to nalize hood

installation.

4 TOTAL

5

5

3

4

2

1

5

24-3/4"

CENTER BRACKETS

WITH CENTER OF HOOD

BOTH BRACKETS

2" FOR AEWPD3054SBE

1/2" FOR AEWPD3054SB

TOP VIEW OF HOOD

HOOD

WALL

Step 1:

Remove protective coating from

Telescopic Flue Cover. Be careful

not to scratch surface of stainless

steel.

Step 2:

Fasten Mounting Brackets (Item 3)

to ceiling using dimensions shown

and (4) #10 x 2” Screws (Included

Item 4). Screws must be fastened

into building structure.

Step 3:

Fasten Telescopic Flue Cover to

Hood using: (4) # 8 x 3/8” Screws

(included Item 5). Arrows show hole

locations on Hood. Hand tighten

screws only.

Step 4:

Extend Telescopic Flue

Cover and fasten to

Mounting Brackets (Item 3)

with (4) # 8 x 3/8” Screws

(Included Item 5).
