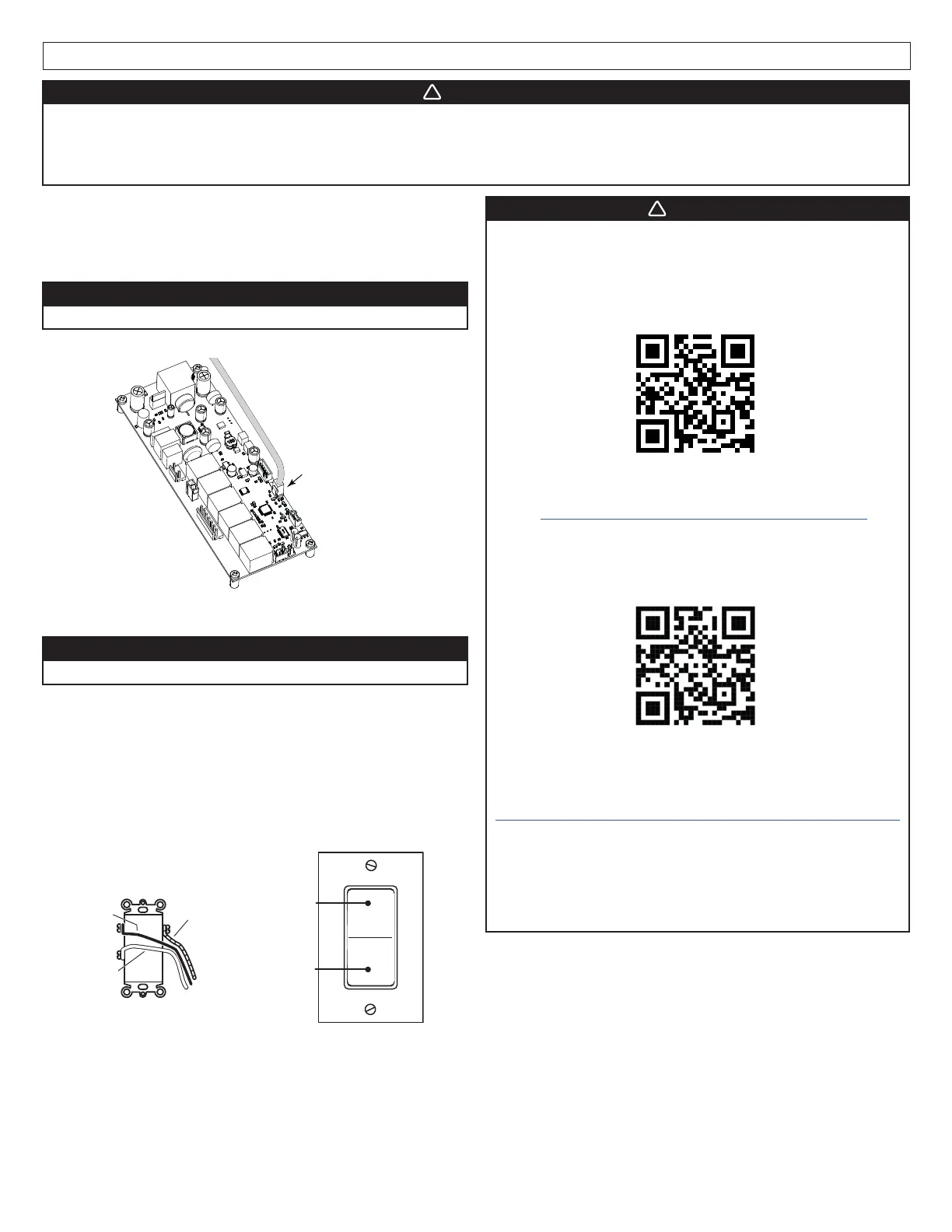

HAWRK5 ADA WIRING KIT

WARNING

!

For residential (domestic) installation only. Before proceeding, switch power off at service panel and lock service

disconnecting means to prevent power from being switched on accidentally. Installation work and electrical wiring

must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated

construction codes and standards.Also, it is recommended to wear safety glasses and gloves.

BRemove and set aside the filter(s).

CRemove the plate covering the access to the control board.

DInstall the ferrite on the shortest cable, close to the control board.

Make 3 loops with the cable wire before closing the ferrite.

CAUTION

Only use included switch, ferrite and cables.

EConnect the small cable to J10 connector on the control board.

NOTE: Please refer to the detailed instructions for your model. They

can be obtained using the appropriate QR code.

CAUTION

Avoid placing the ferrite over the control board.

FReinstall the plate covering the access to the control board.

GFrom outside the unit, insert the end with connector of the

included long cable inside the unit. Connect the long cable to the

small cable inside the unit.

HRun the other end (without connector) of the long cable to a

convenient place for the switch location. Install the included rocker

switch and wire it to the unit using below diagram.

WARNING

We strongly recommend to use the detailed instructions

for the hood you are installing. To access the appropriate

HAWRK5 ADA wiring kit installation instructions, please

for Broan and Broan Elite models, scan the QR code

below:

OR

Go to htpps://www.broan-nutone.com/hawrk5-insh and

enter your unit model.

For Best models, scan the QR code below:

OR

Go to

htpps://bestrangehoods.com/hawrk5-installation-guide

and enter your unit model.

OR (for either Best, Broan or Broan Elite models)

To obtain a paper copy of the detailed instructions,

please call us:

In U.S.A.: 1-800-558-1711 - In Canada: 1-800-567-3855

1110073A

J10

!

Motor

control

Light

control

MOMENTARY

NORMALLY OPEN

CONTACT SWITCH

(back view)

WHITE

(B1)

LONG CABLE

TO UNIT

RED

(L1)

BLACK

(A1)
