Operating and Installation Instructions
ACTIVE SUBWOOFER
with DSP XLf 210150 AD
Disclaimer
•
•
Voltage Supply
•
•
•
•
Compatible PC OS
•
•
Scope of Delivery
•
•
•
•
•
•
•
•
Disposal Notes
Under no circumstances shall Blaupunkt be held
liable for any direct, indirect punitive, incidental,
or special consequential damages, whether
related to property or life, arising out of or
connected with the use or misuse of our
products, including but not limited to issues of
improper storage.
US & Canada: This product is not intended for
sale in the United States and Canada. If acquired
in the U.S or Canada, it is obtained on an “as-is”
basis. No warranty, whether express or implied,
is provided in the U.S and Canada.
+12V : Positive connection terminal for car 12V
power supply.
GND : Power supply negative connection
terminal.
Firmly and carefully connect the ground lead to
a bare metal point ont he vehicle chassis.
Operation temperature : 0° - 70°C
PC - with or higher than Windows XP
Mobile Phone - Android 5.0 or higher
- iOS 12.0 or higher
Active Subwoofer with DSP (347 x 262 x 73mm)
3.0m Wired Remote Controller
1.5m USB Cable
4 x Screws (Parker-Type) : 4 x 20mm
8 x Screws (M-Type) : 4 x 5mm
4 x Mounting Bracket A : 40mm x 19mm
1x Power Cable
1x High Level Input Cable
This device has been manufactured a ording to cc
established safety guidelines. However, dangers may
still occur if the safety notes in this manual is not
observed. This manual is intended to familiarize the
user with the device’s important functions. Read this
carefully, prior to using the car radio. Keep this manual
in an easily a essible location. In addition, do observe cc
the instructions of other devices used in conjunction
with this device.
Installation Safety Notes
Always observe the following safety notes:
•
•
•
•
•
•
•
General Safety Notes:
Observe the following for protection against injuries:
•
Device must be used in a way that compliments
safety of the user when driving the vehicle. It is
recommended for the user to install at an ap-
propriate location when operating the device.
While driving, user is not recommended to use
applications that can be prone to distraction.
Before installation, disconnect the negative ter-
minal of the battery. Refer to the safety vechicle
manufacturer’s user manual.
Ensure positions of the holes are nowhere near
the vehicle component to avoid any damage
during drilling.
Ensure corss section of the cables i no less than
2.5mm if the positive and the negative cables
are too long. incorrect installation may result
in malfunction of the device or the car sound
system.
Select a dry and well-ventilated location to
install the device.
The device must not be installed in overly
exposed location.
The installation location must be suitable for
screw holes and stable ground support
User is advised to keep the volume of the car
radio to a moderate level for the protection of
the ears and to increase the ability to hear any
emergency warning signals (e.g. police and
ambulance sirens). Do not increase the car radio
volume while the car radio is muted as it is not
audible. The car radio volume can be too loud
when the car radio is unmuted.
1
INTRODUCTION
Do not dispose of your old unit in the
household trash!
Use the return and collection systems
available to dispose of the old device.
2
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

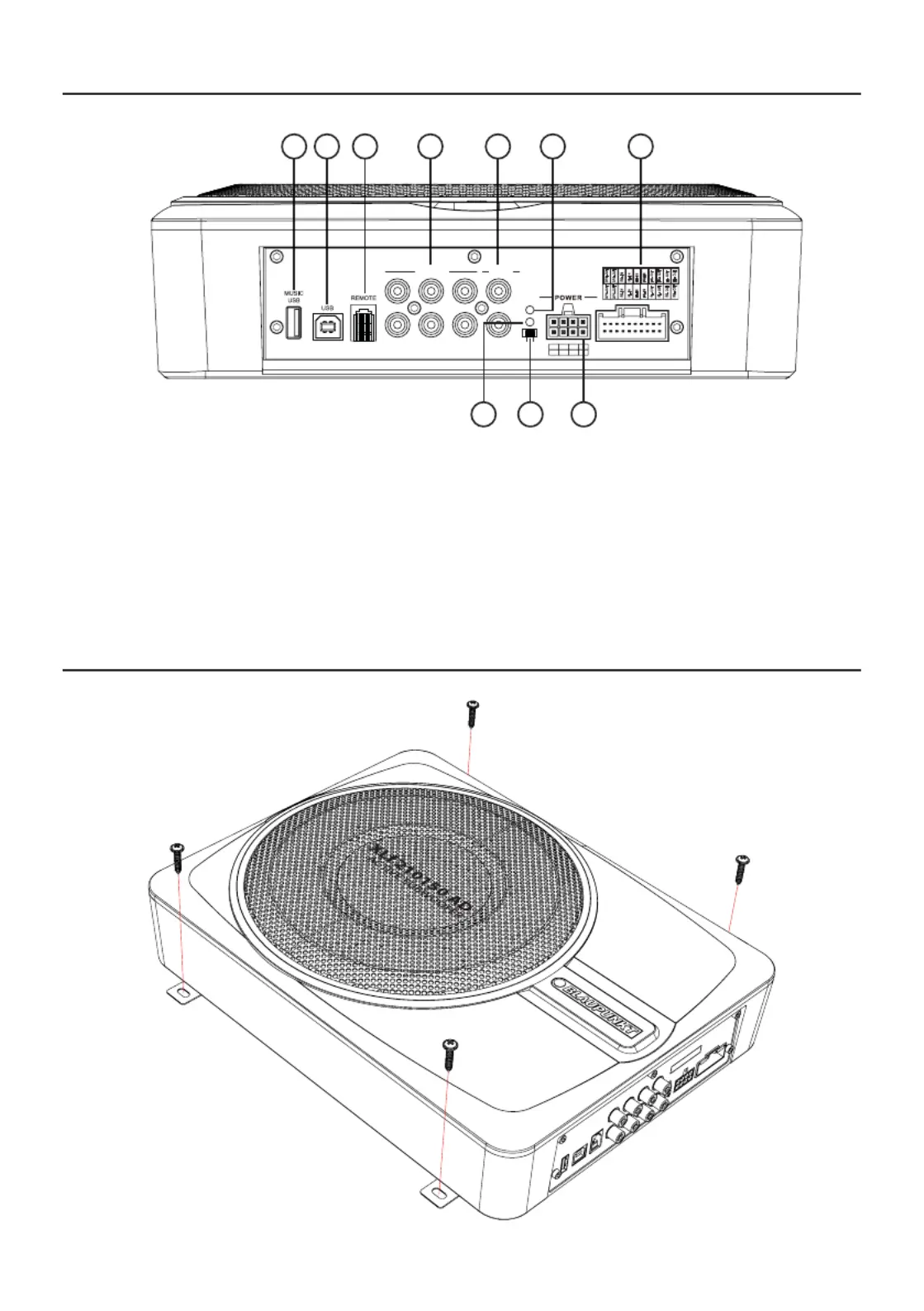

USB Player
USB2.0 Port
Remote Control Input
Low Level RCA Output
Low Level RCA Input
Protection LED
Hi Level Input/ Speaker Output/ Remote In/
Remote Out
Power Input
HI/ACC Convertor
Power LED
1 2 3 4 5 6
8
7
10 9
INPUT FUNCTION
INSTALLATION
OUTPUT INPUT
CH3
CH4
CH1
CH2
CH5
CH6
L
R
PWR
PRO
ACC
B TAT
GND
REM
OUT
BATT
GND
BATT
GND
RR+ I NRR- I N
RL- I N R L+ IN
FL+ I NFL- I N
FR- I N FR+ IN
RL- O UT
RL+ O UT
RR- O UT
RR+ O UT
FR- O UT
FR+ O UT
FL- O UT
FL+ O UT
SP6+O UT
SP5+O UTSP 5- OU T
SP 6- OU T
AUTO
HI ACC
