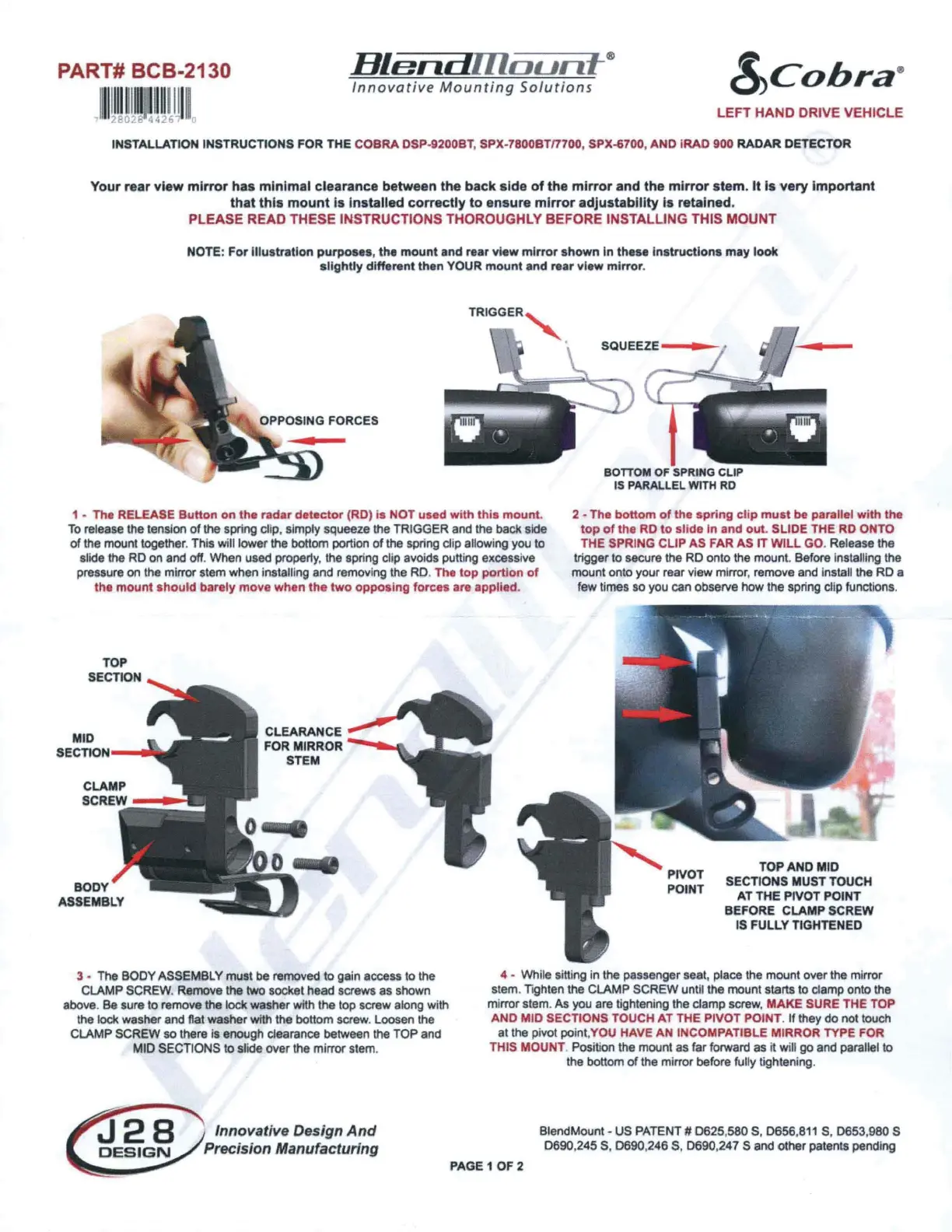

PART# BCB-2130
Blend
lllounf-®
S,cobra
·
I II
IIUIIU~ll
l
11
1
11
Innovative
Mounting
Solutions
2802
4 426"T o
LEFT HAND DRIVE VEHICLE
INSTALLATION INSTRUCTIONS
FOR
THE COBRA DSP-9200BT, SPX-7800BTl7700, SPX-6700, AND iRAD 900 RADAR DETECTOR
Your rear view
mirror
has minimal clearance between the back side
of
the
mirror
and the
mirror
stem.
It
Is
very
Important
that
this
mount
is
Installed correctly
to
ensure
mirror
adjustablllty
ls
retained.
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT
NOTE: For Illustration purpoees, the
mount
and rear view
mirror
shown In these
instructions
may
look
slightly
different then YOUR
mount
and rear view
mirror
.
BOTTOM
OF
SPRING
CLIP
IS PARALLEL WITH
RD
1 • The RELEASE Button
on
the radar detector (RD)
is
NOT used with
this
mount
.
To
release the tension of the spring clip, simply squeeze the TRIGGER and the back side
of the mount together. This will lower the bottom portion of the spring clip allowing
you
to
2 • The bottom
or
the spring
clip
mu t be parallel
with
the
top
of
the RD to slide In and
out
. SLIDE THE
RD
ONTO
THE
SPRING CLIP AS FAR AS IT
Will.
GO
. Release the
trigger to secure the
RD
onto the mount. Before Installing the
mount onto your rear view mirror, remove and Install the
RD
a
few times so
you
can observe how the spring cllp functions.
slide the
RD
on
and
off
. When used property, the spring clip avoids putti
ng
excessi
ve
pressure
on
the mirror stem when Installing and removing the
RD
. The top portion
of
the mount should
barely
move when
the
two
opposing forces are applied.
BODY
ASSEMBLY
CLEARANCE
FOR MIRROR
STEM
3 • The BODY ASSEMSLY must
be
removed to gain access to the
CLAMP SCREW. Remove the
two
socket head screws
as
shown
above.
Be
sure to remove the lock washer with the top screw along with
the lock washer and flat washer with the bottom screw. Loosen the
CLAMP SCREW so there is enough clearance between
the
TOP
and
MID SECTIONS to slide over the mirror stem.
Innovative Design
And
Precision Manufacturing
PIVOT
POINT
TOPANDMID
SECTIONS
MUST
TOUCH
AT
THE PIVOT POINT
BEFORE CLAMP SCREW
IS
FULLY TIGHTENED
4 • While sitting in the passenger seat, place the mount over the mirror
stem. Tighten the CLAMP SCREW until the mount starts to clamp onto the
mirror stem.
As
you
are tightening the clamp screw,
MAKE
SURE
THE
TOP
AND MID SECTIONS TOUCH
AT
THE PIVOT POINT. If they do not touch
at the pivot point.
YOU
HAVE AN INCOMPATIBLE MIRROR TYPE
FOR
THIS MOUNT. Position the mount
as
far forward
as
it will
go
and parallel to
the bottom
of
the mirror before fully tightening.
PAGE 1
OF2
BlendMount •
US
PATENT#
0625
,580
S,
O656,
B11
S, 0653,980 S
0690,245 S,
0690
,246 S.
0690
,247 S and other patents pending
