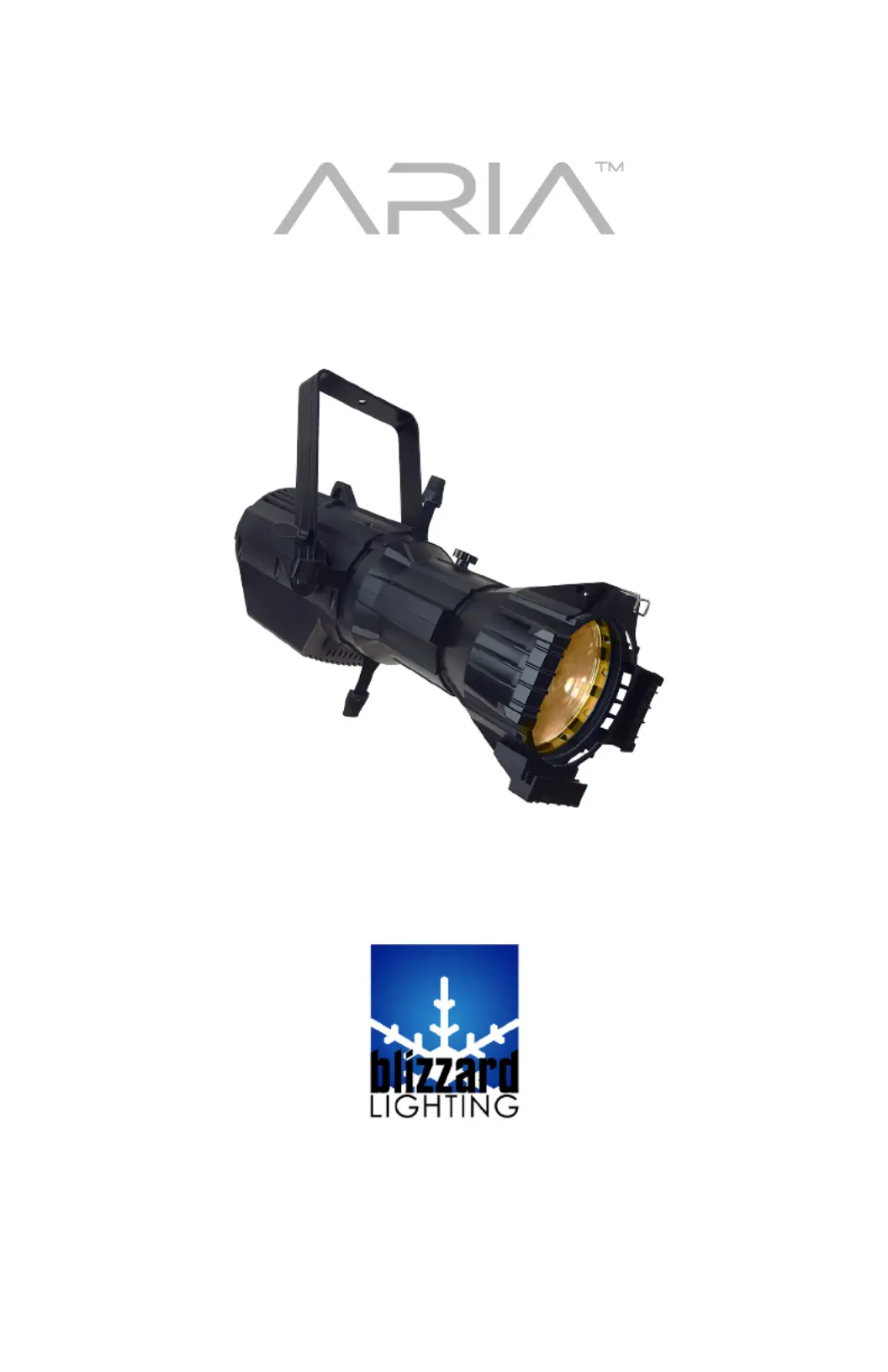

Profile

Page 2

TABLE OF CONTENTS

Aria™ Prole WW 1

1. Getting Started 3

What’s In The Box? 3

Getting It Out Of The Box 3

Powering Up! 3

Getting A Hold Of Us 3

Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4

2. Meet The Aria™ Prole WW 5

Features 5

DMX Values In-Depth 5

The Aria™ Prole Pin-up Picture 6

3. Setup 7

Fuse Replacement 7

Connecting A Bunch Of Aria™ Prole Fixtures 7

Data/DMX Cables 7

Cable Connectors 8

3-Pin??? 5-Pin??? Huh? 8

Take It To The Next Level: Setting up DMX Control 8

Connection With Mains 9

Mounting/Rigging 9

Rotating the Barrel 9

Gobo Holder 9

Gel Frame Holder 9

4. Operating Adjustments 10

The Control Panel 10

Control Panel Menu Structure 11

Setting the DMX Address 11

Select the DMX Channel Mode 11

Master/Slave Setting 11

Master Dimmer 11

Strobe Settings 11

Dimming Curves 11

5. Appendix 12

A Quick Lesson On DMX 12

Troubleshooting 12

Keeping Your Aria™ Prole As Good As New 13

Returns (Gasp!) 13

Shipping Issues 13

Tech Specs 14

Dimensional Drawings 14

Photometric Data 15

Page 3

1. GETTING STARTED

What’s In The Box?

• 1 x Aria™ Prole WW

• 1 x Gel Frame Holder

• 1 x Gobo Holder

• 1 x Ever-So-Handy Power Cord

• This Lovely User Manual

Getting It Out Of The Box

Congratulations on your purchase of the fresh and y Aria™ Prole WW! Now that

you’ve got your Aria™ Prole (or hopefully, Proles!), you should carefully unpack the

box and check the contents to ensure that all parts are present and in good condition.

If anything looks as if it has been damaged in transit, notify the shipper immediately

and keep the packing material for inspection. Again, please save the carton and all

packing materials. If a xture must be returned to the factory, it’s important that it be

returned in the original factory box and packing.

Powering Up!

All xtures must be powered directly o a switched circuit and cannot be run o a

rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer

channel is used solely for a 0% to 100% switch.

AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that

the xture you receive is suitable for your local power supply. See the label on the

xture or refer to the xture’s specications chart for more information. A xture’s

listed current rating is its average current draw under normal conditions. Check the

xture or device carefully to make sure that if a voltage selection switch exists that it is

set to the correct line voltage you will use.

Warning! Verify that the voltage select switch on your unit matches the line

voltage applied. Damage to your xture may result if the line voltage applied

does not match the voltage indicated on the voltage selector switch. All

xtures must be connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us

If something is wrong, please open a support ticket on our website at www.

blizzardlighting.com/support. We’ll be happy to help, honest.

Disclaimer: The information and specications contained in this document are subject

to change without notice. Blizzard Lighting™ assumes no responsibility or liability

for any errors or omissions that may appear in this user manual. Blizzard Lighting™

reserves the right to update the existing document or to create a new document to

correct any errors or omissions at any time. You can download the latest version of this

document from www.blizzardlighting.com.

Author: Date: Last Edited: Date:

J. Thomas 12/1/2017 J. Thomas 12/1/2017

Produktspezifikationen

Marke:	Blizzard Lighting
Kategorie:	Lichteffektmaschine
Modell:	Aria Profile WW
Breite:	444.5 mm
Tiefe:	482.6 mm
Gewicht:	2404.04 g
Produkttyp:	Disco-Stroboskoplicht
Produktfarbe:	Schwarz
Höhe:	177.8 mm
Energiequelle:	AC
Verpackungsbreite:	- mm
Verpackungstiefe:	- mm
Verpackungshöhe:	- mm
Paketgewicht:	- g
Zertifizierung:	ETL, CE, RoHS
Stromverbrauch (Standardbetrieb):	156 W
LED-Anzeigen:	Ja
Anzahl:	1
Lampentyp:	LED
Eingangsspannung:	100 - 240 V
Für die Nutzung im Innenbereich geeignet:	Ja
Beleuchtungsarten:	DMX
Anzahl der DMX-Kanäle:	9 Kanäle
DMX-Eingang:	Ja
DMX-Ausgang:	Ja
Anzahl Pins:	5
Eingangsfrequenz:	50 - 60 Hz
Kugeldurchmesser:	- "
Lampenleistung:	200 W
Minimale Anzahl DMX-Kanäle:	6 Kanäle
Farbwiedergabeindex (CRI):	90
Flimmerfreier Betrieb:	Ja
Integrierter Griff:	Ja
