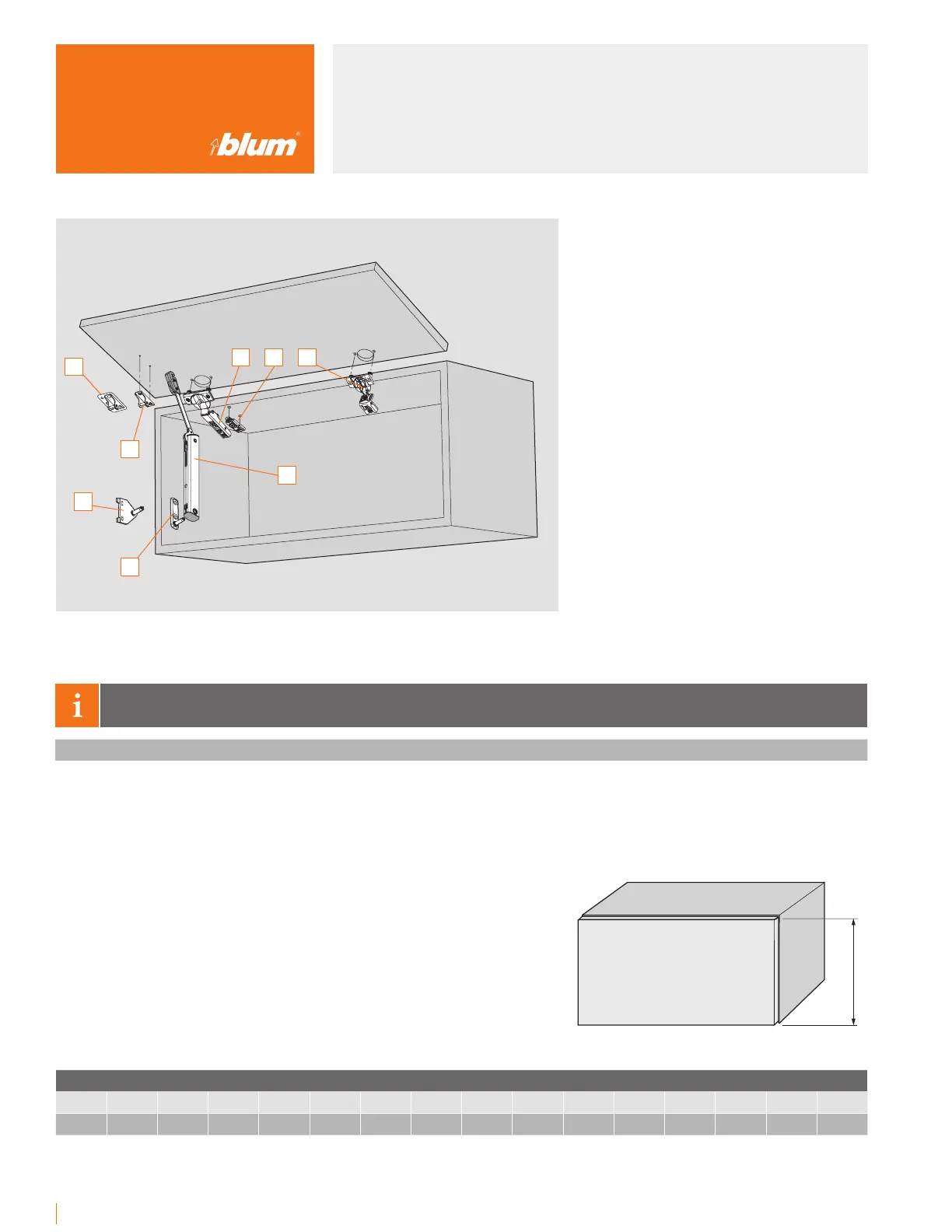

AVENTOS HK-XS

Ordering information

for face frame and panel

▀Well suited for small wall cabinets

▀Cabinet height from

238 (9-3/8") to 610 (24")

▀Interior depth minimum 127 (5")

▀Closes silently and effortlessly with

CLIP top BLUMOTION or

COMPACT BLUMOTION hinges

▀Simple, virtually tool-free assembly and easy

adjustment

▀Symmetrical lift mechanism – can be used on

one or both sides

▀Designed for use with BLUMOTION hinges

Step 1 – Determine the power factor for the application

Determine power factor

To select the correct lift mechanism for a given application, the power factor must first be calculated by using the formula below.

Use the table at the bottom of the page to convert ounces into decimal form for easy calculation.

Example:

Cabinet height: 15 inches (within possible range)

Door weight including twice the handle weight: 9 lb 14 oz (14 oz = .9 lb see chart below)

Total weight converted to decimal is 9.9 lb

Power factor = cabinet height multiplied by door weight including twice the handle weight

Power factor = 15 x 9.9

Power factor = 148.5

A power factor of 148.5 requires lift mechanism 20K1501

NOTE:AVENTOS planning tools available at blum.com/planning

weight conversion chart

oz123456789101112131415

lb.1.1.2.3.3.4.4.5.6.6.7.8.8.9.9

door weight + twice handle weight = 9 lb 14 oz

381 (15")

Power factor = cabinet height (inch) x door weight including double handle weight (lb)

4a

1

4b

3b

3a

2b

2a

5
