DA11USB QUICK REFERENCE GUIDE

Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk| |

Our DA11USB has been designed to both encode 2ch USB audio to a Dante®

digital signal, and decode a Dante® digital signal to 2ch USB audio. The DA11USB

features both USB Type-B and USB-C connections selectable via local dip-switch

and is a plug & play device that is powered using PoE (Power Over Ethernet) or via

5V from the USB device. The DA11USB also supports AES67 RTP audio transport.

Introduction

DA11USB

Quick Reference Guide

• Encodes 1ch USB audio to Dante® digital signal

• Decodes a Dante® digital signal to USB audio

• Selectable USB audio between USB Type-B and USB-C inputs

• Compliant with USB Audio Device Class Specification V1.0

• Supports 44.1 & 48 KHz sample rates @ 16 Bit

• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)

• Supports AES67 RTP audio transport

• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch

• Supports power via 5V USB for when network switch does not support PoE

FEATURES:

Connections:

1 Dante® Audio Input - RJ45 socket connects Dante® network and powers device via PoE

2 USB-B Connection - Connect to PC via USB-B to USB-A cable provided to provide bi-directional 2ch audio

3 USB-C Connection - Connect to PC via USB-C cable provided to provide bi-directional 2ch audio

4 USB Selection Switch - Select the USB connection method between USB-B and USB-C

Front Panel

Rear Panel

Side Panel

USB-B

USB-C

USB-B

USB-C

DA11USB QUICK REFERENCE GUIDE

www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk

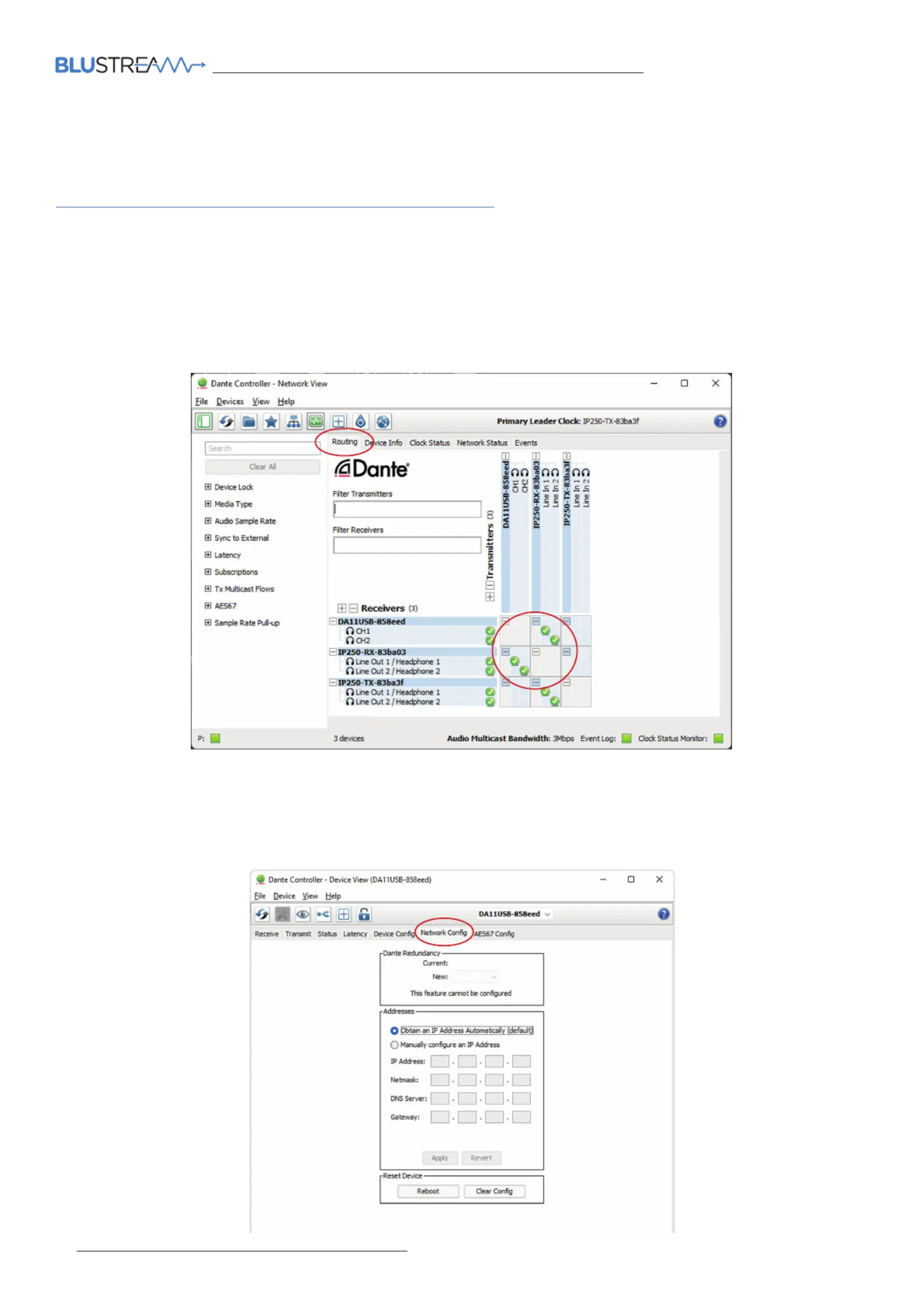

Dante Controller

Dante Controller soware is required in order to setup and configure the DA11USB as well as control your Dante

network. Audinate provide extensive training videos and documentation on their website. This can be found here:

http://www.audinate.com/products/soware/dante-controller

Upon connecting your DA11USB to a compatible network, the Dante Controller soware should automatically

discover the device. The DA11USB will appear in the Dante Controller with a name denoted with “DA11USB”. On the

“Routing” screen you can create audio routing between Dante transmitters and receivers in your system.

Please ensure your PC is on the same network as your Dante devices. Dante is not able to transmit over WiFi and it

is recommended to hardwire into the Dante network. Having multiple network devices enabled can also confuse

the Dante Controller soware so it is recommended to disable WiFi during configuration.

By default the DA11USB is shipped with its network settings set to obtain an IP Address automatically. This means

that if a DHCP server is present on your network, it will provide the DA11USB with an IP Address. If no DHCP server

is present then the DA11USB will receive a default IP Address in the 169.254.xxx.xxx range. To change the IP Address

of the DA11USB, you must enter the “Network Config” menu in the “Device Info” screen of the Dante Controller

soware.

DA11USB QUICK REFERENCE GUIDE

Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk| |

RevA3_QRG_DA11USB_Working

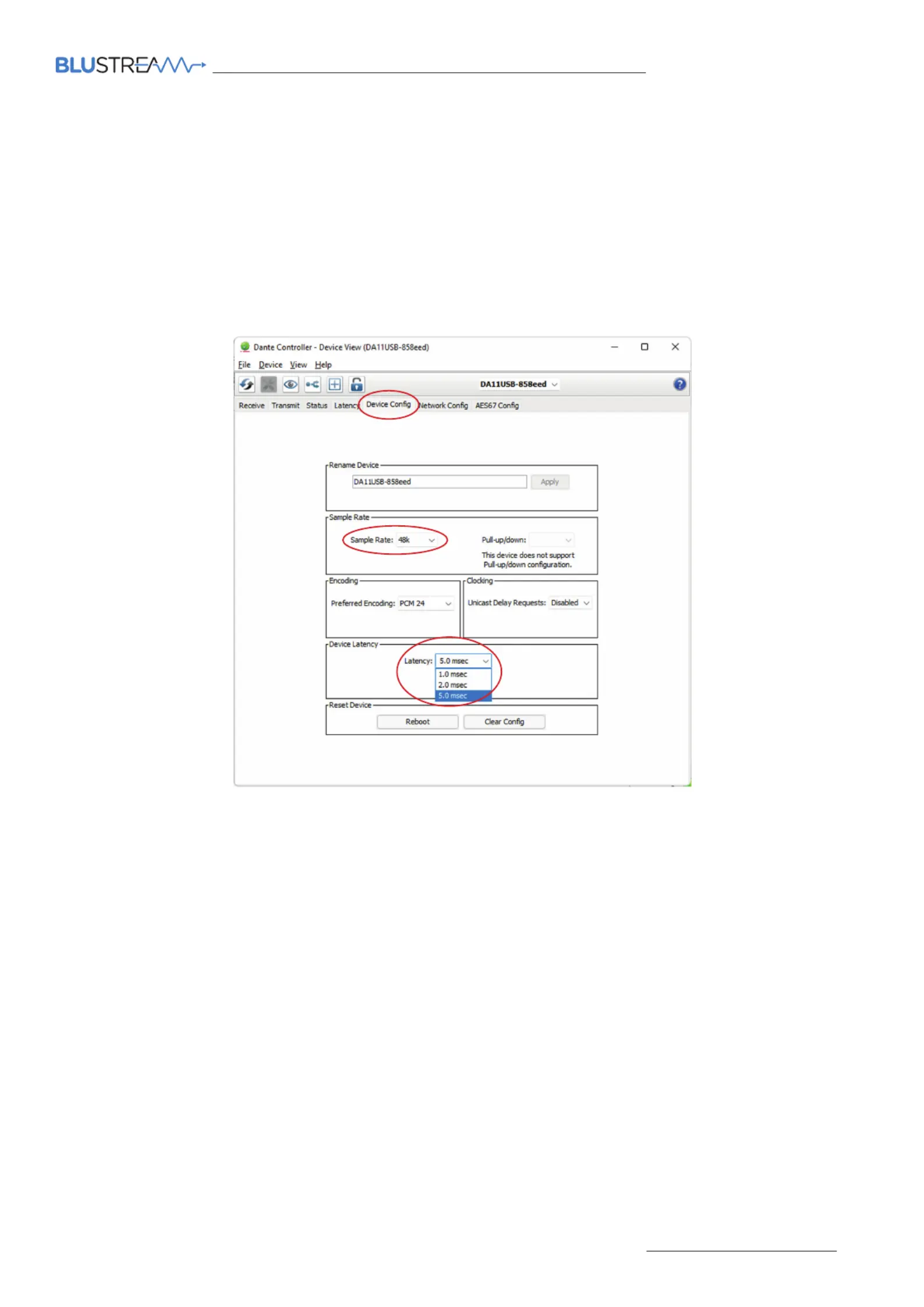

Advanced Dante Settings

It is also possible to change the settings of the DA11USB under the “Device Info” screen in the Dante Controller

soware. To do so, select the “Device Config” menu.

Here we can adjust the sample rate of the DA11USB. Please note that Dante products can only transmit or receive

audio from other Dante products that are set up with the same sample rate. A mismatch in sample rate may stop

audio from transmitting.

Under the “Device Config” screen we can also adjust the latency of the DA11USB from 1, 2 or 5 milliseconds.

Produktspezifikationen

Marke:	Blustream
Kategorie:	Nicht kategorisiert
Modell:	DA11USB
Breite:	120 mm
Tiefe:	47 mm
Produktfarbe:	Schwarz
Höhe:	26 mm
Betriebstemperatur:	0 - 40 °C
Paketgewicht:	300 g
Maximale Datenübertragungsrate:	100 Mbit/s
Temperaturbereich bei Lagerung:	-20 - 60 °C
Anzahl:	1
USB-Stecker:	USB Type-B, USB Type-C
Arbeitsspannung:	5 V
Abtastraten:	44.1, 48, & 96KHz sample rates @ 24 Bit
