Seite 1/10
HEX70B-KIT
User Manual
HEX70B-RX Receiver
HEX70B-TX Transmitter
Revision 3_04-2018
HEX70B-KIT USER MANUAL
02 www.blustream.co.uk
Surge protection device
recommended
This product contains sensitive electrical
components that may be damaged
by electrical spikes, surges, electric
shock, lightning strikes, etc. Use of surge
protection systems is highly recommended
in order to protect and extend the life of
your equipment.
Safety And
Performance Notice
The transmission distances of HDMI
over UTP cables are measured using TE
CONNECTIVITY 1427071-6
EIA/TIA-568-B termination (T568B) of cables
is recommended for optimal performance.
To minimise interference of the unshielded
twisted pairs in the CAT5e/6 cable do not
run the HDBaseT/Cat5e/6/6a cabling with
or in close parallel proximity to mains
power cables.
Do not substitute or use any other power
supply other than the enclosed unit, or a
Blustream approved replacement.
Do not disassemble either the Transmitter
or Receiver units for any reason. Doing so
will void the manufacturer’s warranty.
Introduction 03
Features 03

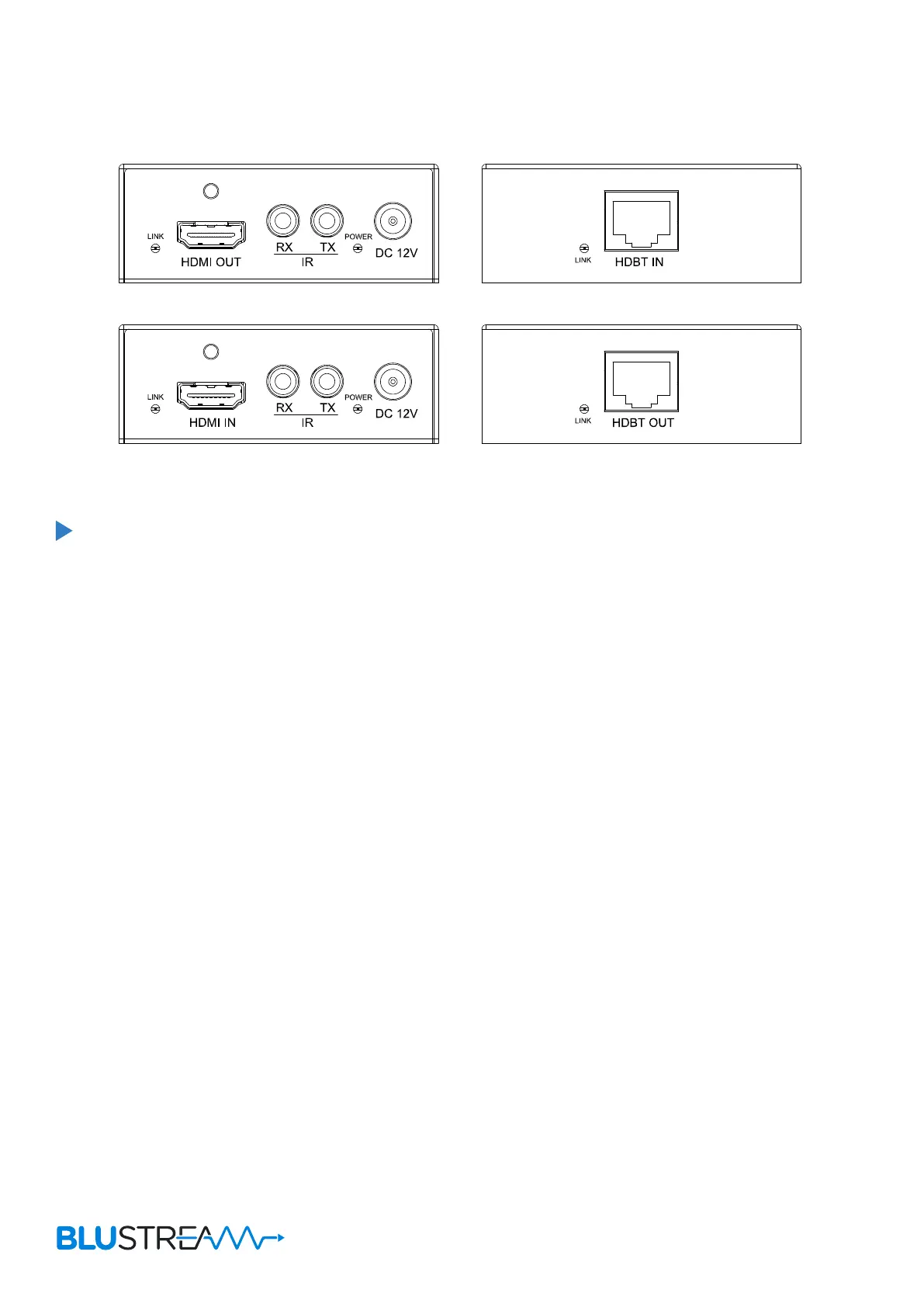

Panel Descriptions 04
Terminating HDBaseT CAT Cables 05
Understanding TX/RX Status Lights 05
InfraRed Distribution 06
Application Diagram 07
Specifications 08
Package Contents 08
Maintenance 08
Installer notes 09
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions carefully
before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
HEX70B-KIT USER MANUAL
03
contact support@blustream.co.uk / support@blustream.com.au
Our HEX70B-KIT 4K HDBaseT extender set oers market leading features ™
and outstanding value. The product delivers HDMI, Bi-directional IR and Bi-
directional PoH (PoE) up to lengths of 70m.
Introduction
FEATURES:
• Advanced HDBaseT technology oering uncompressed video and audio with zero latency
• Extends HDMI 1080p up to a distance of 70m over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports 3D signal display
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Bi-directional IR pass-through
• Supplied with Blustream IR receiver and emitter
• Supports bi-directional PoH (Power over HDBaseT™) to power extenders from either Transmitter or Receiver end
• HDCP2.2 compliant
