Automatic Multi-Feed Soap Dispensing System
INSTRUCTIONS FOR INSTALLATION, OPERATION, MAINTENANCE & TROUBLESHOOTING
Bobrick B-820-258 (Liquid Soap Dispenser) / B-820-248 (Foam Soap Dispenser)
B-820 (Multi-Feed Soap Reservoir)
© 2022 by Bobrick Washroom Equipment, Inc.
Form No. 820-69ii 9-26-22

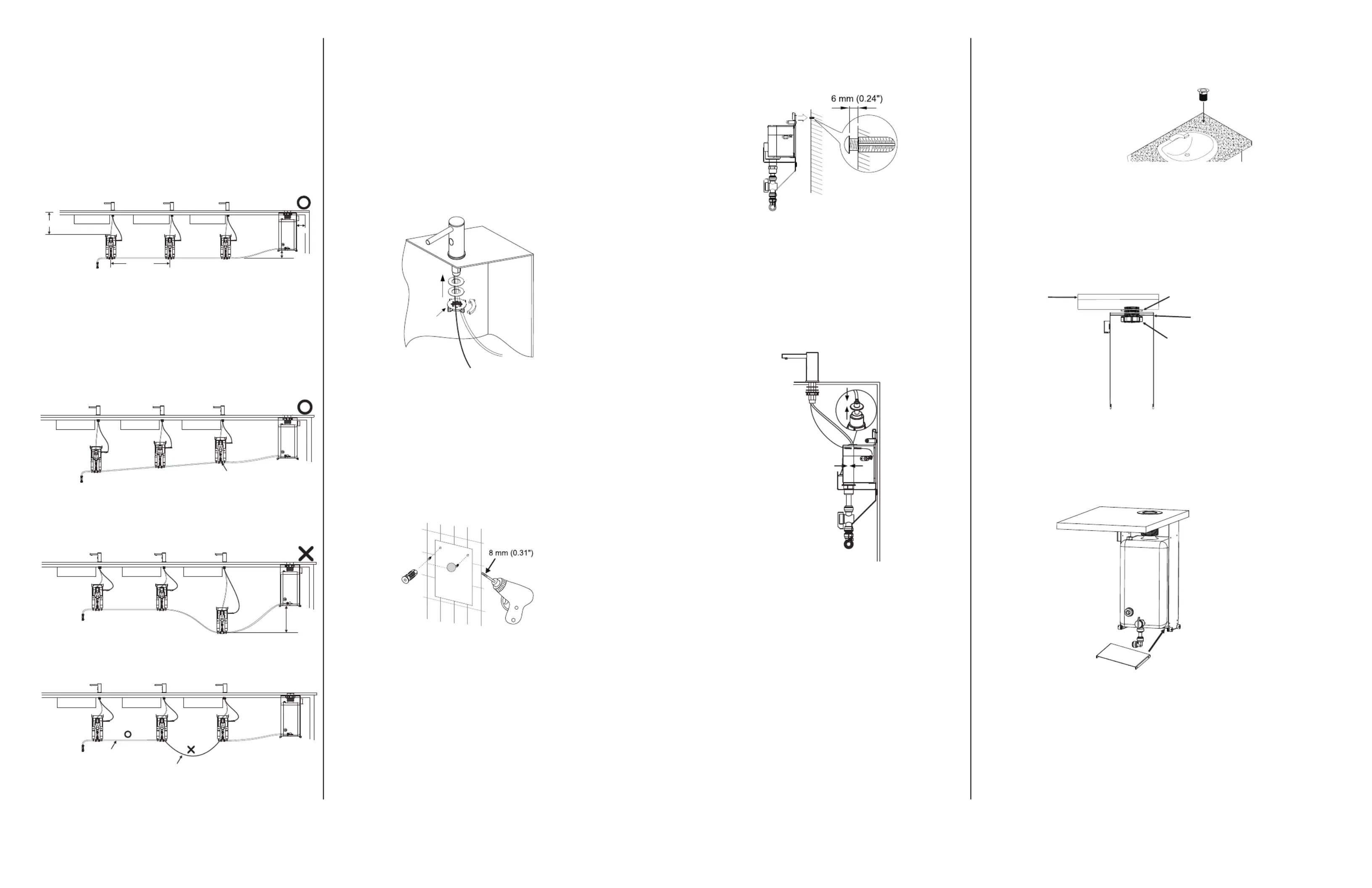

Clearances and Mounting Requirements:
B-820-258 (Liquid Soap Dispenser) / B-820-248 (Foam Soap Dispenser)
• Designed for installation into countertops up to 1.5" (38.1 mm) thick.
• Requires 1" (25 mm) diameter mounting hole.
• Compatible with sink rims up to 0.39" (10 mm) wide and 0.8" (20 mm) tall.
• Recommended spout location is minimum of 1.6” (40 mm) and maximum of 2.7" (70 mm) from inside edge of the
sink rim to the center of the mounting hole, and minimum clearance of 1.18" (30 mm) from the edge of the sink and
rear wall to the center of the mounting hole.
• Requires a minimum of 4" (100 mm) and maximum of 18" (450 mm) vertical clearance from the bottom of the
countertop to the mounting screw for the soap pump at the rear wall.
B-820 (Multi-Feed Soap Reservoir)
• Designed for installation into countertops up to 1.5" (38.1 mm) thick.
• Requires 2.38" (60.3 mm) diameter mounting hole.
• Recommended install location for the fill port is at least 5.91" (150 mm) from the center of the mounting hole to the
side and back wall.
• The horizontal clearance required between the soap reservoir and side wall is 1" (25mm)
In the United States: BOBRICK WASHROOM EQUIPMENT, INC.
New York: 200 Commerce Drive, Clifton Park, NY 12065-1350 • Tel: (518) 877-7444 • Fax: (518)-877-5029
Los Angeles: 6901 Tujunga Ave, North Hollywood, CA 91605-6213 • Tel: (818) 982-9600 • Fax: (818)-503-9287
or email customerservic[email protected]
In Canada: BOBRICK WASHROOM EQUIPMENT COMPANY
45 Rolark Drive, Scarborough, Ontario M1R 3B1 • Eastern Canada: Tel: (877) 423-6555 • Fax: (877) 423-8555
• Western Canada: Tel: (877) 423-6444 • Fax: (877) 423-8444 or email customerservice@bobrick.com

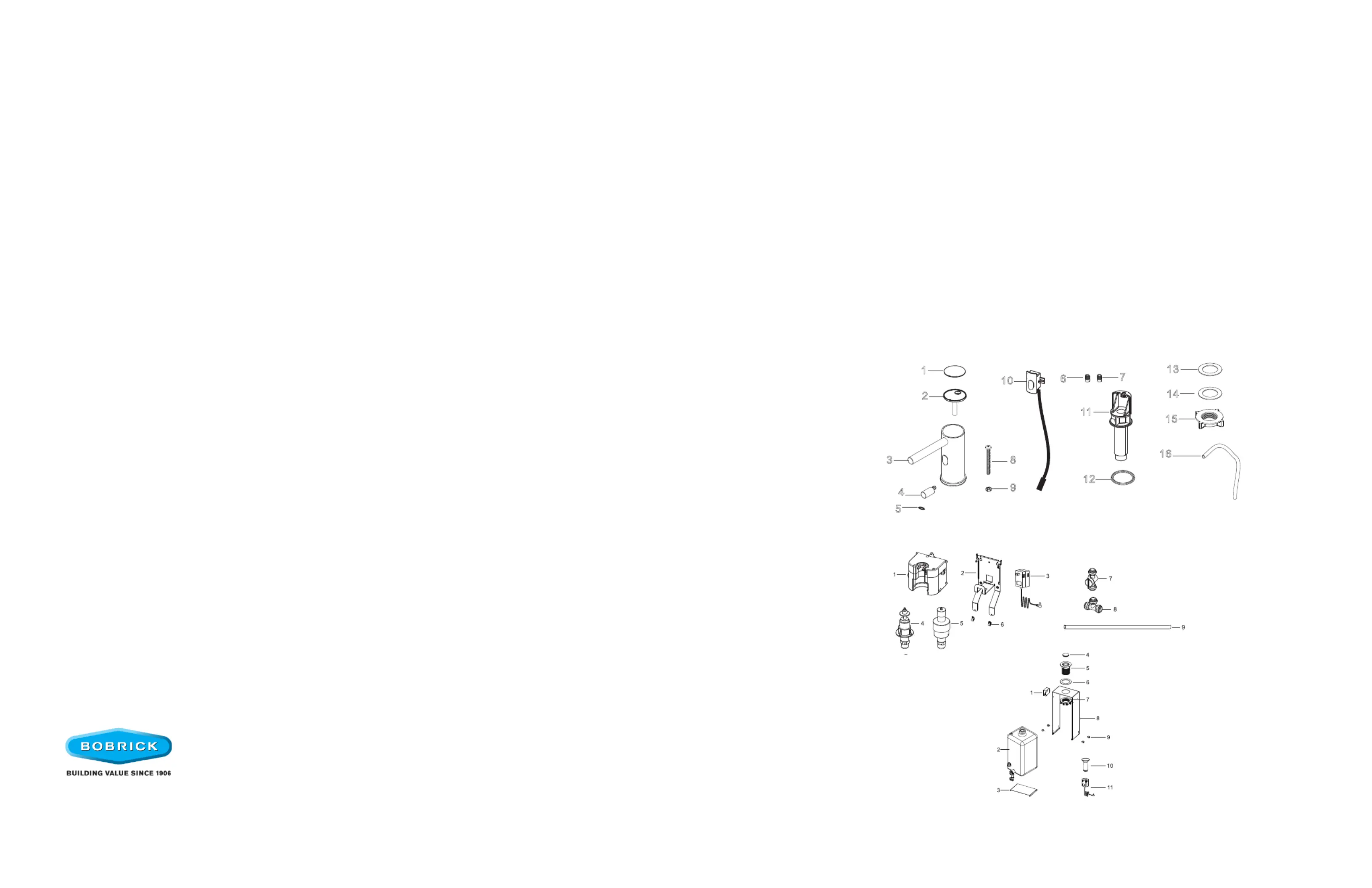

Unit Diagram
B-820-258 (Liquid Soap Dispenser) / B-820-248 (Foam Soap Dispenser) – Spout with Stem Assembly
1. Plate
2. Top Cover
3. Dispenser Spout
4. Elbow Connector
5. O Ring
6. Nozzle with Mesh
7. Nozzle without Mesh
8. Screw
9. Screw Nut
10. CSD Sensor
11. CSD Mounting shaft
12. Rubber Washer (Above Countertop)
13. Rubber Washer (Below Countertop)
14. Nylon Washer
15. Mounting Nut
16. Soap Tube
B-820-258 (Liquid Soap Dispenser) / B-820-248 (Foam Soap Dispenser) – Pump with Electronic Control Box
1. Control Box
2. Base Plate
3. AC Adapter
4. Soap Pump (Liquid)
5. Soap Pump (Foam)
6. Soap Tube Holder (Two included)
7. Soap Tube Valve Switch
8. Soap Tube T Connector
9. Soap Tube (1,200 mm)
B-820 (Multi-Feed Soap Reservoir)
1. Control Box
2. Soap Reservoir Tank
3. Bottom Bracket
4. Fill Port Cap
5. Refilling Assembly
6. Rubber Washer
7. Mounting Nut
8. Bracket
9. Thumb Screws (Four included)
10. Funnel
11. AC Adapter
