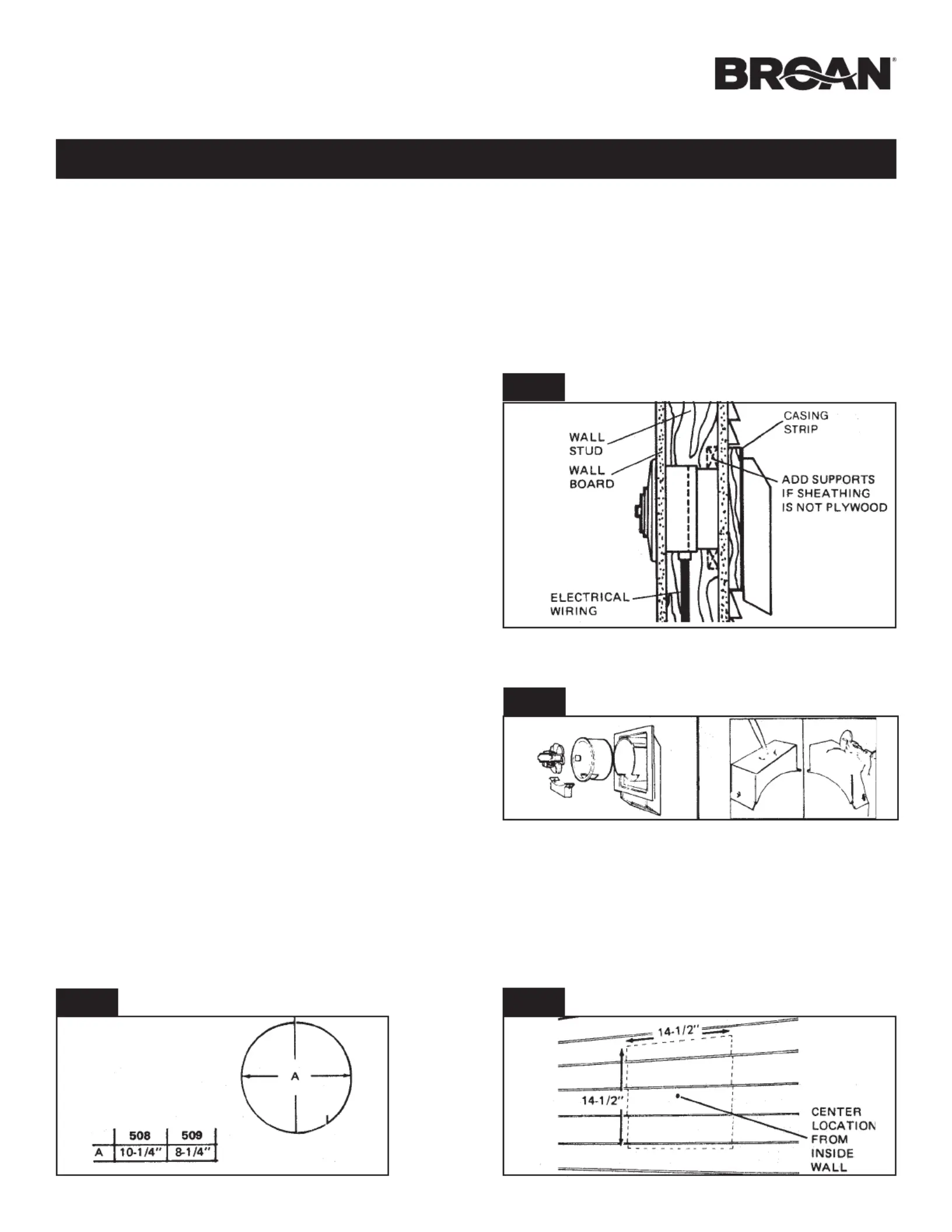

Models 508N / 509N

INSTALLATION INSTRUCTIONS

1. All electrical connections must be in accordance with local

codes, ordinances, or Canadian Electrical Code. If you are

unfamiliar with methods of installing electrical wiring, secure

the service of a qualified electrician.

2. To avoid motor bearing damage and/or noisy and unbalanced

impellers, keep drywall spray, construction dust, etc. off power

unit.

3. Use care when handling motor bracket assembly to prevent

damage to blade. Do not set down assembly with weight of

motor resting on the blade.

4. Disconnect electrical power supply before installing or servic-

ing fan.

fIG. 1

FIG. 2

TYPICAL INSTALLATION

PREPARE FAN

INSTALL FAN

FIG. 1

FIG. 2

FIG. 4

FIG. 3

This unit mounts between walls 4½” to 9½” thick. Outside housing

flange is fastened to casing strips (1 x 2’s). See Fig. 1. If sheathing

behind siding is not wood, provide extra supports between walls

(Nailed or screwed to siding).

1. Choose fan location from inside room. Make sure that wall stud

does not run through opening. Lay out hole on wall (Figure

3).

2. Transfer center of hole to outside wall.

1. Remove motor assembly by loosening mounting screws, rotat-

ing assembly and lifting motor assembly out of inner housing

(Figure 2).

2. Use care when handling motor bracket assembly to prevent

damage to blade. Do not set down assembly with weight of

motor resting on the blade.

3. Pull inner housing out of outer housing.

4. Remove wiring knockout from bottom of wiring box (provided

in plastic parts bag) (Figure 2).

NOTE

Remove bottom knockout ONLY!

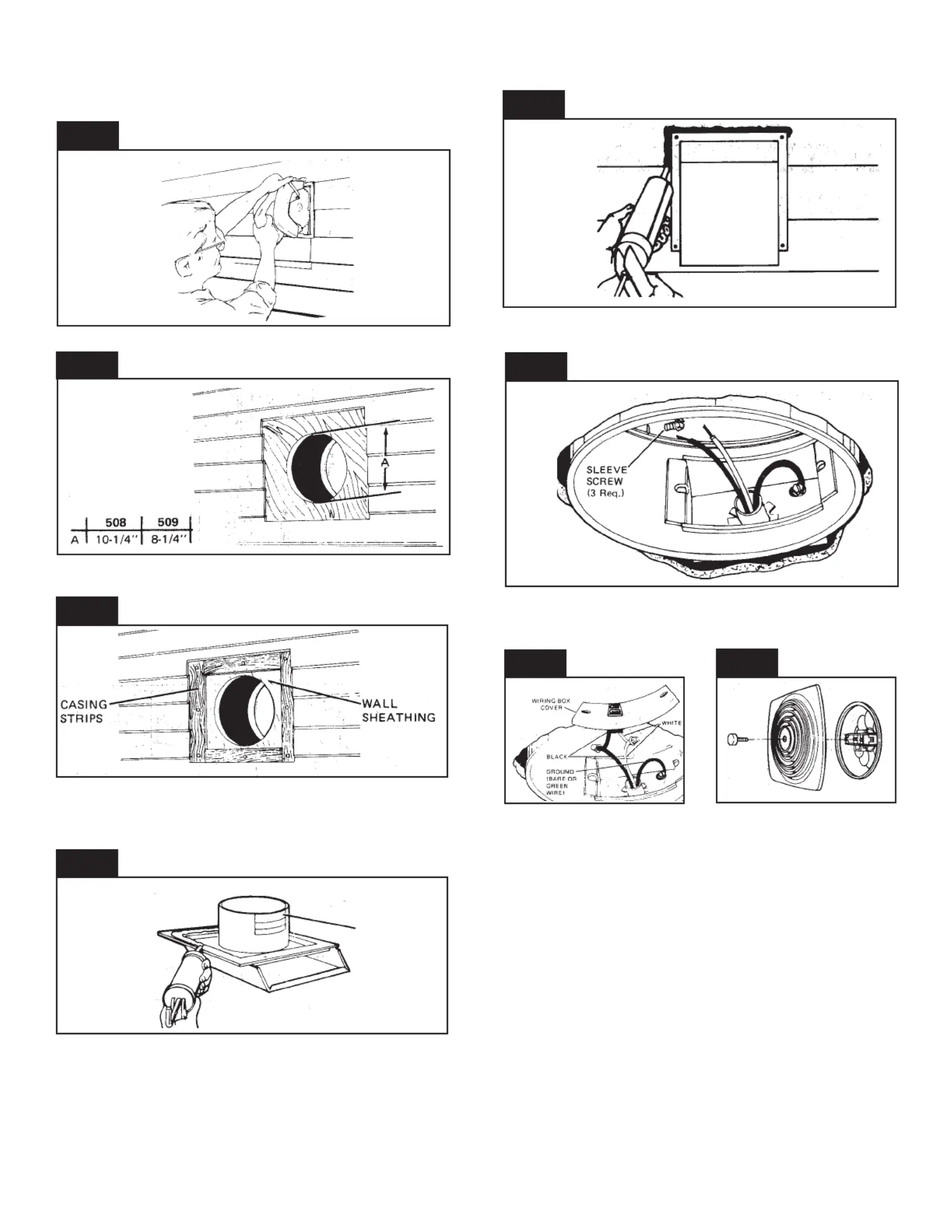

3. Cut out hole on side wall.

4. Lay out 14½” square around center location transferred from

inside room (Figure 4).

Broan-NuTone Canada

Mississauga, Ontario

www.broan.ca 877-896-1119
