MODEL RDH

Page 1

For Use in 1, 2 or 3 Hour Rated Floor-Ceiling and

Roof-Ceiling Designs.

Horizontal Mount Only.

For use with the following Broan ventilation fan models:

•80RDF, 110RDF, HD50RDF

The following components are included with this

accessory kit:

(1) Radiation Damper and Fan Housing Assembly

(1) Metal Duct Connector

(4) Support Angles

(1) Housing Mask

Identify the following ventilation fan (purchased

separately) components and discard:

•Plastic Fan Grille Assembly

•Plastic Duct Connector Assembly

ROUGH-IN KIT WITH

RADIATION DAMPER

READ AND SAVE THESE INSTRUCTIONS

METAL DUCT

CONNECTOR

HOUSING

SLIDE

CHANNEL

SUPPORT

ANGLE

RADIATION

DAMPER

ASSEMBLY

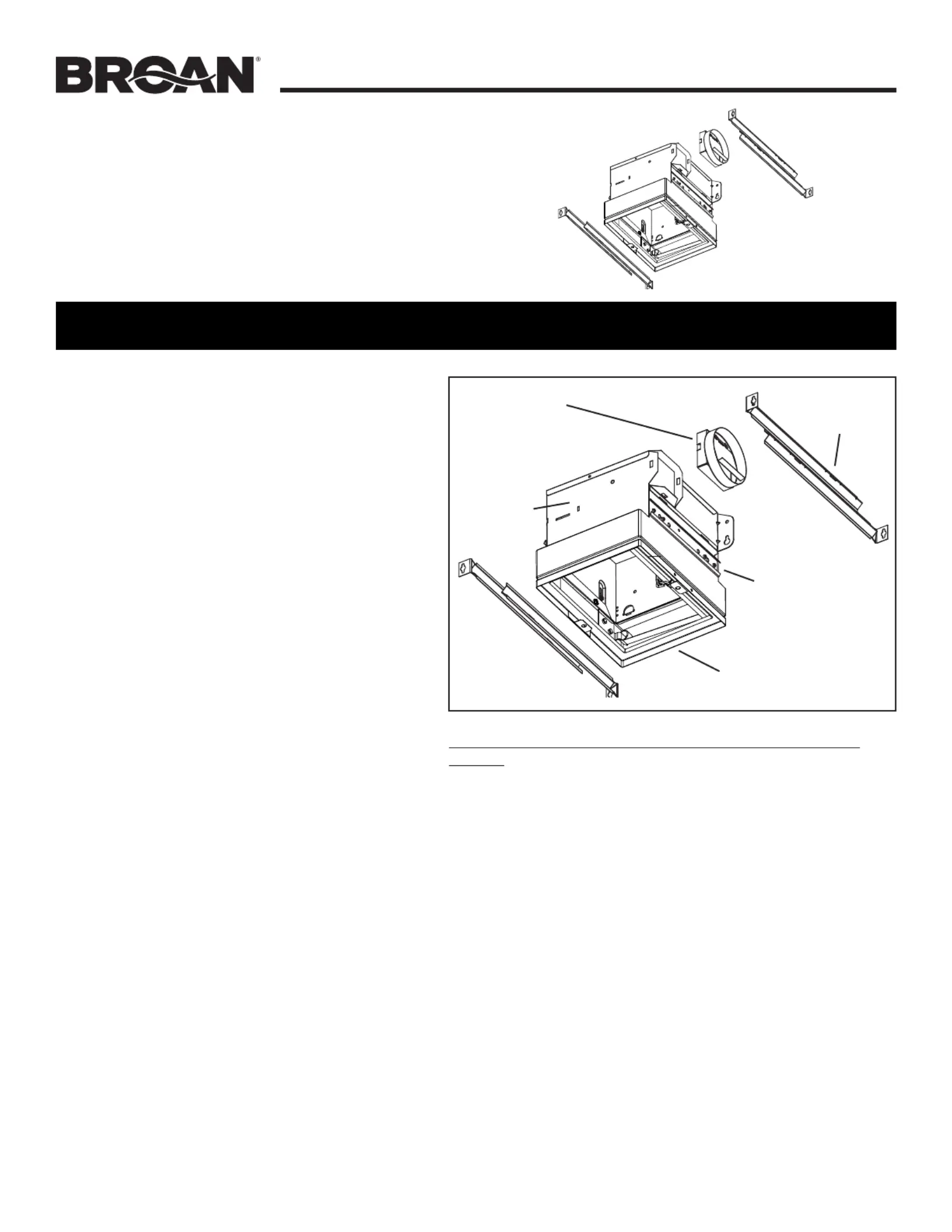

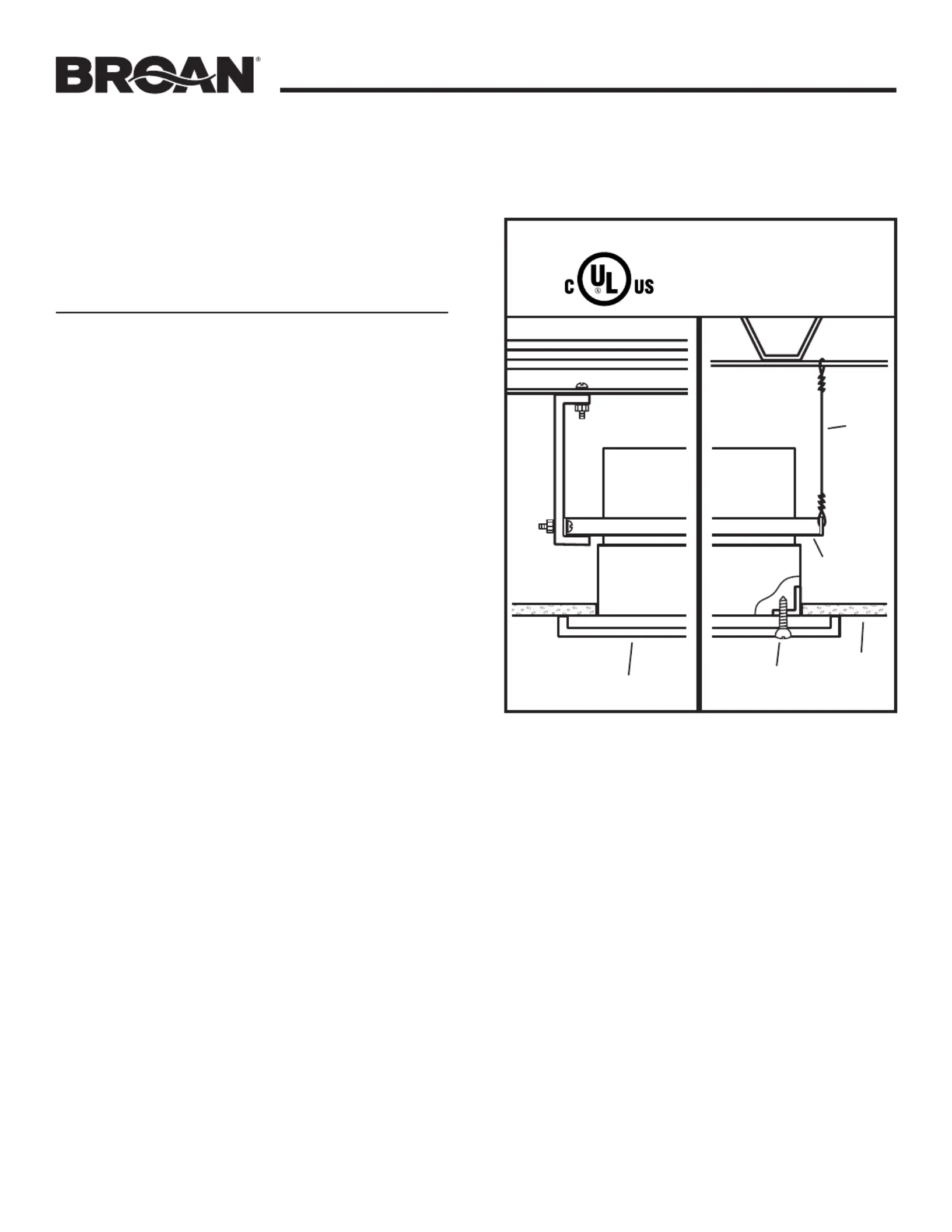

Assemble support angles and duct connector to ventilation fan

housing:

1. Snap metal duct connector onto housing. Make sure that tabs on

the duct connector lock into the slots on the housing. Damper flap

hinge should be positioned toward top of housing.

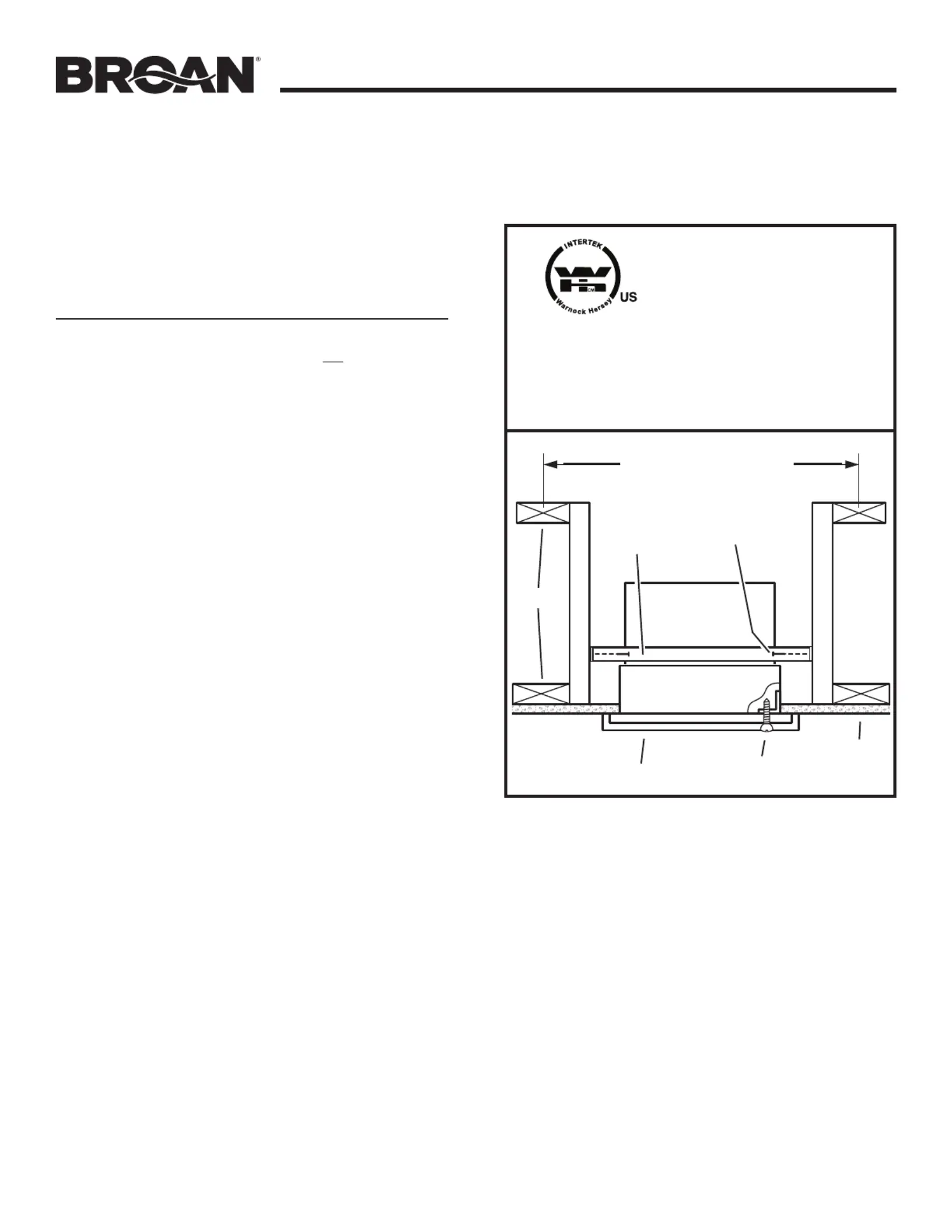

2. Slide channels can be adjusted up or down to accommodate

different ceiling thicknesses.

3. Insert (2) support angles into each slide channel.
