QTXE & QTXEN SERIES ULTRA SILENT
™
FANS
R :EGISTER YOUR PRODUCT ONLINE AT
B QTXE S . .ROAN ERIES: WWW BROAN CA
N T QTXEN S . .U ONE ERIES: WWW NUTONE CA
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the address
or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualifi ed
personnel in accordance with all applicable codes and standards,
including fi re-rated construction codes and standards.
4. Suffi cient air is needed for proper combustion and exhausting
of gases through the fl ue (chimney) of fuel burning equipment
to prevent backdrafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Acceptable for use over a tub or shower when connected to a
GFCI (Ground Fault Circuit Interrupter) - protected branch circuit
(ceiling installation only).
8. This unit must be grounded.
9. When applicable local regulations comprise more restrictive
installation and/or certifi cation requirements, the aforementioned
requirements prevail on those of this document and the installer
agrees to conform to these at his own expenses.
10. When performing installation, servicing or cleaning this unit,
it is recommended to wear safety glasses and gloves.
CAUTION
!
1. For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
2. This product is designed for installation in ceilings up to a
12/12 pitch (45 degree angle). Duct connector must point
up. DO NOT MOUNT THIS PRODUCT IN A WALL.
3. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
4. Please read specification label on product for further
information and requirements.
OPERATION
WARRANTY
BROAN-NUTONE CANADA ULC
THREE-YEAR LIMITED WARRANTY
Broan-NuTone Canada warrants to the original consumer purchaser of its
products that such products will be free from defects in materials or workmanship
for a period of three (3) years from the date of original purchase. THERE ARE
NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
During this three-year period, Broan-NuTone Canada will, at its option,
repair or replace, without charge, any product or part which is found to be
defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS
OR TUBES, BULBS OR BATTERIES, FILTERS, DUST, ROOF CAPS, WALL CAPS
AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a)
normal maintenance and service or (b) any products or parts which have been
subject to misuse, negligence, accident, improper maintenance or repair (other
than by Broan-NuTone Canada or an authorized representative), faulty installation
or installation contrary to recommended installation instructions.
The duration of an implied warranty is limited to the three-year period as
specifi ed for the express warranty.
BROAN-NUTONE CANADA’S OBLIGATION TO REPAIR OR REPLACE, AT
BROAN-NUTONE CANADA’S OPTION, SHALL BE THE PURCHASER’S SOLE
AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE CANADA
SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR
PERFORMANCE. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone Canada at
the address or telephone number stated below, (b) give the model number
and part identifi cation and (c) describe the nature of any defect in the product
or part. At the time of requesting warranty service, you must present evidence
of the original purchase date.
IF YOU NEED ASSISTANCE OR SERVICE:
For the location of your nearest Broan-NuTone Canada ULC dealer:
Dial Toll Free: 1-888-882-7626
Please be prepared to provide:
• Product model number • Date and proof of purchase
• The nature of the diffi culty
Broan-NuTone Canada ULC 1140 Tristar Drive, Mississauga, Ontario L5T 1H9
INSTALLER: Leave this manual
with the homeowner.
CLEANING & MAINTENANCE
For quiet and effi cient operation, long life, and attractive appearance
- lower or remove grille and vacuum interior of unit with the dusting
brush attachment.
The motor is permanently lubricated and never needs oiling. If the
motor bearings are making excessive or unusual noises, replace
the blower assembly (includes motor and impeller).
Use an On/Off switch or speed control to operate this ventilator.
See “Connect Wiring” for details.
Revised July 2015
30042518A
MODELS QTXE080C • QTXE090C • QTXE110C
• QTXEN080C • QTXEN090C • QTXEN110C
1

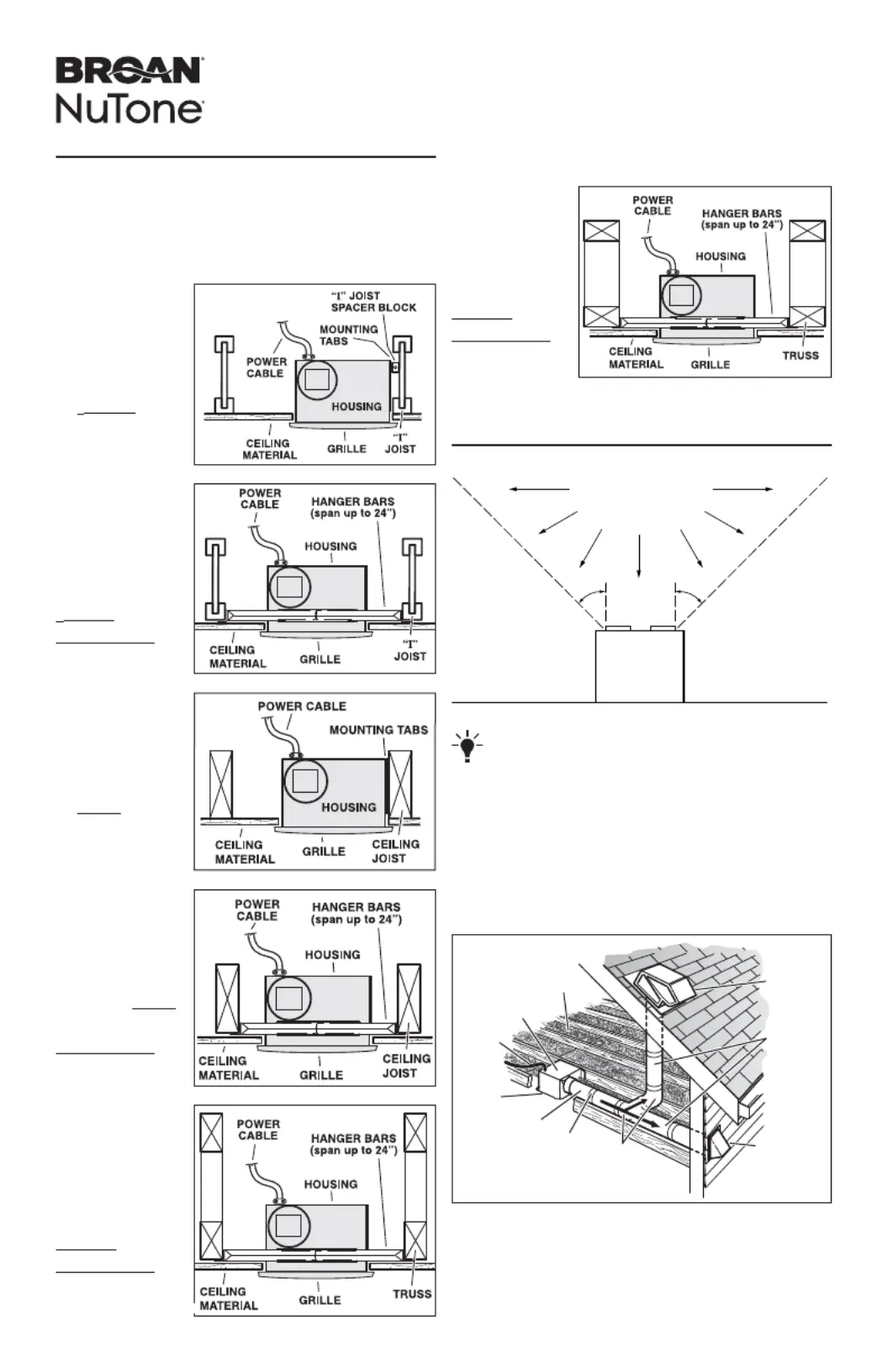

TYPICAL INSTALLATIONS
Housing
mounted
to -joists.I
Housing
mounted
anywhere
between
trusses using
hanger bars.
Housing
mounted
anywhere
between
I-joists using
hanger bars.
Housing
mounted
to joists.
Housing
mounted
anywhere
between joists
using
hanger bars.
Housing
mounted
anywhere
between
trusses using
hanger bars.
*Purchase
separately.
INSULATION*
(Place around and
over Fan Housing.)
ROOF CAP*
(with built-in
damper)
FAN
HOUSING
POWER
CABLE*
6-IN. ROUND
DUCT*
6-IN.
ROUND
ELBOWS*
Seal gaps
around
Housing.
Seal duct
joints with
tape.
OR
Keep duct
runs short.
WALL CAP*
(with built-in
damper)
Cooking
Equipment
Floor
COOKING AREA
Do not install above or
inside this area.
45º
45º
NOT FOR USE IN
A COOKING AREA.
PLAN THE INSTALLATION
2
Because of the large amount of models covered
by this publication, the illustrations are typical
ones. Some details of your unit may be slightly
different than the ones shown.
MODELS QTXE080C • QTXE090C • QTXE110C
• QTXEN080C • QTXEN090C • QTXEN110C
IMPORTANT - The ducting from this fan to the outside
of the building has a strong effect on the air fl ow, noise and
energy use of the fan. Use the shortest, straightest duct
routing possible for best performance, and avoid installing
the fan with smaller ducts than recommended. Insulation
around the ducts can reduce energy loss and inhibit mold
growth. Fans installed with existing ducts may not achieve
their rated air fl ow.
Use a roof cap or wall cap that has a built-in damper to
reduce backdrafts.
Plan to supply the unit with proper line voltage and
appropriate power cable.

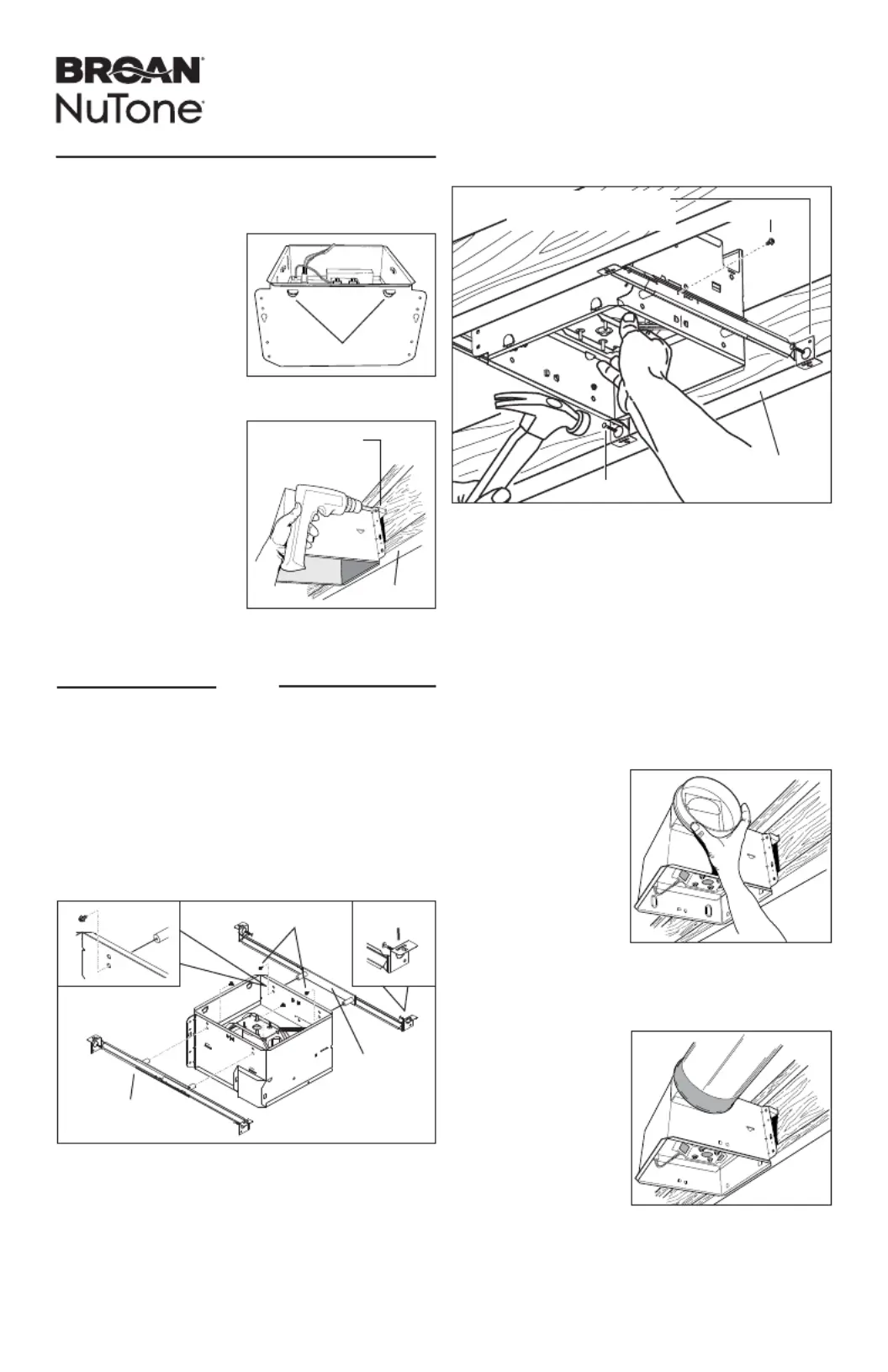

1b. Mount housing anywhere between trusses,
joists, or -joists using hanger bars.I
Sliding hanger bars are provided to allow for accurate
positioning of housing anywhere between framing.
They can be used on all types of framing (I-joist,
standard joist, and truss construction) and span up
to 24”.
Attach the MOUNTING CHANNELS to the housing
using the supplied. Make sureSCREWS TABS face
“up” as shown. Use the set of channel mounting
holes (marked “STD”) to mount the housing fl ush
with the bottom of the drywall. Use the other set of
holes (not marked) to mount the housing fl ush with
the top of the drywall.
STD
HANGER
BAR (4)
SCREWS (4) TAB
MOUNTING
CHANNEL (2)
Extend HANGER BARS to the width of the framing.
Hold ventilator in place with the hanger bar tabs
wrapping around the bottom edge of the framing.
Nail ventilator to framing or fasten with screws (not
provided) through near .HOLES NAILS
*To ensure a noise-free mount: Secure hanger
bars together with SCREWS or use pliers to crimp
mounting channels tightly around hanger bars.
*SCREW (2)
HOLE FOR OPTIONAL
SCREW MOUNTING (4)
NAIL (4)
BOTTOM EDGE
OF FRAMING
2. Attach
damper/duct
connector.
Snap damper/duct
connector onto
housing. Make
sure connector is
fl ush with top of
housing and damper
fl ap falls closed.
3. Install 6-inch
round ductwork.
Connect 6-inch
round ductwork
to damper/duct
connector. Run
ductwork to a roof
cap or wall cap.
Tape all ductwork
connections to
make them secure
and air tight.
INSTALL HOUSING & DUCT
1a. Mount housing to joist or -joist.I
Use pliers to bend
housing TABS
out to 90°. Hold
housing in place
so that the housing
tabs contact the
bottom of the joist.
The housing mounts
with four screws
or nails. Screw or
nail housing to joist
through lowest holes
in each mounting
fl ange, then through
highest holes.
NOTE: Mounting to
I-JOIST (shown)
re q ui r es u s e of
SPACERS (included)
between the highest
hole of each mounting fl ange and the .I-joist
TABS
SPACER
( USE FOR MOUNTING
TO -J )IOIST
I-JOIST
OR
3
MODELS QTXE080C • QTXE090C • QTXE110C
• QTXEN080C • QTXEN090C • QTXEN110C
