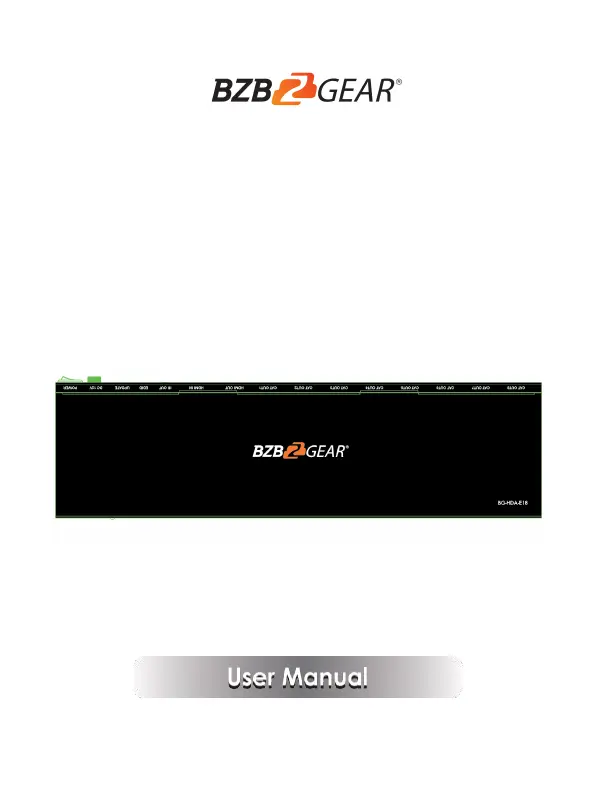

Seite 1/12
BG-HDA-E18
HDMI 1×8 Splitter over
CAT6 (70m)
Contact
1.888.499.9906 | support@bzbgear.com | bzbgear.com
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating, or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction. ......................................................................................... 1
2. Features. ............................................................................................... 1
3. Package Contents. .............................................................................. 1
4. Specifications. ...................................................................................... 2
5. Operation Controls and Functions. .................................................... 3
5.1 Transmitter Panel. ...........................................................................
3
5.2 Receiver Panel. ..............................................................................
4
5.3 IR Pin Definition ...............................................................................
5
6. EDID Mode. ........................................................................................... 6
7. Application Example ........................................................................... 7
8. Tech Support ........................................................................................ 8
9. Warranty ............................................................................................... 8
10. Mission Statement. ............................................................................ 9
-1-
1. Introduction
Thi HDMI 1x8 Splitter can distribute 1 HDMI source signal to an 8 display s y
devices. Supports video resolutions up to 4K2K@30H 4:4:4. It i designed z s
with1 HDMI input, 1 HDMI loop output and 8 CAT outputs. The HDMI signal
transmission distance can be extended up to 1 ft / 0 m at the resolution of64 5
4K30Hz, or 230 ft / 70 m at 1080P@60Hz via a single CAT6 cable. The
product supports one-way IR control signal pass-through and advanced EDID
management. It also supports one-way POC function.
2. Features
☆HDMI 1.4 and HDCP 1.4 compliant
☆Video resolution up to 4K2K@30Hz(4:4:4) 8-bit
☆Supported audio formats: LPCM 7.1CH, Dolby True HD, and DTS-H D
Master Audio
☆Extend the signal transmission distance up to 1 ft / 0 m at the64 5
resolution of 4K30Hz, or 230 ft / 70 m at 1080P@60Hz via a single CAT 6
cable
☆Support 1 HDMI input, 1 HDMI loop output and 8 CAT outputs.
☆Advanced EDID management
☆Support 12V POC function (only from transmitter to receiver)
☆Compact design for easy and exible installation
3. Package Contents
①1 × HDMI 1×8 Splitter
②8 × CAT Receiver
③1 × IR Blaster Cable (1.5 meters)
④8 × IR Receiver Cable (1.5 meters)
⑤2 × Mounting Ear
⑥1 × 12V/2.5A DC Locking Power Adapter
⑦8 × Machine Screw (KM3*4)
⑧1 × User Manual
