INSTALLATION INSTRUCTIONS

H1 FULLSNOOT (WH) / H1 HALFSNOOT (WH)

(LENS HOOD FOR H1 SPOTLIGHT)

PRODUCT INFORMATION

This item is a product-specific accessory intended exclusively for

use with Cameo H1 series spotlights.

These installation instructions do not replace the user manual of the

associated product. Always read the relevant user manual first.

These accessories have no influence on the intended use of the as-

sociated product.

Observe the safety instructions in the user manual of the associated

product!

The technical data given in the user manual may change in connec-

tion with this accessory.

SAFETY INSTRUCTIONS

1. Please read this manual carefully.

2. Keep all information and instructions in a safe place.

3. Follow the instructions.

4. Use the accessory in the prescribed manner only.

HAZARD: KEEP OUT OF THE REACH OF CHILDREN! THE PRODUCT

CONTAINS SMALL PARTS THAT CAN BE SWALLOWED AS WELL AS

PACKAGING MATERIAL THAT CAN BE SWALLOWED! PLASTIC BAGS

MUST BE KEPT OUT OF THE REACH OF CHILDREN!

INCLUDED

Remove the product from the packaging and remove all packaging

material.

Please check the completeness and integrity of the delivery and

notify your distribution partner immediately after purchase if the de-

livery is not complete or if it is damaged.

The product CLH1SNOOT(WH) includes:

- Snoot lens hood (A)

- Installation instructions

The product CLH1HALFSNOOT(WH) includes:

- Halfsnoot lens hood (B)

- Installation instructions

MOUNTING

1. Before installation, ensure that the spotlight is completely discon-

nected from the power supply.

2. Loosen the 4 screws from the end ring on the front of the spotlight

using a suitable tool and remove the end ring from the spotlight.

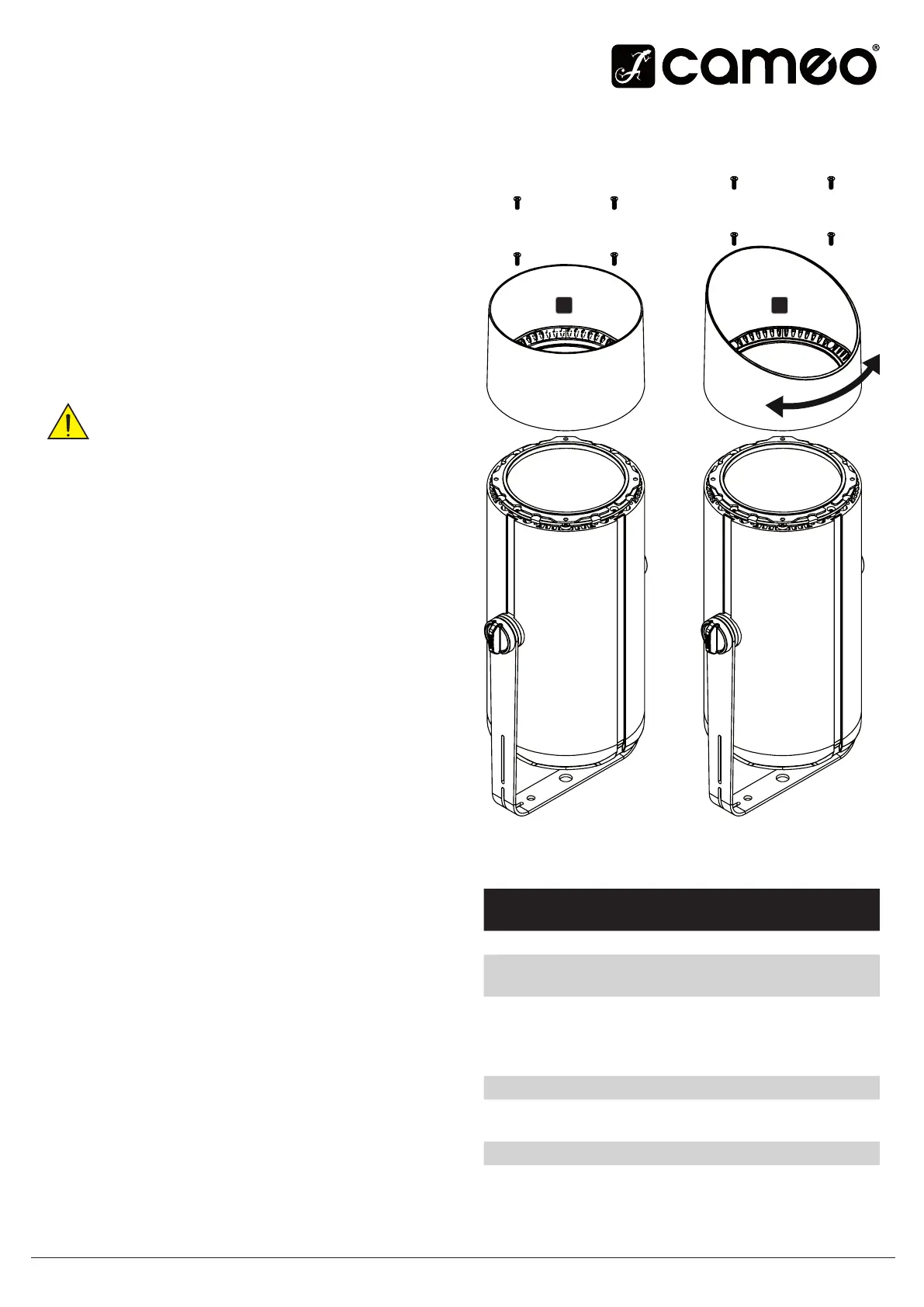

3. Place the snoot lens hood (A) or halfsnoot (B) on the front of the

spotlight and fasten it with the previously loosened screws (see illus-

tration).

Please note: The halfsnoot lens hood can be rotated when installed

on the spotlight and has 4 locking points at 0°, 90°, 180° and 270°.

In addition, the lens hood can be adjusted to any intermediate posi-

tion.

AB

Item

number:

CLH1SNOOT

(WH)

CLH1HALFSNOOT

(WH)

Product type:Spotlight accessorySpotlight accessory

Type:Snoot lens hood for

Cameo H1 series

Halfsnoot lens hood for

Cameo H1 series

Colour:black (CLH1SNOOT)

white (CLH1SNOOT-

WH)

black (CLH-

1HALFSNOOT)

white (CLH-

1HALFSNOOTWH)

Material:MetalMetal

Dimensions (Ø

x H):

128 x 76 mm128 x 45 / 99.6 mm

Weight:0.220 kg0.225 kg

TECHNICAL DATA
