6-2000

Shut-o Handle

Mango de cierre

Poignée du robinet

WARNING

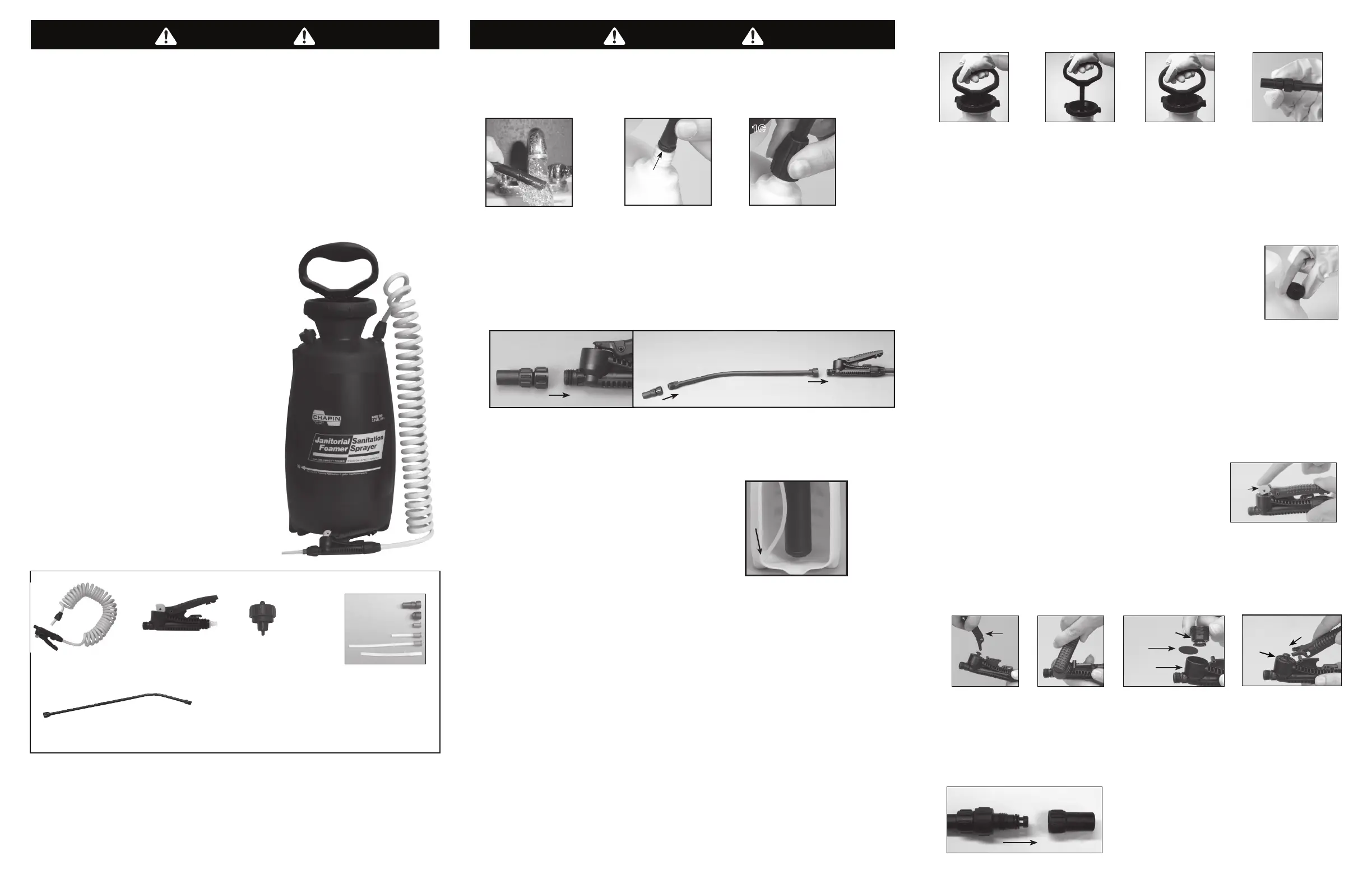

Parts, Piezas, Pièces

Repair Parts Kit Gaskets and Seals (not included),

Juego de piezas de reparación, empaquetaduras y juntas (no incluido)

Kit de pièces de réparation, joints et garniture d’étanchéité (non inclus) 6-1925

2. Nozzle

Attach nozzle to shut-o handle or extension wand.

5. Filling

1) Do: Turn pump handle counterclockwise and remove pump

2) Do: Prepare spray solution following all directions and safety warnings on chemical label.

3) Do: Fill tank to no more than the proper gallon marker. Do NOT: overll to accommodate pump.

4) Do: Check pump to make sure that no grass or dirt is stuck to barrel. Replace pump in tank and tighten securely.

6. Pressurizing and Spraying

8. Care, Storage and Maintenance

2-1091-50 (A) R0811

Adjust spray pattern by

turning nozzle cap. Do not

turn cap more than 2 turns

or cap may come o allowing

spray material to spray back

on you.

7. To Release Pressure

Do: With valve facing away from you, lift and hold the cap until air is completely

exhausted, OR, turn the valve slowly counterclockwise until you hear air escaping and

wait air is completely exhausted.

6-7749

Extension wand

Vara de extensión

Rallonge

1. Hose to Tank

Note:Your particular sprayer may not include all parts pictured above.

Nota: Es posible que este pulverizador en particular no incluya todas las partes que se ilustran arriba.

Remarque :Votre pulvérisateur particulier pourrait ne pas inclure toutes les pièces illustrées plus haut.

Do: Turn handle clock-

wise to tighten. Push

handle down, turn 1/4

turn counterclockwise

to release.

Do: Pump until you

feel resistance.

Do: Push handle,

down, turn 1/4 turn

clockwise to lock. Begin

spraying. Re-pump

sprayer as required to

maintain spray force.

7A

Pull handle straight up.

Insert notches from

underside of handle

into plunger grooves

and turn counter

-

clockwise.

Remove plunger and diaphragm.

Clean plunger, diaphragm

and body. Flip diaphragm and

replace.

Tighten plunger clockwise until

ush to top of shut-o body.

Do not over-tighten or unit

may not spray. Slide forks un

-

der plunger, push handle down

until it snaps into place.

10. Troubleshooting

-

Tank pressurizes but does not spray.

10A10B10C

Handle

Plunger

Body

Diaphragm

10D

Plunger ush

with body

WARNING:

Release pressure in tank before troubleshooting.

Clean Nozzle Assembly (Fig. 10E)

-Remove nozzle cap. Clean and re-assemble.

Clean shut-off (Fig. 10A- 10D)

9. Fatigue-Free Spraying

For constant spraying, push down on shut-o handle and move grey locking

mechanism away from you. To release, squeeze handle and move the grey locking

mechanism back towards you. ( Not all models are provided with this feature).

9A

Locking

mechanism

10E

Nozzle Cap

Congratulations!

You have just purchased a quality Chapin product.

Register Your Sprayer Online @ www.chapinmfg.com

Questions?

Do Not Return To Store.

Call us @ 1-800-950-4458 or www.chapinmfg.com

¡Felicitaciones!

Usted acaba de adquirir un producto de calidad Chapin.

Registre su pulverizador en línea en www.chapinmfg.com

¿Preguntas?

No regrese a la tienda;

llámenos al 1-800-950-4458 o visite www.chapinmfg.com

Félicitations!

Vous avez acheté un produit de qualité Chapin.

Enregistrez dès que possible votre pulvérisateur en ligne à l'adresse

suivante:

www.chapinmfg.com

Questions ?

Ne retournez pas au magasin.

Appelez-nous 1-800-950-4458 ou visitez le www.chapinmfg.com

3. Filter

e lter helps prevent clogging while spraying. It is located on

the end of the outlet tube inside your sprayer tank.To clean lter,

remove the discharge assembly from the tank (Fig.1A, 3A). Make

sure the lter is positioned at the bottom of the tank as pictured

Note: Filters are not supplied with deck sprayers.

Filter

3A

6B6A6C6D

3-4852 (2658E)

3-4853 (2659E)

3-4854 (2660E)

Nozzle Kit

Juego de boquillas

Kit de Buse

WARNING

To prevent hose from blowing o, hose must cover both barbs and touch

ange (g. 2) before hose nut is tightened (g. 3).

Do: Place end of hose under

hot tap water for 1 minute.

is will soften the hose

and help insure the hose is

pushed all the way down to

the ange.

Do: Push hose until it

covers both barbs and

touches the ange.

Do: Slide nut down over

threads. Turn nut clock-

wise as tight as possible.

1A1B1C

Flange

WARNING:Handling the brass parts of this product will expose you

to lead, a chemical known to the State of California to cause birth

defects and other reproductive harm. Wash hands after handling.

6-4645

Pressure Relief Valve

Válvula de descarga de presión

Soupape de décompression

3-66211

Hose

Manguera

Tuyau

Sk-1154-1

WARNING: Improper use or failure to follow instructions can result in explosive failure caus-

ing serious eye or other injury. For safe use of this product you must read and follow all instruc-

tions. Do not leave a pressurized sprayer in the hot sun. Heat can cause pressure build-up resulting

in possible explosion. Do not store or leave solution in tank after use. Always wear goggles, gloves,

long sleeve shirt, long pants and full foot protection when spraying. Never use any tool to remove

pump if there is pressure in sprayer. Never stand with face or body over top of tank when pumping

or loosening pump to prevent ejecting pump assembly and/or solution from striking and injuring

you. Never pressurize sprayer by any means other than the original pump. Do not attempt to modify

this sprayer. Replace parts only with manufacturer’s original parts. Never spray ammable, caustic,

acidic, chlorine, bleach or other corrosive solutions or heat, pressure, or gas producing chemi-

cals. Always read and follow chemical manufacturer’s instructions before use with this sprayer

as some chemicals may be hazardous when used with this sprayer.

4. Pre-Use Check

1) Do: Check tightness of hose nut to be sure hose is securely attached to the tank outlet.

2) Do: Inspect hose for deterioration, cracks, softness, or brittleness. If any of these conditions are found,

Replace hose before using. Replace with original manufacturer’s parts only.

3) Do: Remove pump (see Filling, Pressurizing and Spraying Instructions), inspect interior and exterior of tank

for signs of deterioration of body and bottom. Any sign of deterioration indicates possible tank weakening

and could result in explosive bursting under pressure. If any of these signs are found, discard tank immedi

ately and replace. Do not attempt to patch leaks, etc., as this could result in serious injury.

4) Do: Follow Filling, Pressurizing and Spraying Instructions, except use water only (Pump plunger 10-20

strokes and inspect for leaks).

5) Do: Direct shut-o away from you and open to make sure discharge is not clogged.

6) Do: If unit passes this test, release pressure (see Pressure Releasing Instructions), empty tank, and proceed

with Filling, Pressurizing and Spraying Instructions.

7) Do: Inspect all metal parts including the wand, nozzle and ttings for rust, corrosion and pitting. If any of

these conditions are found, replace aected part with original manufacturer’s part before using.

1) Do: Rinse tank thoroughly with water only, empty, rell with water. Follow Filling, Pressurizing and Spraying

Instructions, except pump unit only 8-10 strokes. Be sure that the wand and nozzle are thoroughly rinsed with water

after each use.

2) Do: Open shut-o and allow water to run through discharge assembly.

3) Do: Release pressure (Follow Pressure Release Instructions), remove pump and empty sprayer.

4) Do: Store sprayer tank upside down, with pump removed, in a warm dry location.

5) Do: Periodically oil pump by dropping 10-12 drops of light oil down pump rod through opening in cover.
