I N S T A L L A T I O N I N S T R U C T I O N S

Clamp-Style Column Base

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

CPA353

CPA353 Installation Instructions

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and

subsidiaries (collectively “Milestone”), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the

primary Chief product to which an accessory and/or component

is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief

product which is attached to a primary Chief product, and may

have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item

designed to be attached or resting on an accessory or mounting

system such as a video camera, CPU, screen, display,

projector, etc.

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all accessories are

properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this accessory can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to

make sure the structure to which this accessory is attached

can support five times the combined weight of all equipment.

Reinforce the structure as required before installing the

accessory.

WARNING:

Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components attached to accessory does not exceed 500 lbs

(226.8 kg).

•The weight capacity of the CPA353 may be

LIMITED to the lowest weight capacity of any other

component or accessory used within the mounting

system.

WARNING: Use this accessory only for its intended use as

described in these instructions. Do not use attachments not

recommended by the manufacturer.

WARNING: Never operate this accessory if it is damaged.

Return the accessory to a service center for examination and

repair.

WARNING: Do not use this accessory outdoors.

IMPORTANT ! : The CPA353 accessory is designed to

be:

•mounted to a 2" x 6" wood framework (hardware

not included) covered with 5/8" drywall (ceiling);

•mounted to an 8" concrete structure using either

1/4" x 2-1/2" lag bolts for Toggler AF8 anchors

(not included), or 5/16" x 2-1/2" lag bolts for

Fischer UX10 concrete anchors (not included).

NOTE: The CPA353 may be used with the UL Listed CPA

Extension Column series, CPA Perforated Extension

Column series, UL Listed CMS Extension Column

series, CMA ceiling plates and CPA ceiling plates.

WARNING: Do NOT attach to vertical mounting surfaces

such as walls or angled ceilings!

WARNING: The CPA353 MUST be used along with a

second CPA353 [one as a ceiling attachment, one as a floor

attachment] OR as a floor attachment in conjunction with a

CPA or CMA ceiling plate as a ceiling attachment. The

CPA353 may NOT be used as a ceiling plate without a

second CPA353 as a floor attachment.

--SAVE THESE INSTRUCTIONS--

Installation Instructions CPA353

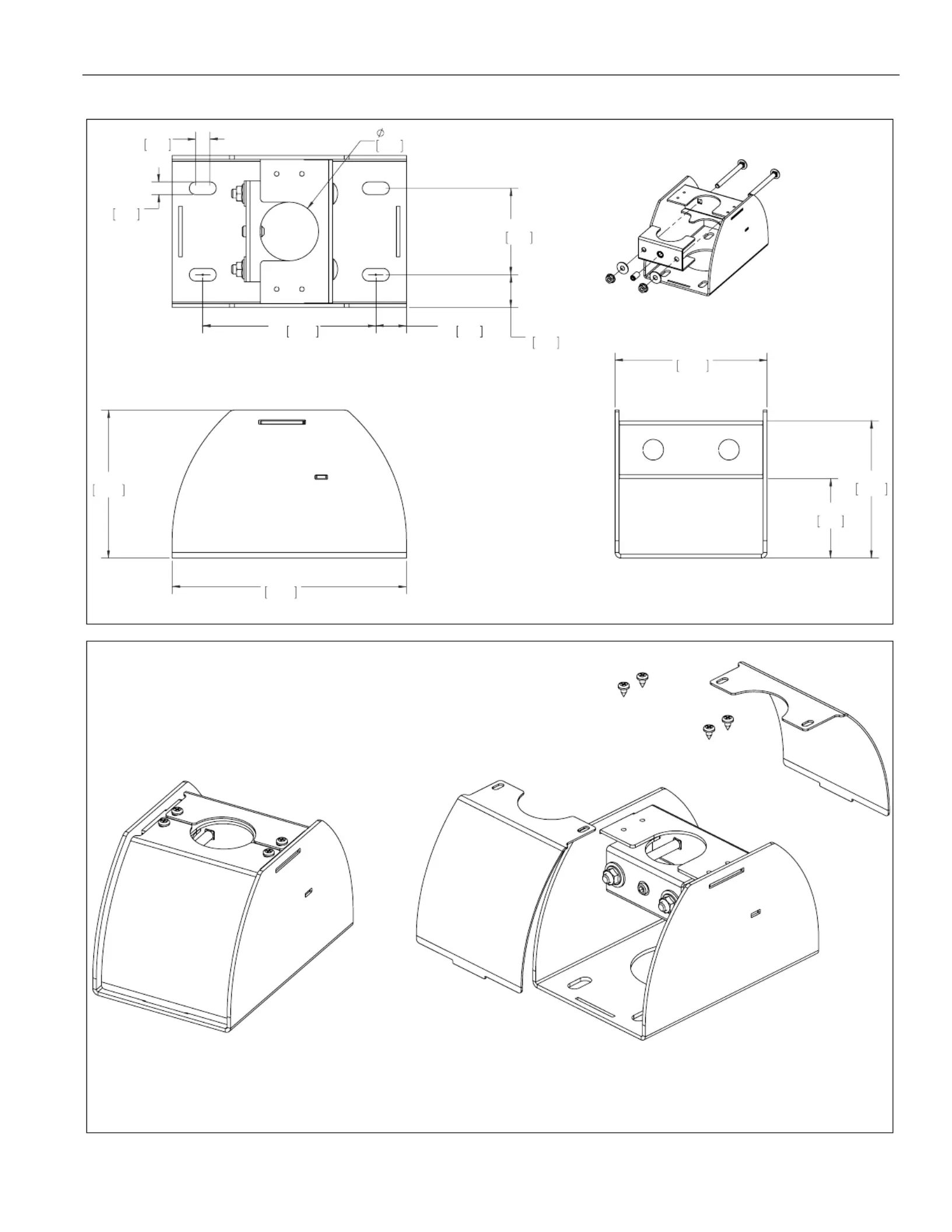

DIMENSIONS

5.13

130.4

8.13

206.4

1.13

28.8

2 X 3.00

76.2

2.03

51.6

4 X

0.50

12.7

4 X 0.44

11.1

2 X 1.06

27.0

2 X 6.00

152.4

5.27

133.8

2.76

70.1

4.76

120.9

DIMENSIONS: INCHES

[MILLIMETERS]

WITH COVER

INCLUDED

COVER INSTALLATION

DIMENSIONS: INCHES

[MILLIMETERS]

Produktspezifikationen

Marke:	Chief
Kategorie:	Nicht kategorisiert
Modell:	CPA353
Produktfarbe:	Schwarz
Befestigungstyp:	Decke/Boden
Höchstgewichtskapazität:	227 kg
Menge pro Packung:	1 Stück(e)
Kompatibilität:	CPA, CMS
Anzahl der Display unterstützt:	1
