Seite 1/12

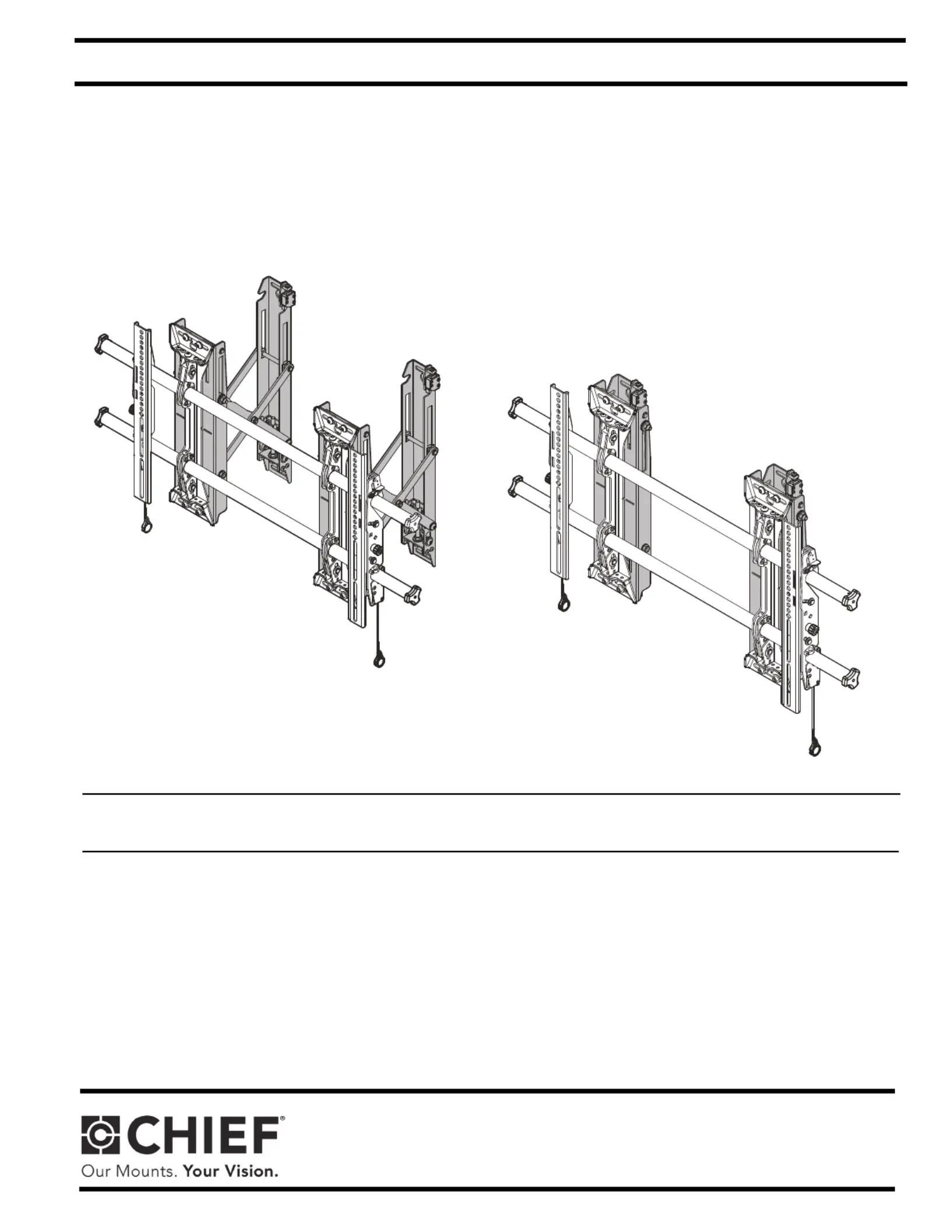

I N S T A L L A T I O N I N S T R U C T I O N S
(Shown on LTM1U)
Fully extended
(Shown on LTM1U)
Fully retracted
Fusion Pull-Out Accessory
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
FCAV1U
FCAV1U Installation Instructions
2
DISCLAIMER
Milestone AV Technologies and its affiliated corporations and
subsidiaries (collectively "Milestone"), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
Chief® is a registered trademark of Milestone AV Technologies.
All rights reserved.
DEFINITIONS
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
MOUNTING SYSTEM: A MOUNTING SYSTEM is the
primary Chief product to which an accessory and/or component
is attached.
ACCESSORY: AN ACCESSORY is the secondary Chief
product which is attached to a primary Chief product, and may
have a component attached or setting on it.
COMPONENT: A COMPONENT is an audiovisual item
designed to be attached or resting on an accessory or mounting
system such as a video camera, CPU, screen, display,
projector, etc.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all products are
properly assembled and installed using the instructions
provided.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! Adding the
FCAV1U accessory may change the weight capacity listed
for the mounting system. Consult (Table 1) for mounting
system’s weight capacity details when attached to FCAV1U.
Table 1: Weight Capacity When Attached to FCAV1U
WARNING: Use this accessory only for its intended use as
described in these instructions. Do not use attachments not
recommended by the manufacturer.
WARNING: Never operate this accessory if it is damaged.
Return the accessory to a service center for examination and
repair.
WARNING: Do not use this product outdoors.
IMPORTANT ! :
The FCAV1U accessory is designed to be
mounted to:
• a bare 8" concrete or 8"x8"x16" concrete block wall, or
• a 2" x 4" wood studs wall covered by drywall with
maximum thickness of 5/8":
•MSM1U/MTM1U/MTMP1U: Wood studs must be
16" on center;
• LSM1U/LTM1U: Wood studs may be 16" or 24"
on center;
• XSM1U/XTM1U: Wood studs may be 24" or 32"
on center.
NOTE: Accessory is intended to be used with the following
Chief mounting systems (not included):
--SAVE THESE INSTRUCTIONS--
MODEL Maximum Weight Allowed
MTM1U 125 lbs (56.7 kg)
MSM1U 125 lbs (56.7 kg)
MTMP1U 125 lbs (56.7 kg) mounted to single 2"x4" wood stud
150 lbs (68.0 kg) mounted to double 2"x4" wood studs
LTM1U 150 lbs (68.0 kg)
LSM1U 150 lbs (68.0 kg)
XSM1U 150 lbs (68.0 kg)
XTM1U 150 lbs (68.0 kg)
• MTM1U
• MSM1U
• MTMP1U
• LTM1U
• LSM1U
• XTM1U
• XSM1U
Installation Instructions FCAV1U
3
DIMENSIONS
17.50
444.5
FULL EXTENSION
AT 0° PLUMB
SCREW DRIVEN RETAINER
LATCH
1.56
39.7
19.50
495.3
FULL RETRACTION
AT 0° PLUMB
FCAV1U INCLUDES TWO ASSEMBLIES
DIMENSIONS: INCHES
[MILLIMETERS]
0.5°
MAX DOWN
PLUMB
1.56
39.7
AT 0°
2°
MAX UP
PLUMB
A
DETAIL A
SCALE 1 : 2
DIMENSIONS: INCHES
[MILLIMETERS]
