I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
KRA221 (standard)
KRA221XRH (reduced height)
Kontour™ K1C Add-on Arm Accessory
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
KRA221
KRA221 Installation Instructions
2
DISCLAIMER
Milestone AV Technologies and its affiliated corporations and
subsidiaries (collectively “Milestone”), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
Chief® and Kontour™ are registered trademarks of Milestone
AV Technologies. All rights reserved.
DEFINITIONS
MOUNTING SYSTEM: A MOUNTING SYSTEM is the
primary Chief product to which an accessory and/or component
is attached.
ACCESSORY: AN ACCESSORY is the secondary Chief
product which is attached to a primary Chief product, and may
have a component attached or setting on it.
COMPONENT: A COMPONENT is an audiovisual item
designed to be attached or resting on an accessory or mounting
system such as a video camera, CPU, screen, display,
projector, etc.
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
IMPORTANT SAFETY INSTRUCTIONS!
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all accessories are
properly assembled and installed using the instructions
provided.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components between each KRA221 accessory and the
desk up to (and including) the display does not exceed the
weight limits listed in the table below. Use with products
heavier than the maximum weight indicated may result in
collapse of the mount and its accessories causing possible
injury.
WARNING: Use this accessory only for its intended use as
described in these instructions. Do not use attachments not
recommended by the manufacturer.
WARNING: Never operate this accessory if it is damaged.
Return the accessory to a service center for examination and
repair.
WARNING: Do not use this product outdoors.
--SAVE THESE INSTRUCTIONS--
CONFIGURATION Max Weight
Allowed for
EACH
Display
Max Weight
Capacity of
Mounting System
2-DISPLAY
CONFIGURATION
25lbs
(11.34 kg)
50 lbs
(22.68 kg)
3-DISPLAY
CONFIGURATION
15 lbs
(6.8 kg)
45 lbs
(20.4 kg)
4-DISPLAY
CONFIGURATION
10 lbs
(4.54 kg)
40 lbs
(18.14 kg)
Installation Instructions KRA221
3

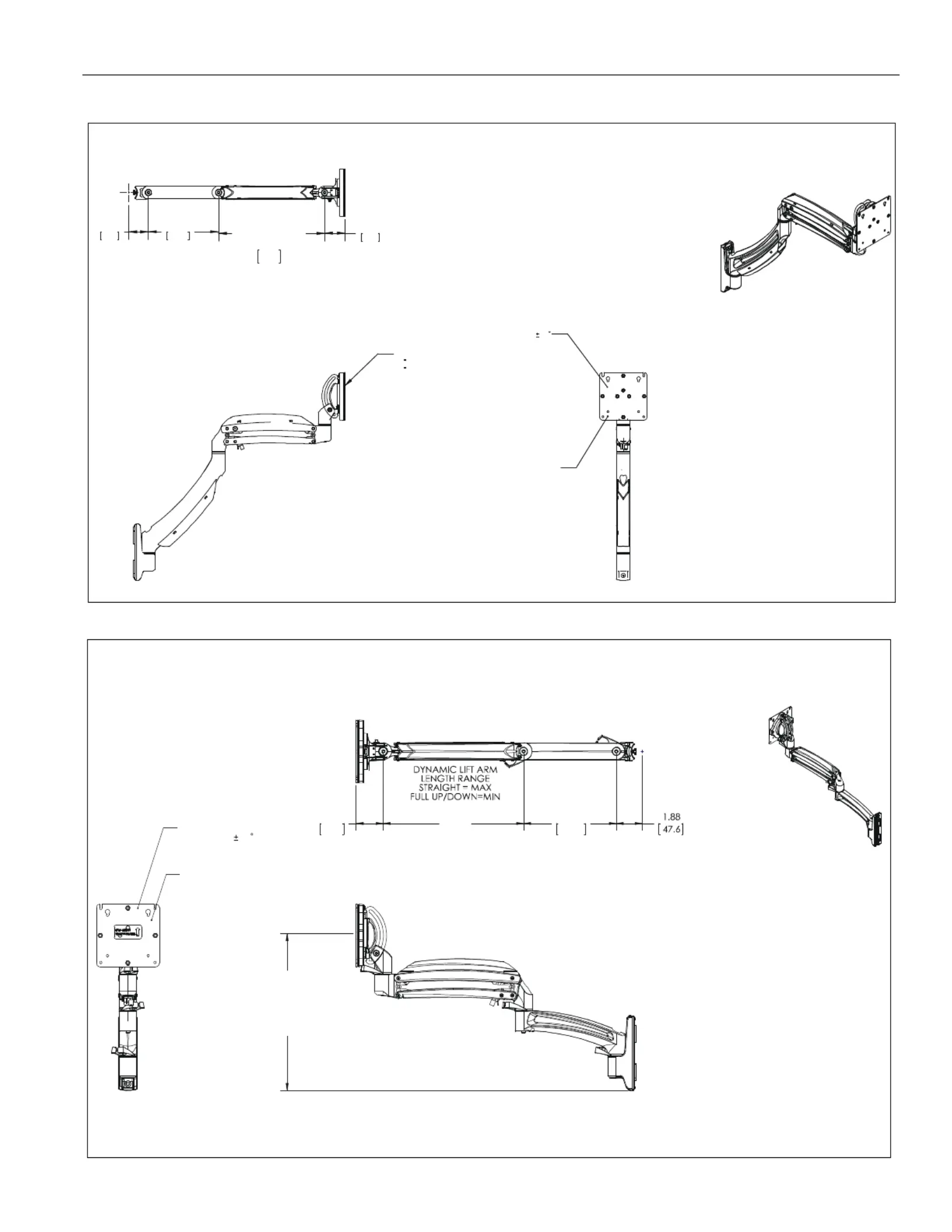

DIMENSIONS
KRA221 (Standard)
TILT RANGE
75
UP
10
DOWN
1.97
50.1
6.75
171.5
DYNAMIC LIT ARM
LENGTH RANGE
STRAIGHT = MAX
FULL UP/DOWN = MIN
10.21
7.12
259.3
180.9
1.88
47.6
INTERFACE ROTATION
RANGE
90
MOUNTING PATTERN
COMPATIBILITY
100 X 100
75 X 75
KRA221xRH (reduced height)
HEIGHT ADJUST
RANGE
17.70
4.29
[451.87]
[121.67]
INTERFACE ROTATION
RANGE
90
MOUNTING PATTERN
COMPATABILITY
100 X 100
75 X 75
10.21
7.21
[259.3]
[180.9]
1.97
50.1
6.75
171.5
