I N S T A L L A T I O N I N S T R U C T I O N S

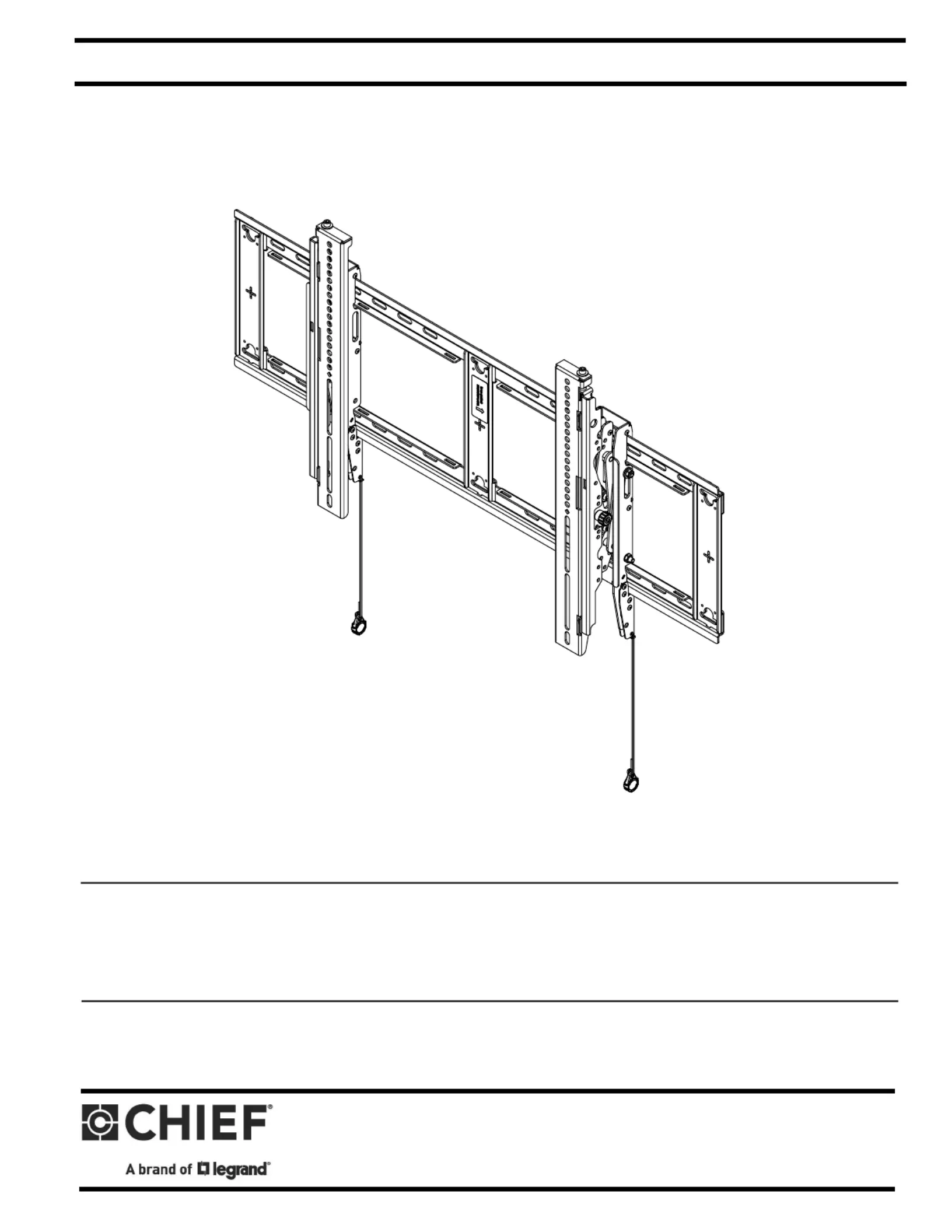

FIT LARGE EXTENDING TILT FLAT PANEL MOUNT

Spanish Product Description

German Product Description

RLXT3

RLXT3 Installation Instructions

DISCLAIMER

Legrand AV and its affiliated corporations and subsidiaries |

(collectively “Legrand AV”), intend to make this manual |

accurate and complete. However, Legrand AV makes no claim |

that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Legrand AV |

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Legrand AV |

assumes no responsibility for accuracy, completeness or

sufficiency of the information contained in this document.

Chief® is a registered trademark of Legrand AV Inc.|

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the

primary Chief product to which an accessory and/or component

is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief

product which is attached to a primary Chief product, and may

have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item

designed to be attached or resting on an accessory or mounting

system such as a video camera, CPU, screen, display,

projector, etc.

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all mounting systems

are properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this mounting system can result in serious personal injury

or damage to equipment! It is the installer’s responsibility to

make sure the structure to which this mounting system is

attached can support five times the combined weight of all

equipment. Reinforce the structure as required before

installing the mounting system.

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components and accessories attached to RLXT3 does not

exceed 150 lbs (68.0 kg).

WARNING: Use this mounting system only for its intended

use as described in these instructions. Do not use

attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is

damaged. Return the mounting system to a service center for

examination and repair.

WARNING: Do not use this mounting system outdoors.

IMPORTANT ! :

The RLXT3 mount is designed to be mounted

to:

• a bare 8" concrete or 8"x8"x16" concrete block wall;

• a steel stud (16" on-center minimum, 24" on-center

maximum) wall with drywall thickness between 1/2"

(min) and 5/8" (max);

• a 2" x 4" wood stud wall covered by drywall with

thickness between 1/2" (min) and 5/8" (max):

•Wood studs must be 16" or 24" on center.

--SAVE THESE INSTRUCTIONS--

Installation Instructions RLXT3

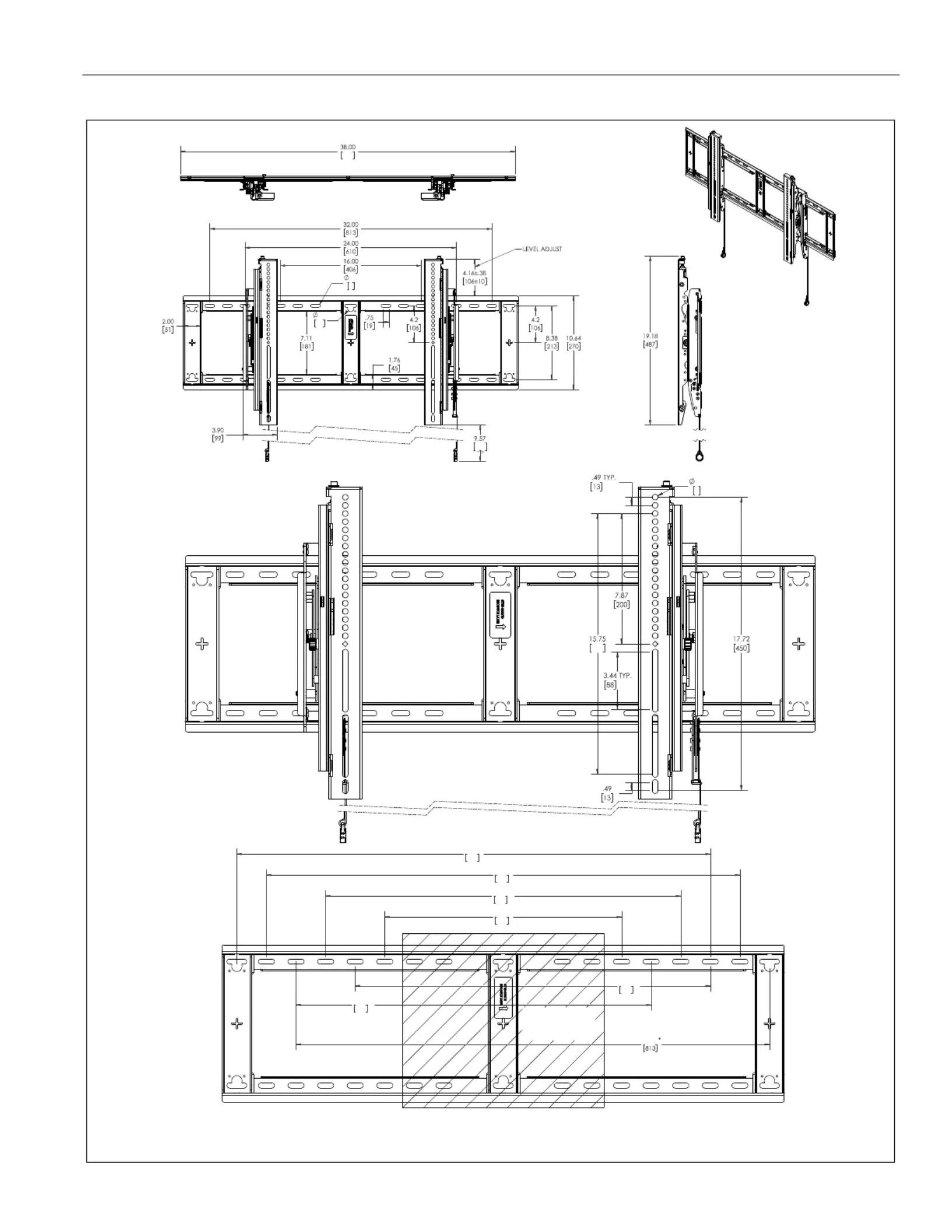

DIMENSIONS

DIMENSIONS: INCHES

[MILLIMETERS]

96 5

.70

.34

243

CORD LENGTH

PAST UPRIG HTS

400

.34

TYP.

16.00

40 6

24.00

61 0

32.00

81 3

24 .00

610

24.00

61 0

32 .00

813

32.00

NON WALL

MOUNTING

AREA

* DENOTES AC C EP TAB LE 16 " STUD SP A CIN G

** DENOTE S A C C EP TAB LE 24 " ST UD SPA C IN G

Produktspezifikationen

Marke:	Chief
Kategorie:	Flachbildschirmunterstützung
Modell:	RLXT3
Breite:	965 mm
Produktfarbe:	Schwarz
Höhe:	487 mm
Höhenverstellung:	Ja
Befestigungstyp:	Wand
Höchstgewichtskapazität:	68 kg
Neigungsverstellung:	Ja
Paketgewicht:	9600 g
Menge pro Packung:	1 Paar(e)
Neigungswinkelbereich:	-10 - 10 °
Maximale Bildschirmgröße:	85 "
Anzahl der Display unterstützt:	1
Minimum Bildschirmgröße:	43 "
Minimale VESA-Halterung:	- mm
Maximale VESA-Halterung:	863 x 450 mm
Höhenanpassungsart:	Manuell
Tiefe (max):	68 mm
Tiefe (min):	68 mm
