I N S T A L L A T I O N I N S T R U C T I O N S

SLB-307 and SLM-307 Interface Brackets

SLB-307 and SLM-307 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific installation instructions

provided with the mount for additional installation information.

Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.

WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND

DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!

Installation Instructions

WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND

DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface brackets.

NOTE: Step 1 is only required when installing an SLB interface bracket. If an SLM bracket is being installed, proceed to step 2.

1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.

2. Turn projector upside down on a flat surface.

3. Place the interface bracket onto the bottom of the projector, aligning the mounting holes in the bracket with the threaded inserts in the

bottom of the projector and ensuring that triangle in bracket points towards front of projector.

4. Position M6 x 12mm mounting screws with M6 flat washers over the interface bracket and into the projector threaded inserts and bracket

side tabs. Tighten all fasteners at this time, securing the bracket to the projector.

NOTE: Security screws can be substituted when mounting Interface bracket to projector by using the parts and installation instructions in the

All-Points Security Kit.

(1) Interface Bracket (4) Screw, Phillips Pan Head, Machine, M6 x 12mm

(4) 10-24 Thumb Nuts ** (4) Screw, Button Head Security, M6 x 12mm

(1) All-Points Security Kit (4) Washer, M6

(1) 5/32" Security Hex Key

**Only used when installing SLB interface brackets.

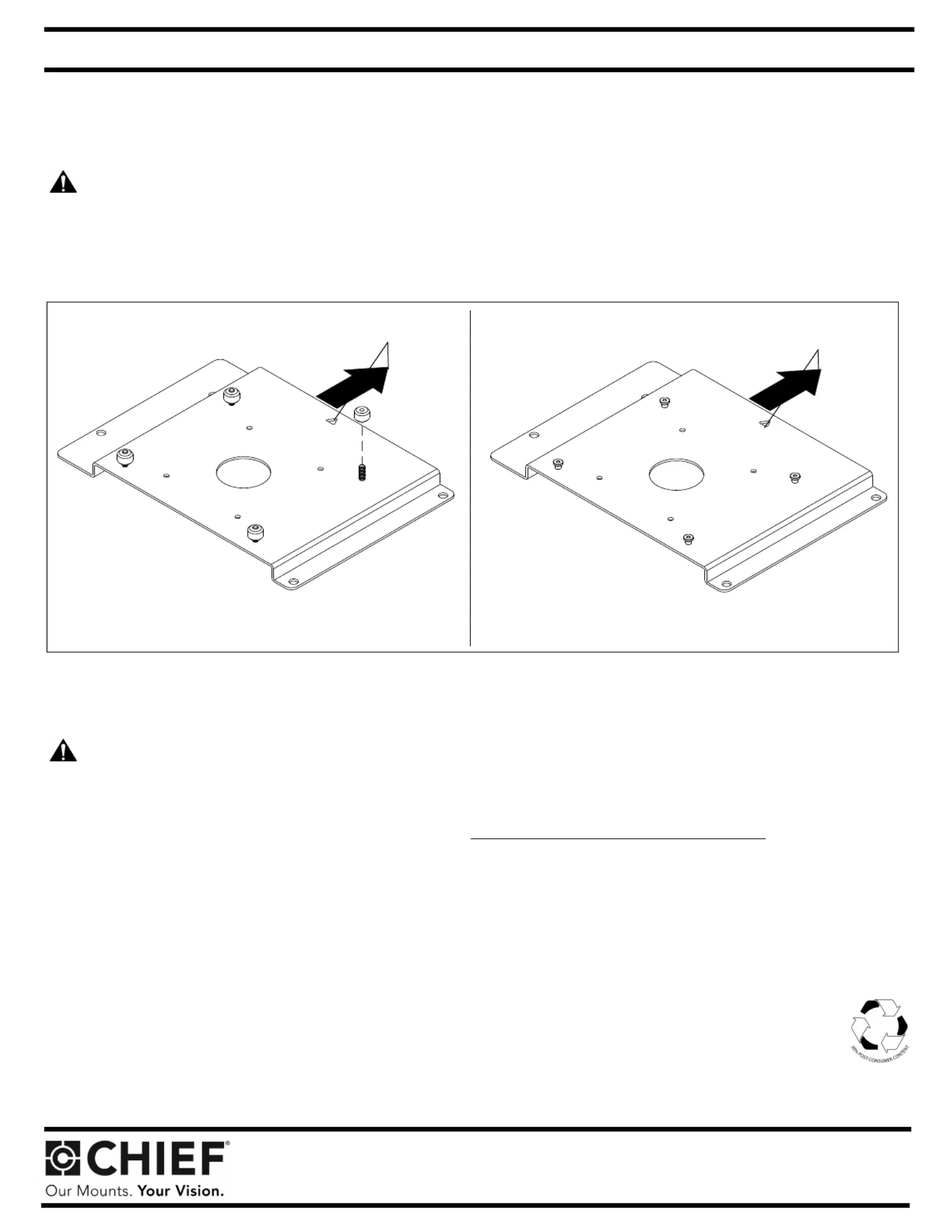

SLB-307

SLM-307

Towards front

of projector

Towards front

of projector
