8800-002515 Rev00
©2013 Milestone AV Technologies,
a Duchossois Group Company
11/13
Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes
no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use
of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or
implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
Chief Manufacturing, a products division of Milestone AV Technologies
6436 City West Parkway, Eden Prairie, MN 55344
• P: 800.582.6480 / 952.225.6000 • F:877.894.6918 / 952.894.6918
INSTALLATION INSTRUCTIONS
SSB-318, SSM-318, SLB-318 and SLM-318 Interface Brackets
SSB-318, SSM-318, SLB-318 and SLM-318 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific
installation instructions provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING:IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT!DO NOT substitute hardware. Use only hardware supplied by manufacturer!
Installation Instructions
WARNING:OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface brackets.
NOTE:Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
1.Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2.Turn projector upside down on a flat surface.
3.Place the spacers over the threaded inserts on the bottom of the projector.
4.Place the interface bracket onto the spacers, aligning the mounting holes in the bracket with the spacers and threaded inserts in the bottom
of the projector and ensuring that triangle in bracket points towards front of projector.
5.Position M4 x 25mm mounting screws through the interface bracket, and into the spacers and threaded inserts. Tighten all fasteners at
this time, securing the bracket to the projector.
NOTE:Security screws can be substituted when mounting Interface bracket to projector by using the parts and installation
instructions in the All-Points Security Kit.
Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
(1) Interface Bracket(4) Spacer, .500 x .316 x .500
(4) 10-24 Thumb Nuts **(4) Screw, Phillips Flat Head, Machine, M4 x 25mm
(1) All-Points Security Kit(1) 5/32" Security Hex Key
**Only used when installing SLB/SSB interface brackets.

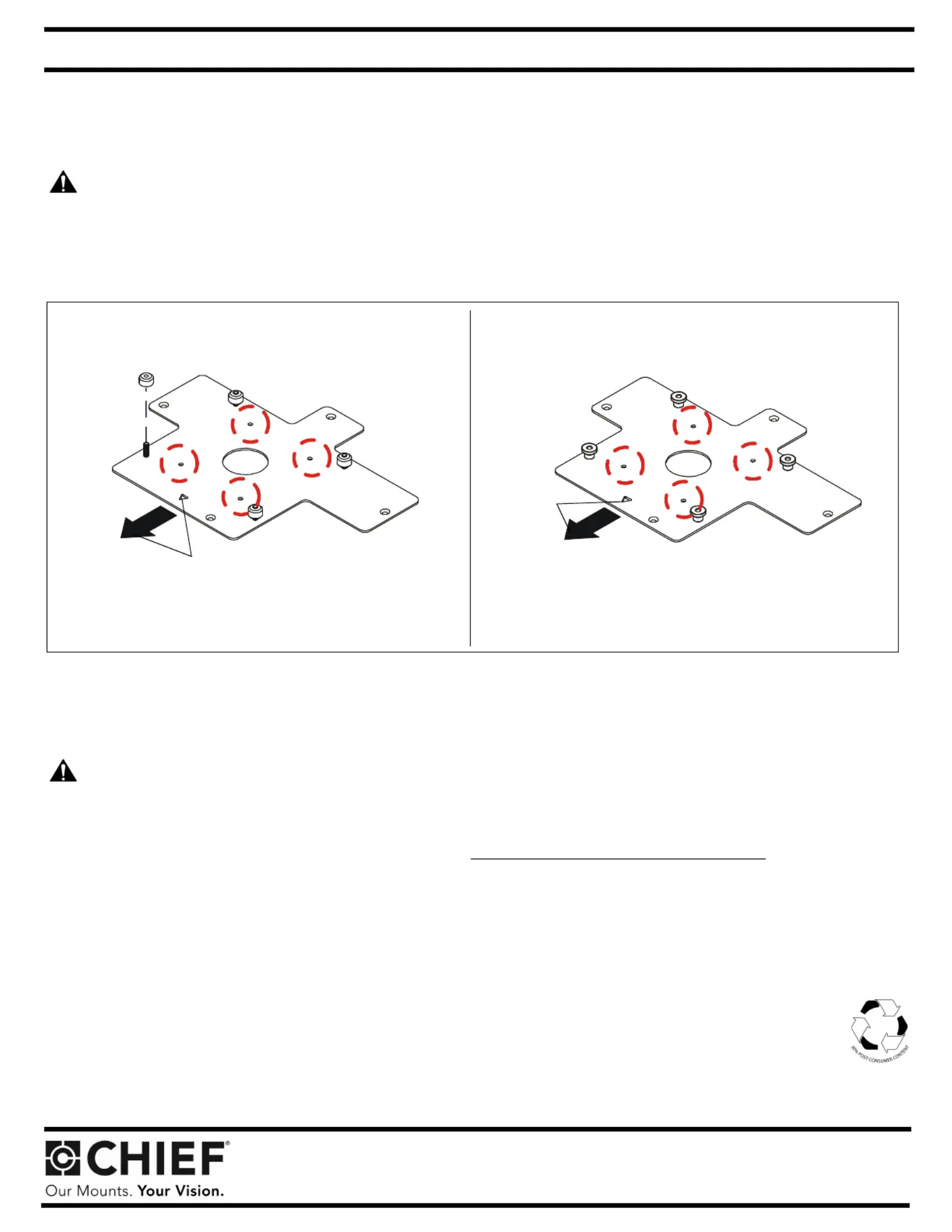

NOTE:Specific to SSB-style and SSM-style interface bracket installation: All appropriate screws come pre-installed in the circled locations above.
DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style interface bracket installation.
Note: SSB-style interface bracket connections are circled.Note: SSM-style interface bracket connections are circled.
SLB-318
SLM-318
Towards front
of projector
Towards front
of projector
Produktspezifikationen
| Marke: | Chief |
| Kategorie: | Beamerzubehör |
| Modell: | RPMA318 |
| Breite: | 165.1 mm |
| Tiefe: | 139.7 mm |
| Produktfarbe: | Schwarz |
| Höhe: | 70.86 mm |
| Höchstgewichtskapazität: | 22.7 kg |
| Zertifizierung: | TUV\nUL Listed |
| Menge pro Packung: | 1 Stück(e) |
| Markenkompatibilität: | Chief |
| Anpassbar: | Ja |
