Seite 1/2

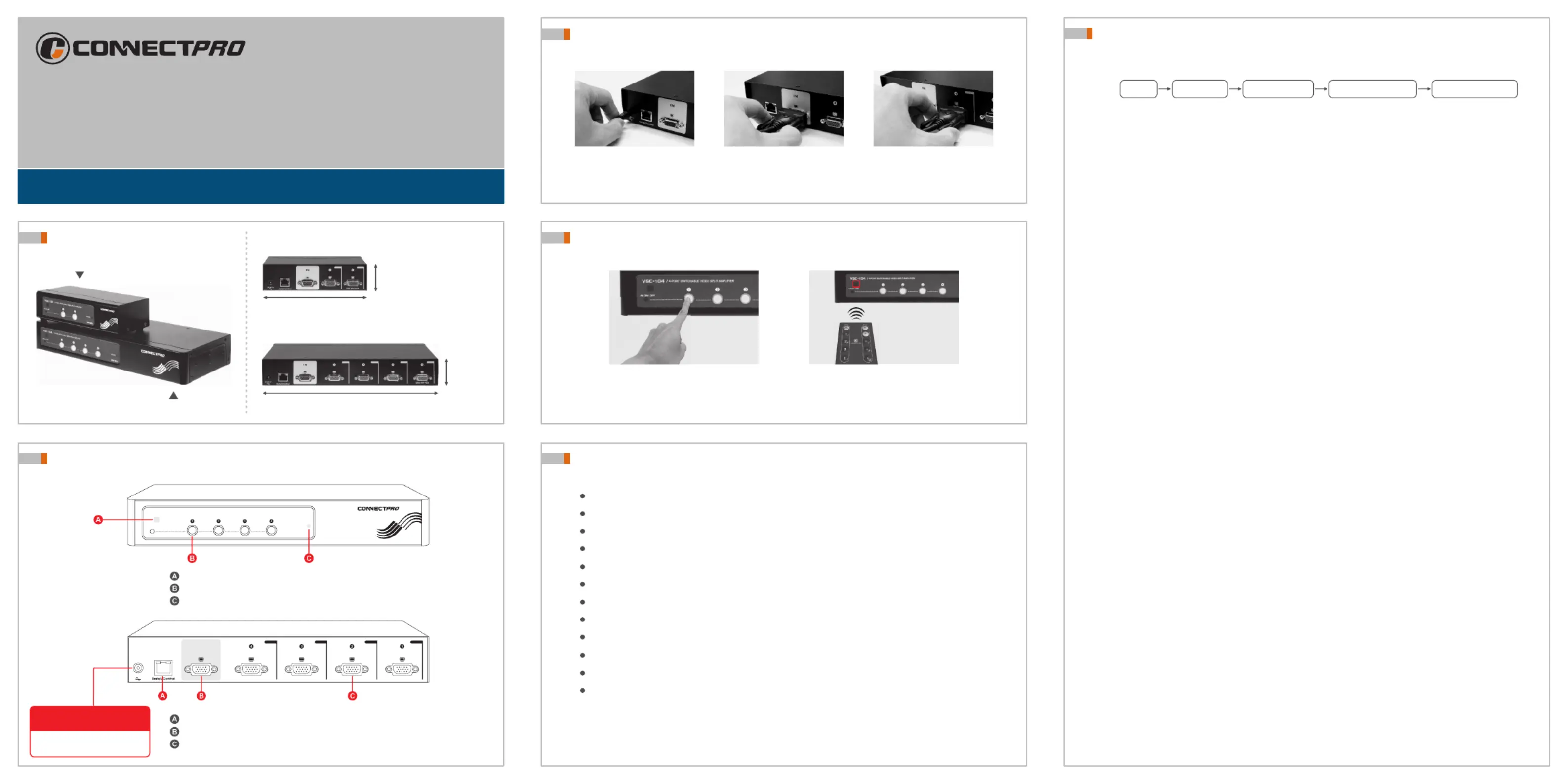

Connect Cables

1 2

Connect device video port

Connect system video port

Connect power adaptor

Port Selection

Press button to select

port for control

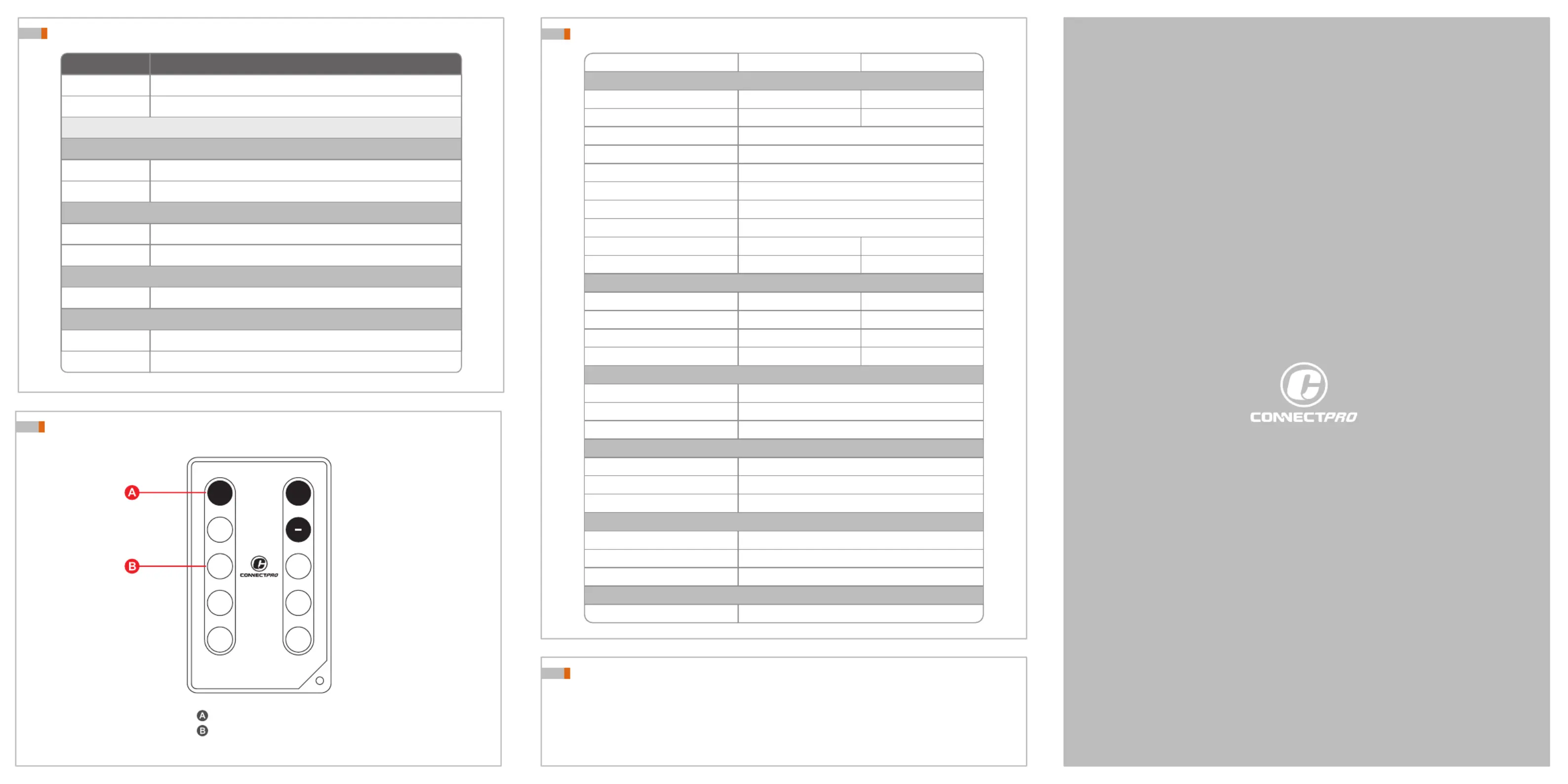

Use IR remote controller for

( optional )

selecting port

Product View

Front & Rear View

RS-232 Command ( Example for Windows only )

Features & Benefits

Installation Guide

Professional video splitter w/ on/off control

VSC-102

VSC-104

VSC-102

VSC-104

165 mm ( 6.5 inch )

275 mm ( 10.83 inch )

44 mm

( 1.73 inch )

VSC-102

VSC-104

44 mm

( 1.73 inch )

9V AC in

DD C Pn P Por t

VGA I N

VSC -104

PORT SWITCHABLE VIDEO SPLIT AMPLIFIER

400 MHz

All ON / OFF

Serial port for extra control and firmware upgrade

VGA connection for LCD or CRT monitor

Video ports for connecting systems

IR Remote Control Sensor

Push-button selection

VGA input indicator

Power input

AC 9V 500 mA

Video split amplifier are designed

for effectively saving energy.

1). In hyper terminal

a).create a "new connection"

b). Type in a name for the connection ( for example, VSC-104 ), click "OK"

2). Under "connect using" select "Direct to Com N ( N:1, 2, 3... )", click "OK"

3). Com 1 setup

a). Set "Bits per second" to 9600

b). Set "Data Bits" to 8

c). Set "parity check bit" to "None"

d). Set "Stop Bits" to 1

e). Set "Flow control" to "None"

Then Click OK - the hyper terminal screen should appear

4). Click "File", select "Properties" from the menu bar

5). Click on "settings", use default:

a). "Windows key"

b). "Ctrl + H(C)"

c). Auto detect and back scroll 500 lines

6). Go to "ASCII setup" and select the following items

a). Sending - check: "send line ends with line feed" and "echo typed

characters locally" box

b). Receiving - check: "wrap long lines"

1). Power on VSC unit and the control window will pop up immediately

2). Now you see "VSC Link", version such as "VSC-104 F/W:V 1.1" and

status such as "s1v1"

3). You are ready to do all commands now !!

1. From Windows

2. Set up Windows hyper terminal

3. After the above actions

Click on "Start", choose "Program", choose "Accessories",

select "Communication", then click on "Hyper Terminal"

Start

Program

Accessories

Hyper Terminal

Communication

4. Serial port command

s1v0 : show all status

s1v1 : select video port 1

s1v2 : select video port 2

s1v3 : select video port 3

s1v4 : select video port 4

Channel port selectable ( all on/off or individual on/off )

Duplicates one VGA video input to multiple outputs

Effective transmission distance: 65M (210 ft.)

400 MHz with support for high resolution up to 2048 x 1536

Applicable to VGA, SVGA, Multi-Sync monitors

Cascaded operation for increased VGA output

Optimized port for DDC compatible output

Channel on/off control via push button, I.R or serial port

Video presentations and demonstrations

Video exhibits and tradeshow displays

Monitor testing and burn-in

Business meetings and client pitches

Produktspezifikationen

Marke:	ConnectPro
Kategorie:	Nicht kategorisiert
Modell:	VSC-102
Gewicht:	500 g
Produktfarbe:	Schwarz
AC Eingangsspannung:	100-240 V
AC Eingangsfrequenz:	50 - 60 Hz
Betriebstemperatur:	0 - 60 °C
Relative Luftfeuchtigkeit in Betrieb:	0 - 80 %
Fernbedienung enthalten:	Ja
Temperaturbereich bei Lagerung:	-30 - 70 °C
Unterstützte Grafik-Auflösungen:	2048 x 1536 (QXGA)
Full-HD:	Ja
Abmessungen (BxTxH):	165 x 76 x 44 mm
Maximale Auflösung:	2048 x 1536 Pixel
Bandbreite:	400 MHz
Video ports Anzahl:	2
Teilnehmerausgang:	2x VGA
