Cougar MX330 Bedienungsanleitung
Seiten 1 Nicht kategorisiert
Lies die Bedienungsanleitung für Cougar MX330 kostenlos online oder lade das PDF herunter. Diese Anleitung wurde 50 Mal aufgerufen. Frage zu diesem Modell? Stelle eine Frage
H
Vented slot covers for better cooling performance
2.5" HDD/SSD drive bays
I
3.5”HDD trays (compatible for 2.5”HDD/SSD)
J
Full arcrylic side panel window
F
E
5.25”shield
G
Right side cover
L
Air filter on bottom cover to prevent dust from entering the power supply
M
120mm fan for rear panel (pre-installed)
D
Front panel, removable to easily install 5.25”devices
A
Power button
B
Reset button
C
USB 3.0 / USB 2.0 / HD audio ports
K
120mm fans x 2 for front panel (optional), effectively cool the HDD &
graphics cards

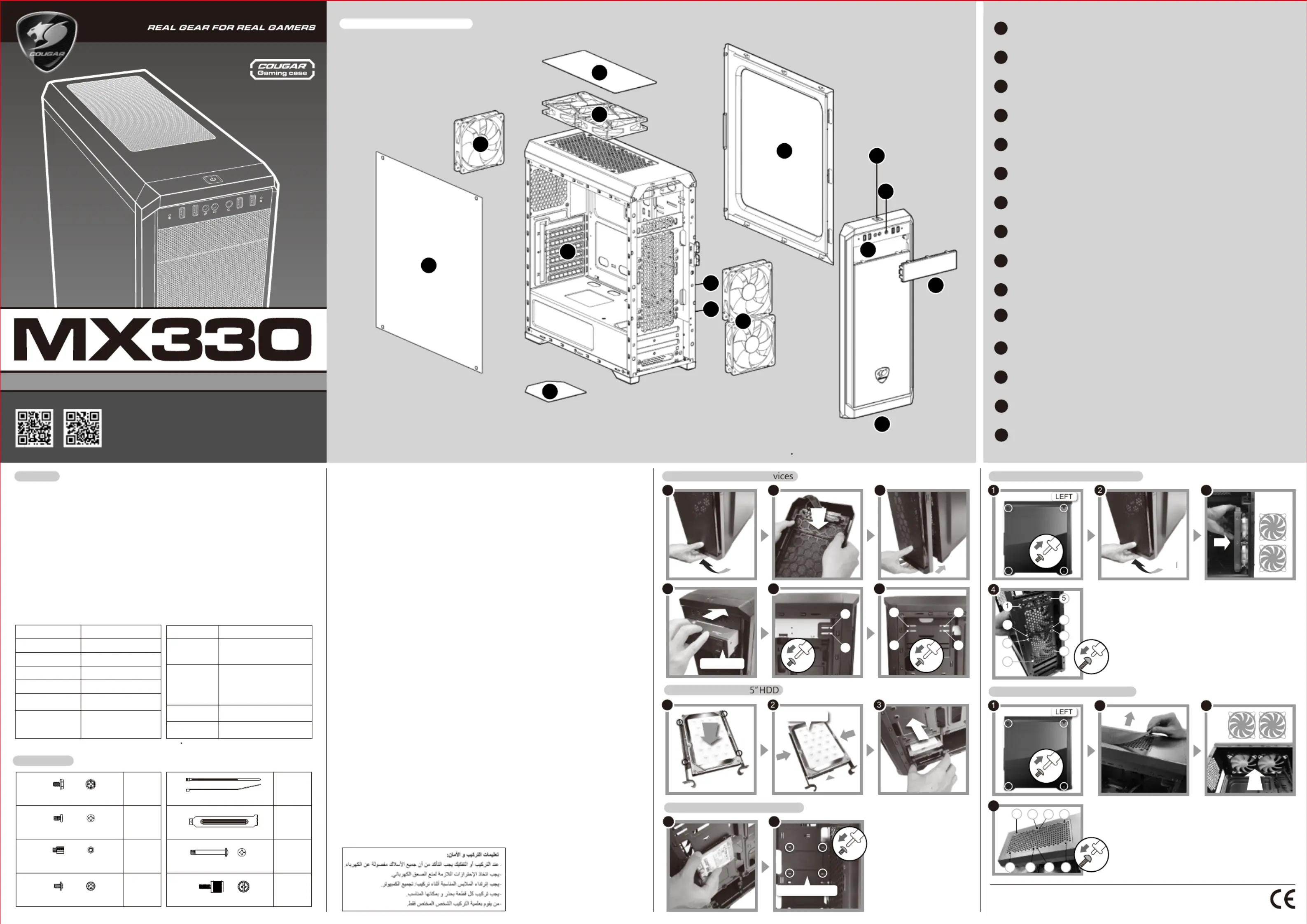

MX330 Assembly Drawing
Features
How to install the 5.25”de
12
PullPul
12
456
5.25” ODD
2.5” HDD/SSD
How to install the 3.
1
3.5” HDD
MX330 is a elegant looks, functional design, and durable construction don't need to be
pricy. you can get a styling, a full acrylic side panel window for admiring your components
●
PSU & 3.5 BAY COVER
Tucking all cables and less-attractive drives behind a clean, refined PSU cover
●
BEST COOLING SOLUTION
Water cooling radiator support up to 240mm on front
●
FULL ACRYLIC SIDE PANEL WINDOW
●
SUFFICIENT FLEXIBILITY FOR MULTIPLE GRAPHICS SOLUTIONS UP TO 350MM
●
CABLE FEEDTHROUGH ON THE MB TRAY FOR EASY ROUTING AND HIDING OF CABLES
●
7 PCI SLOTS PROVIDES FLEXIBILITY FOR MULTIPLE GRAPHICS CARDS SOLUTIONS
Connectors
33
1
2
1
6
7
8
2
3
4
2
3
4
E
D
G
N
O
K
I
J
H
F
L
M
B
A
C
N
Top panel fan filter can prevent dust from entering the chassis
O
120mm fans x 2 for top cover (optional)
The specification maybe varies depending on the country or region
USB
USBUSB
USB
COUGARFacebook
23
4
1
5678
234
GAMING MIDI TOWER
How to install the 2.5”HDD/SSD
How to install a water cooler (front)
How to install a water cooler (top)
Accessory Kit
Case TypeMiddle Tower
Mother board typeMini ITX / Micro ATX / ATX
Dimension ( mm)195(W)x473(H)x427(D)
5.25" Drive Bay1
3.5" Drive Bay2 (Internal)
Front: 240mm
Top: 120mm
Rear: 120mm
2.5" Drive Bay
Water cooling
radiator support
2+2
(converted from 3.5" drive bays)
Expansion slots
7
I/O Panel
USB 3.0 p1-x2 / USB 2.0 p1-x2 /
Mic x 1, Audio x 1
Front:120mm fan x 2
Top:120mm x 2
Rear:120mm x 1 (Pre-installed)
Cooling fan
support
Max. Graphic
cards length
350 mm
Max. CPU
cooler height
155mm
X 14
X 2
X 3
X 5
X 7
X 4
The specification maybe varies depending on the country or region
for Main Board
#6-32 for 3.5" HDD
#6-32 for PSU & Expansion Card
#6-32 for Front Fan
M3 for , ODD & 2.5" HDD/SSDMain Board
#6-32 for 3.5
"
HDD tray and cage
Slot cover
X 1
X6
Cable tie for cable management
●
Cobertura para Fuente y case 3.5
Escondiendo a todos los cables y drives poco atractivos detrás de una cobertura de fuente
refinada y clean.
●
Mejor resolución de enfriamiento
Soporte para radiador de water cooling – hasta 240mm adelante.
●
Flexibilidad suficiente para múltiples alternativas para tarjetas gráficas de hasta 350mm
●
Panel lateral con ventana totalmente en acrílico
●
Cable de feedthrough en la bandeja de la motherboard para fácilmente enrollar y esconder
los cables.
●
Diseño altamente limpiante
Filtros de aire que son fácilmente desmontables y limpiantes ubicados en las tapas de
arriba, adelante y debajo que te permiten mantener tu computadora limpia y protegida de
la suciedad.
●
7 slots PCI que proveen flexibilidad para múltiples alternativas de tarjetas gráficas.
●
Copertura per PSU e bay da 3.5
Nascondi tutti i cavi e le unità dall'aspetto meno gradevole dietro una copertura per PSU
●
La miglior soluzione per il raffreddamento
Il radiatore con raffreddamento ad acqua supporta fino a 240 mm davanti
●
Sufficiente flessibilità per più soluzioni grafiche fino a 350 mm
●
Finestra sul pannello laterale completamente in acrilico
●
Passaggio dei cavi sul vassoio MB per instradare e nascondere i cavi semplicemente.
●
Design che consente una facile pulizia
I filtri dell'aria superiori e il coperchio superiore e inferiore facilmente pulibili e staccabili
consentono di tenere pulito il computer e proteggerlo dalla polvere.
●
7 slot PCI per fornire flessibilità per più soluzioni per schede grafiche
●
Cobertura para Fonte e case 3.5
Escondendo todos os cabos e drives pouco atraentes atrás de uma cobertura de fonte
refinada e clean
●
Melhor resolução de resfriamento
Suporte para radiador de water cooling – até 240mm na frente.
●
Flexibilidade suficiente para múltiplas alternativas para placas de video de até 350mm
●
Painel lateral com janela totalmente em acrílico
●
Cabo de feedthrough na bandeja da placa mãe para facilmente enrolar e esconder os cabos.
●
Design altamente limpável
Filtros de ar que são facilmente destacáveis e limpáveis localizados nas tampas de cima,
da frente e debaixo que te permitem manter seu computador limpo e protegido da sujeira.
●
7 slots PCI que fornecem flexibilidade para múltiplas alternativas para placas de vídeo.
PORTUGUÊS
ESPAÑOL
ITALIANO
www.cougargaming.com
Copyright
©
Compucase Enterprise Co.,Ltd.
Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, An Ho Road Sec.
2 Tainan, Taiwan, R.O.C
Tel:+886-6-356-0606
Service E-Mail: service@cougargaming.com
Made in China
Produktspezifikationen
| Marke: | Cougar |
| Kategorie: | Nicht kategorisiert |
| Modell: | MX330 |
| Breite: | 195 mm |
| Tiefe: | 427 mm |
| Produktfarbe: | Schwarz |
| Höhe: | 473 mm |
| Anzahl USB 2.0 Anschlüsse: | 2 |
| Typ: | PC |
| LED-Anzeigen: | Ja |
| Ein-/Ausschalter: | Ja |
| Formfaktor: | Midi Tower |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: | 2 |
| Reset-Knopf: | Ja |
| Netzteil enthalten: | Nein |
| Audioanschlüsse: | Ja |
| Audioausgang: | Ja |
| Platzierung der Stromversorgung: | Boden |
| Anzahl der 5,25" Erweiterungseinschübe: | 1 |
| Anzahl der 3,5" Erweiterungseinschübe: | 2 |
| Anzahl der 2,5" Erweiterungseinschübe: | 2 |
| Seitenfenster: | Ja |
| Verbessertes Kabelmanagement: | Ja |
| Unterstützte Hard-Disk Drive Größen: | 2.5, 3.5 " |
| Unterstützte Motherboards Formfaktoren: | ATX, Micro ATX, Mini-ITX |
| Anzahl der Erweiterungsslots: | 7 |
| Max CPU Kühler-Höhe: | 155 mm |
| Max Grafikkarten-Länge: | 350 mm |
| Installierte Lüfter hinten: | 1x 120 mm |
| Anzahl unterstützter vorderer Lüfter (max.): | 2 |
| Durchmesser unterstützte Vorderseitenlüfter: | 120 mm |
| Anzahl der unterstützten oberen Lüfter (max.): | 2 |
| Unterstützte Lüfterdurchmesser (oben): | 120 mm |
| Anzahl der unterstützten hinteren Lüfter (max.): | 1 |
| Durchmesser unterstützter Rückseitenlüfter: | 120 mm |
| Anzahl der internen 3,5" Erweiterungseinschübe: | 2 |
| Unterstützte Radiatorgrößen vorne: | 240 mm |
| Unterstützte Radiatorgrößen hinten: | 120 mm |
| Unterstützte Radiatorgrößen oben: | 120 mm |
