H

Vented slot covers for better cooling performance

2.5" HDD/SSD drive bays

I

3.5”HDD trays (compatible for 2.5”HDD/SSD)

J

Tempered glass left cover

F

E

5.25”shield

G

Right side cover

L

Air filter on bottom cover to prevent dust from entering the power supply

M

120mm white LED fan x 1 for rear panel (pre-installed)

D

Front panel, removable to easily install 5.25”devices

A

Power button

B

Reset button

C

USB 3.0 / USB 2.0 / HD audio ports

K

120mm white LED fans x 2 for front panel (pre-installed),

effectively cool the HDD & graphics cards

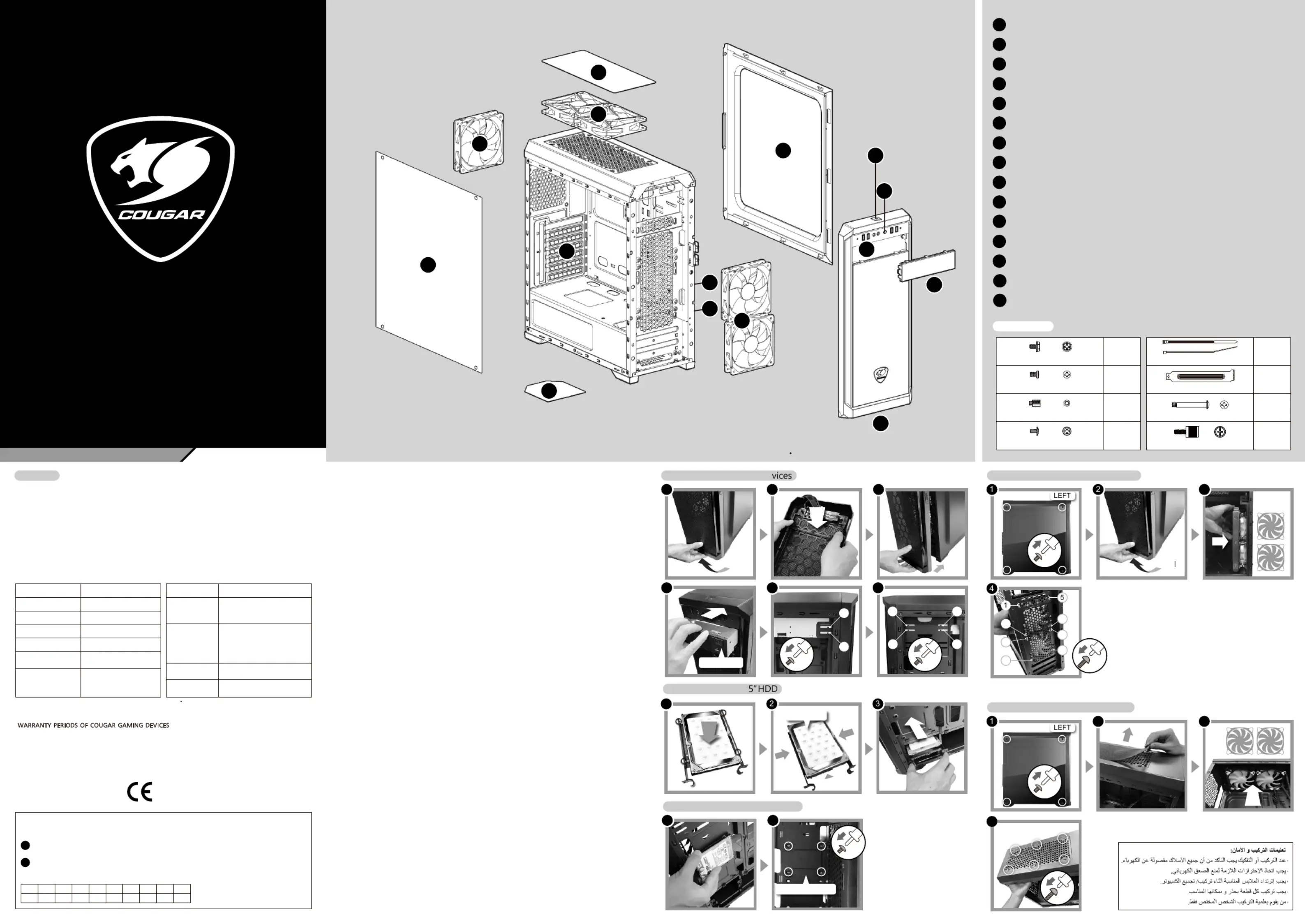

Assembly Drawing

Features

E

D

G

N

O

K

I

J

H

F

L

M

B

A

C

N

Top panel fan filter can prevent dust from entering the chassis

O

120mm fans x 2 for top cover (optional)

The specification maybe varies depending on the country or region

Accessory Kit

Case TypeMidi Tower

Mother board typeMini ITX / Micro ATX / ATX

Dimension ( mm)195(W)x473(H)x427(D)

5.25" Drive Bay1

3.5" Drive Bay2 (Internal)

Front: 240mm

Top: 120mm

Rear: 120mm

2.5" Drive Bay

Water cooling

radiator support

2+2

(converted from 3.5" drive bays)

Expansion slots

7

I/O Panel

USB 3.0 p1-x2 / USB 2.0 p1-x2 /

Mic x 1, Audio x 1

Front:120mm White LED Fans x 2

Rear:120mm White LED Fan x 1

Top:120mm x 2

(Front & Rear Fans Pre-installed)

Cooling fan

support

Max. Graphic

cards length

350 mm

Max. CPU

cooler height

155mm

X 14X 2

X 3

X 5

X 7

X 4

The specification maybe varies depending on the country or region

for Main Board

#6-32 for 3.5" HDD

#6-32 for PSU & Expansion Card

#6-32 for Front Fan

M3 for Main Board, ODD & 2.5" HDD/SSD

#6-32 for 3.5

"

HDD tray and cage

Slot cover

X 1

X6

Cable tie for cable management

●

PSU & 3.5" DRIVE BAY COVER

Route all cables and visually unattractive drives behind a clean and refined PSU cover.

●

POWERFUL COOLING SOLUTION

Support for water cooling radiators (front side, up to 240mm length)

●

TEMPERED GLASS LEFT COVER

Your computer will look cooler than ever.

●

HIGH FLEXIBILITY FOR MULTIPLE GRAPHICS SOLUTIONS: 7 PCI SLOTS

Support for up to three graphics cards (length up to 350mm)

●

CABLE FEEDTHROUGH ON THE MOTHERBOARD TRAY

Easy routing and hiding of cables.

●

Copertura per PSU e bay da 3.5

Nascondi tutti i cavi e le unità dall'aspetto meno gradevole dietro una copertura per PSU

●

La miglior soluzione per il raffreddamento

Il radiatore con raffreddamento ad acqua supporta fino a 240 mm davanti

●

Sufficiente flessibilità per più soluzioni grafiche fino a 350 mm

●

Finestra sul pannello laterale completamente in vetro temperato

●

Passaggio dei cavi sul vassoio MB per instradare e nascondere i cavi semplicemente

●

Design che consente una facile pulizia

I filtri dell'aria superiori e il coperchio superiore e inferiore facilmente pulibili e staccabili

consentono di tenere pulito il computer e proteggerlo dalla polvere

●

7 slot PCI per fornire flessibilità per più soluzioni per schede grafiche

●

Cobertura para Fonte e case 3.5

Escondendo todos os cabos e drives pouco atraentes atrás de uma cobertura de fonte

refinada e clean

●

Melhor resolução de resfriamento

Suporte para radiador de water cooling – até 240mm na frente.

●

Flexibilidade suficiente para múltiplas alternativas para placas de video de até 350mm

●

Painel lateral com janela de vidro temperado

●

Cabo de feedthrough na bandeja da placa mãe para facilmente enrolar e esconder os cabos

●

Design altamente limpável

Filtros de ar que são facilmente destacáveis e limpáveis localizados nas tampas de cima,

da frente e debaixo que te permitem manter seu computador limpo e protegido da sujeira

●

7 slots PCI que fornecem flexibilidade para múltiplas alternativas para placas de vídeo

DEUTSCH

●

Cubierta para fuente de alimentación y dispositivos de 3.5": Oculte los cables y

dispositivos poco atractivos detrás de una cubierta limpia y refinada.

●

Potente solución de enfriamiento: Soporte para radiador de refrigeración líquida de hasta

240mm de longitud en la parte frontal

●

Panel lateral con ventana de vidrio templado: ¡observe los componentes de su PC en acción!

●

Alta flexibilidad para soluciones con múltiples tarjetas gráficas: 7 ranuras PCI con soporte

para hasta tres tarjetas gráficas (longitud máxima 350mm)

●

Espacio para gestión de cables tras la bandeja de la placa madre: ¡ordene y oculte

fácilmente los cables!

ESPAÑOL

PORTUGUÊS

ITALIANO

●

Abdeckung für Netzteil und 3,5-Zoll-Schacht

Verstecken Sie alle Kabel und weniger attraktiven Laufwerke hinter einer sauberen,

raffinierten Netzteilabdeckung

●

Optimale Kühllösung

Unterstützt Wasserkühlung bis 240 mm an Vorder

●

Ausreichend Flexibilität für mehrere Grafiklösungen bis 350 mm

●

Fenster in Seitenblende aus gehärtetes Glas

●

Kabelöffnung am MB-Einsatz zum einfachen Verlegen und Verstecken von Kabeln.

●

Gut zu reinigendes Design

Dank einfach zu reinigender, abnehmbarer Luftfilter an der oberen, vorderen und unteren

Abdeckung können Sie Ihren Computer mühelos sauber halten und vor Staub schützen

●

7 PCI-Steckplätze bieten Flexibilität für Lösungen mit mehreren Grafikkarten

How to install the 5.25”de

12

PullPul

12

456

5.25” ODD

2.5” HDD/SSD

How to install the 3.

1

3.5” HDD

Connectors

33

1

2

1

6

7

8

2

3

4

2

3

4

23

4

How to install the 2.5”HDD/SSD

How to install a water cooler (front)

How to install a water cooler (top)
