Seite 1/12
5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com
INSTALLATION, OPERATION and MAINTENANCE
MANUAL for Cres Cor 12kW QUIKTHERM™ RETHERM OVENS

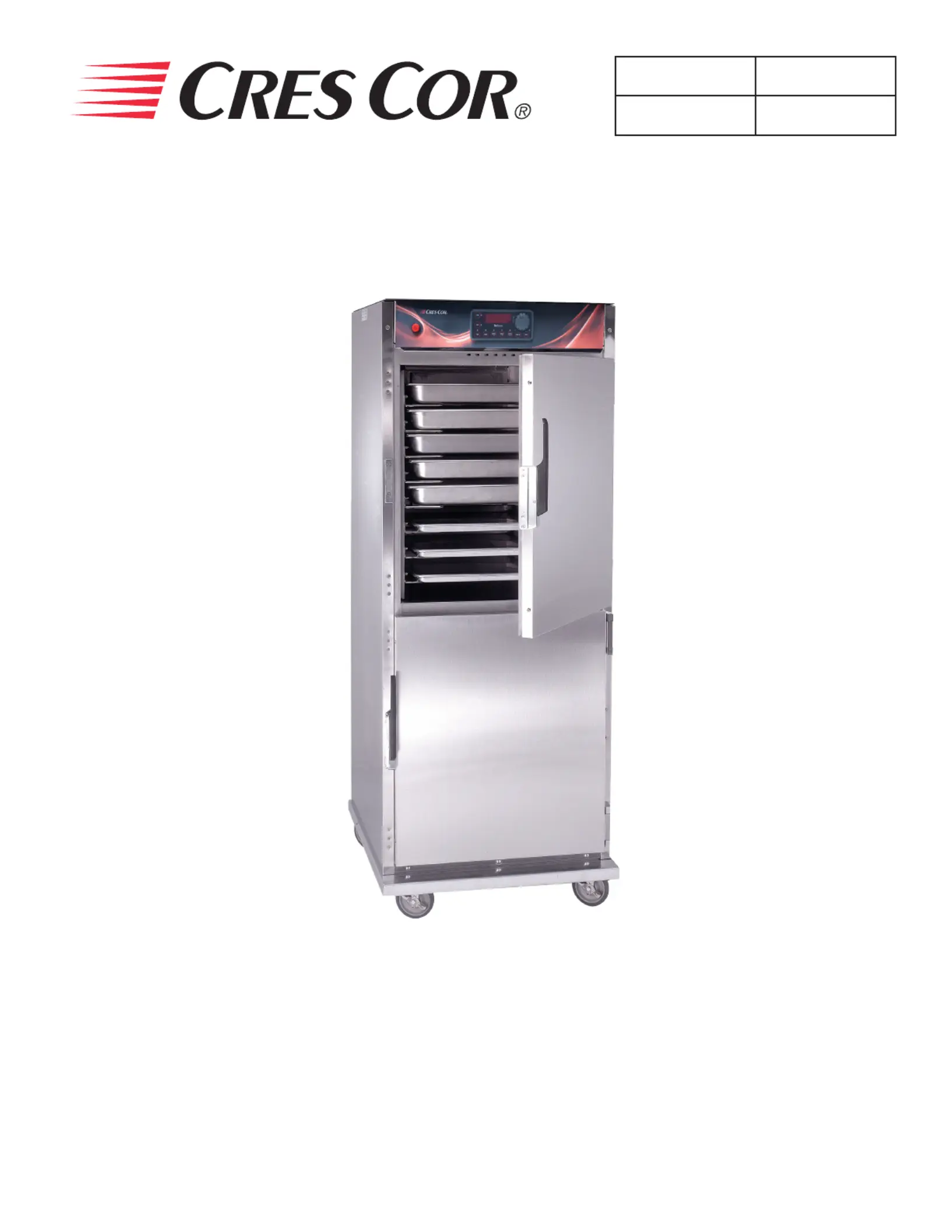

Retherm Oven
FL-2357
Rev. 3 (5/12)
Page 1 of 12
RO151FUA18D
RO151FPUA18D
RO151F1332D
5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com
Retherm Oven
FL-2357
Rev. 3 (5/12)
Page 2 of 12
TABLE OF CONTENTS
SUBJECT PAGE
INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
OPERATING INSTRUCTIONS
First Time Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
How to Use Control for Cooking & Holding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
How to Save and Use Recipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
“Quick Recipe” and Other Menu settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
MAINTENANCE INSTRUCTIONS
How to Clean the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Trouble Shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 8
Cabinet Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Hot Unit Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Wiring Diagram For 208/240 Volt, 3 Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Wiring Diagram for 480 Volt, 3 Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
SERVICE POLICY and AGENCY LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FL-1400
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE
PERSONNEL ONLY
RISK OF FIRE OR ELECTRIC SHOCK
DO NOT OPEN
WARNING
5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com
Retherm Oven
FL-2357
Rev. 3 (5/12)
Page 3 of 12
HOW TO INSTALL CABINETS:
1. Remove all packing material from inside and outside
of cabinet.
2. Position cabinet on level oor; install the cabinet
interior (pan slides) if not already installed.
3. Plug power cord into proper wall receptacle.
INSTALLATION INSTRUCTIONS
VENTING YOUR OVEN:
1. The purpose of ventilating hoods is to direct and
capture smoke, grease-laden vapors, heat, odors, or
fumes.
2. Low temperature equipment (maximum temperature
250°F/121°C) does not produce heat, odors, fumes,
grease-laden vapors or smoke and is not required to be
vented.
3. Most jurisdictions consider our low-temperature ovens
(maximum temperature is 350°F/177°C) as low-heat
appliances not requiring vent hoods.
4. Installation must conform with local codes. The
authority having jurisdiction of enforcement of
the codes will have the responsibility for making
interpretations of the rules.
UNIT SPECIFICATIONS: All units use six (6) elements (2000 watts each).
All units are rated 12000 watts.
MODEL NOS.
ELECTRICAL SPECS
(AC SERVICE)
ELEC. LOAD
POWER SUPPLY REQUIREMENT
ALL 3 PHASE IS 3 WIRE + GROUND
VOLTS PHASES HZ AMPS VOLTS AMPS PHASES VOLTS RECEPTACLE
RO151FUA18D2083
RO151FPUA18D2083
RO151F1332D2083
208 3 60 34 208 50 3 208 15-50R
RO151FUA18D2403
RO151FPUA18D2403
RO151F1332D2403
240 3 60 29 240 50 3 240 15-50R
RO151F1332D4803 480 3 60 15 480 30 3 480 L16-30R
FIRST-TIME OPERATION
NOTE: A new oven needs to “burn off” manufacturing
oils and excessive adhesive before its rst use.
Do NOT load food into oven until this has been
done!
1. Push the switch to on; the light will come on.
NOTE: The letters “LOTPR” (low temperature) will show
on the control panel until it reaches 140°F (60°C).
2. Press the “COOK” button.
3. Push down and turn the control knob to show 200°F.
Push the knob again to set the temperature. Run the
unit for one (1) hour.
4. Turn the unit off and let cool.
5. Wipe the inside clean with detergent and hot water.
HOW TO CHANGE FROM °C TO °F (if needed)
1. Push the switch on; the light will come on.
2. Push and hold the “SET” button and the button in the
lower left hand corner together for 5 seconds.
You are now entered into the menu.
3. Scroll over the”Unit” and change it to “C” , then scroll
to the “END”.
