CAEN-CK-7x1, 7x2
Functional Summary
The CAEN-CK-7x1 & 7x2 CAEN Cover Extension Kits
are designed to increase the overall depth of the CAEN-
7x1 and CAEN-7x2 automation enclosures by 1.5 inches.
Adding depth to these enclosures allows the enclosure to
accommodate excess wiring and third-party devices that
may not normally fit in the standard enclosure.

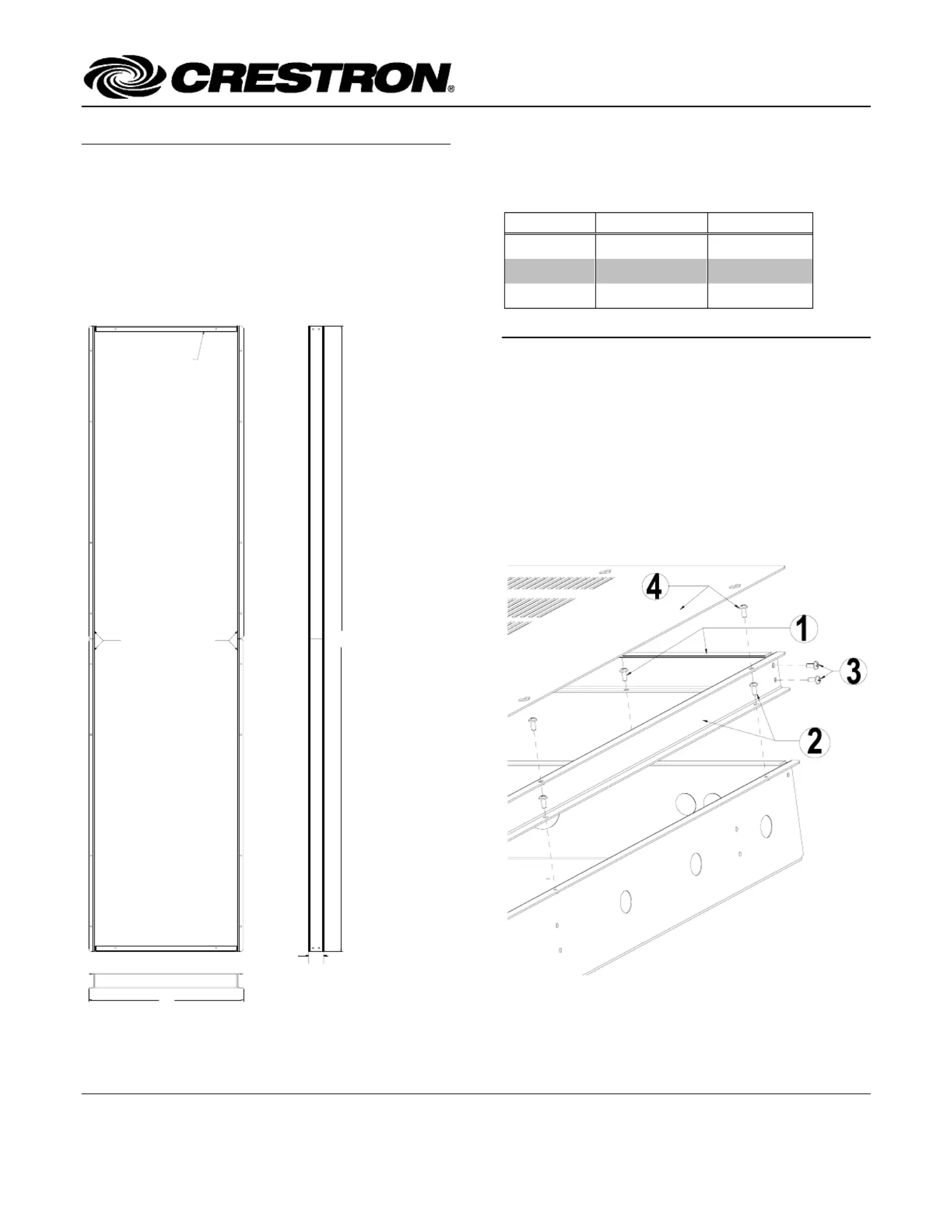

CAEN-CK Overall Dimensions (Front and Side Views)
HORIZONTAL
PAN (x2)
W
D
H
VERTICAL
BRACKET (x4)
The following table lists the dimensions for the
CAEN-CK-7x1 and CAEN-CK-7x2.
Dimensions of Enclosure Cover Kits
DIMENSION CAEN-CK-7x1 CAEN-CK-7x2
H 62.00 in 62.00 in
D 1.50 in 1.50 in
W 15.35 in 26.50 in
Installation
The cover extension kit should be attached to a Crestron
®
Automation Enclosure in accordance with all national and
local electrical codes. The enclosure cover and screws
must be removed prior to installation. Both must be
retained and used with the supplied screws to complete
the following procedure.
Refer to the following procedure shown in the installation
diagram when installing the CAEN Cover Extension Kit.
Installation Diagram
1. As shown in the installation diagram, place a
horizontal pan on the bottom and top of the CAEN
enclosure (edges facing inward). Use a #2 Phillips
tip screwdriver to secure the horizontal pans to the
enclosure using the 8-32 screws.
Crestron Electronics, Inc.Installation Guide – DOC. 6337
15 Volvo Drive Rockleigh, NJ 0764712.04
Tel: 888.CRESTRON
Fax: 201.767.7576Specifications subject to
www.crestron.comchange without notice.
