Seite 1/4
FT2A-CBLR-GR Series
Gravity Cable Retractors for FT2 Series
crestron.com
|
800.237.2041
>Convenient and cost-effective connectivity for FT2 Series FlipTop
™
cable management systems
>Precision gravity-assisted track and pulley retraction mechanism
>Cable pulls out smoothly to any length up to 34 inches (86 cm)
>Cable retracts gracefully by simply lifting it vertically above the table
>Highly flexible, low friction flat cable construction
>Robust soft-feel sculpted connectors for easy handling
>Durable construction for years of reliable use
>Backlit international symbol icon identifies the connector type
[1]
>Active 4K models support 4K60 4:4:4 digital AV signals
>Support for HDR and HDCP 2.2
>4K models available for HDMI
®
and DisplayPort™ devices
>Additional 4K models available to convert from DisplayPort to
HDMI, Mini DisplayPort to DisplayPort, Mini DisplayPort to HDMI,
and USB-C
®
to HDMI
>Passive models available for VGA, stereo audio, LAN, and USB 2.0
>Requires two module spaces at either end of a FlipTop module row
>Optional mid-row installation using additional brackets
>Retractor housing snaps onto the FlipTop chassis and extends
vertically beneath the table
>Requires 28-7/16 inch (722 mm) vertical clearance below the
table top surface
>Provides a 4 foot (1.2 meter) long tail below the table
Crestron
®
Gravity Cable Retractors ( ) offer a refined FT2A-CBLR-GR Series
cable management solution for use with Crestron FT2 Series FlipTop cable
management systems. Each cable pulls out smoothly to any length up to
34 inches (86 cm) and stays out as long as it remains laying on the table-
top. Simply lifting the cable vertically above the FlipTop assembly allows
the cable to retract gently back into the FlipTop. Gravity cable retractors
use a precision gravity-assisted track and pulley mechanism housed in a
vertical enclosure beneath the table.
Each Gravity Cable Retractor is composed of a retractor enclosure and
pass-through module. The enclosure attaches to the FlipTop chassis
beneath the table, while the module installs in the top of the FlipTop.
A 4 foot long cable tail is provided below the table for connection to a
DM
®
transmitter or similar interface device. The pull-out end of the cable
passes up through the module so that the connector nests neatly in place
and pulls out easily for use. Each module is labeled with an international
symbol icon indicating the connection type, which is backlit when installed
in an “Electrical” FT2 FlipTop. When installed in a “Mechanical” FlipTop,
the symbol icon remains legible but is not backlit.
The pass-through module occupies two module spaces within the FlipTop.
The retractor enclosure slides onto the side of the FlipTop chassis beneath
the table and locks into place with a snap. Retractors normally install at the
left and right ends of a module row, but can also be installed in the middle
of a row by adding an mid-row adapter bracket FT2A-CBLR-BRKT series
(one per row, each sold separately). Installation requires 28-7/16 inches
(722 mm) minimum vertical clearance below the top surface of the table.
End-mounted retractors require 2-3/8 inches (60 mm) horizontal clearance
to either side of the chassis, while mid-row retractors require 2-3/4 inches
(70 mm) horizontal clearance to the front or rear of the chassis.
Several models of gravity cable retractors are offered. The following “4K”
models feature a minimum TMDS bandwidth of 18 Gbps to support ultra
high-definition digital video signals up to 4K60 4:4:4. Active circuitry is
employed for optimal performance.
• HDMI
®
to HDMI – Model FT2A-CBLR-GR-4K-HD provides a retractable
High-Speed HDMI
®
cable with a male HDMI Type A connector at
both ends.
• DisplayPort
™
to DisplayPort – Model FT2A-CBLR-GR-4K-DP provides
a retractable DisplayPort cable with a male DisplayPort connector at
both ends.
• Model FT2A-CBLR-GR-4K-DP-HD provides a DisplayPort to HDMI –
retractable cable with a male DisplayPort connector at the source end
above the table and a male HDMI Type A connector at the sink end
below the table; converts DisplayPort to HDMI to allow connection of a
DisplayPort source to an HDMI input.
• Mini DisplayPort to DisplayPort – Model FT2A-CBLR-GR-4K-MDP-DP
provides a retractable cable with a male Mini DisplayPort connector at
the source end above the table and a regular-sized male DisplayPort
connector at the sink end below the table; converts Mini DisplayPort to
standard DisplayPort to allow connection of a Mini DisplayPort source to
a DisplayPort input.
• Model FT2A-CBLR-GR-4K-MDP-HD Mini DisplayPort to HDMI –
provides a retractable cable with a male Mini DisplayPort connector at
the source end above the table and a male HDMI Type A connector at
the sink end below the table; converts Mini DisplayPort to HDMI to allow
connection of a Mini DisplayPort source to an HDMI input.
• USB-C
®
to HDMI – Model FT2A-CBLR-GR-4K-USBC-HD provides a
retractable cable with a male USB Type-C
®
connector at the source
end above the table and a male HDMI Type A connector at the sink end
below the table; converts USB-C to HDMI to allow connection of a
USB-C source to an HDMI input.

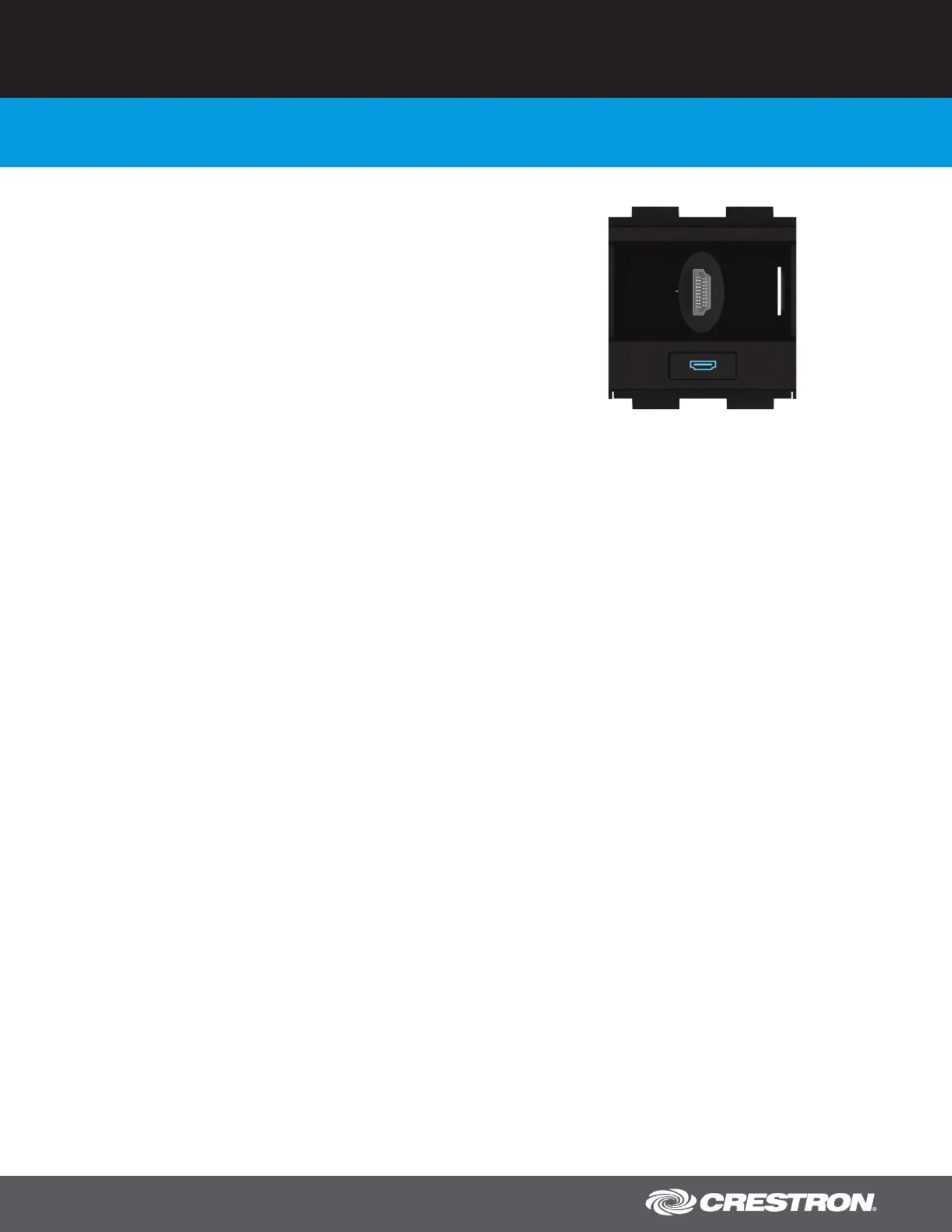

Model FT2A-CBLR-GR-4K-HD shown
(module portion)
FT2A-CBLR-GR Series Gravity Cable Retractors for FT2 Series
crestron.com
|
800.237.2041
Additional models are available to support analog AV and data signals.
These cables retractors are passive.
• Model FT2A-CBLR-GR-VGA provides a retractable VGA cable VGA –
with a male HD15 connector at both ends; supports resolutions up to
Full HD 1080p.
• Model FT2A-CBLR-GR-AUDIO provides a retractable Stereo Audio –
unbalanced stereo audio cable with a male 3.5 mm mini-TRS connector
at both ends.
• Model FT2A-CBLR-GR-CAT6 provides a retractable CAT6 LAN LAN –
cable with a male RJ-45 connector at both ends.
• Model FT2A-CBLR-GR-USB provides a retractable USB 2.0 USB 2.0 –
cable with a male USB Type-A connector at one end and a USB Type-B
connector at the other end. Note that this cable can be used to
connect laptops to codecs and extenders but cannot be used to connect
a laptop (PC) to another PC.
Should the cable within an FT2A-CBLR-GR series retractor ever become
damaged, it can be replaced on site using a new FT2A-CBL-PT
series cable.
Note: See also the Series “One-Touch” Cable Retractors for FT2A-CBLR-1T
applications with limited vertical space beneath the table.
SPECIFICATIONS
Cable
Pull-Out Length: Up to 2.83 ft (0.86 m) above table
Back End Tail Length: 4 ft (1.2 m) beneath table
Indicator
Symbol Icon: (1) Blue LED backlit icon indicating the cable connector type,
illuminates constantly when FlipTop is powered
[1]
Environmental
Temperature: 32° to 113° F (0° to 45° C)
Humidity: 10% to 90% RH (non-condensing)
Construction
Pass-Through Module: Precision fit plastic drop-in module, 2-space, black
Retractor Enclosure: Metal housing with plastic neck
End Mounting:
• Module requires two consecutive module spaces at the left or right
end of any module row within the FlipTop chassis;
• Enclosure attaches beneath the table to mounting slots on the left or
right side of the FlipTop chassis;
• Requires 28.4 inches (722 mm) minimum vertical clearance beneath
the top surface of the table;
• Projects 2.15 inches (55 mm) from the side of the FlipTop chassis
beneath the table, and requires an additional 0.2 inch or 5 mm
for installation
Mid-Row Mounting:
• Requires an mid-row adapter bracket (one FT2A-CBLR-BRKT series
per row, each sold separately);
• Module requires two consecutive module spaces in the middle of
any module row within the FlipTop chassis (refer to the relevant
FT2A-CBLR-BRKT model spec sheet for additional details);
• Enclosure attaches beneath the table to mounting slots on the front
or rear of the FlipTop chassis (via the bracket);
• Requires 28.4 inches (722 mm) minimum vertical clearance beneath
the top surface of the table;
• Projects 2.55 inches (65 mm) from the front or rear of the FlipTop
chassis beneath the table, and requires an additional 0.2 inch or
5 mm for installation
Dimensions
Height: 25.80 in (656 mm)
Width: 4.07 in (104 mm)
Depth: 1.85 in (47 mm)
Dimensions shown are for the retractor enclosure only
Notes:
1. The symbol icon on the top face of the module is only backlit when installed in an FT2 ELEC
series “Electrical” FlipTop. When installed in an FT2 MECH series “Mechanical” FlipTop, it is not
backlit but remains legible.
This product may be purchased from an authorized Crestron dealer. To find a dealer, please contact
the Crestron sales representative for your area. A list of sales representatives is available online at
https://www.crestron.com/How-To-Buy/Find-a-Representative or by calling 855-263-8754.
The specific patents that cover this and other Crestron products are listed online at
https://www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, please visit
https://www.crestron.com/opensource.
Crestron, the Crestron logo, DM, and FlipTop are either trademarks or registered
trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDMI is
either a trademark or registered trademark of HDMI Licensing LLC in the United States and/or
other countries. USB-C and USB Type-C are either trademarks or registered trademarks of
USB Implementers Forum, Inc. in the United States and/or other countries. DisplayPort is either a
trademark or registered trademark of Video Electronics Standards Association in the United States
and/or other countries. Other trademarks, registered trademarks, and trade names may be used
in this document to refer to either the entities claiming the marks and names or their products.
Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not
responsible for errors in typography or photography. Specifications are subject to change without
notice. ©2020 Crestron Electronics, Inc.
FT2A-CBLR-GR Series Gravity Cable Retractors for FT2 Series
crestron.com
|
800.237.2041

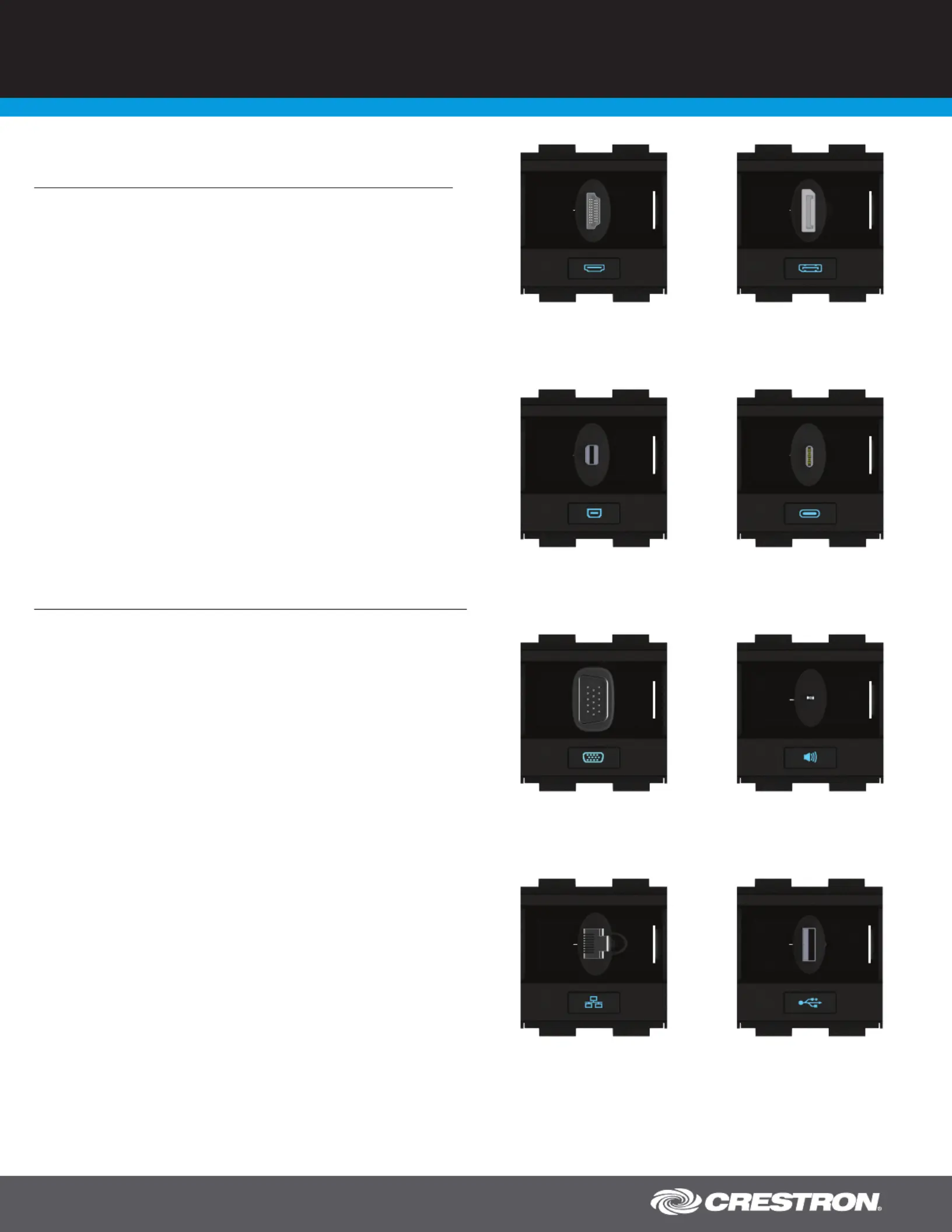

FT2A-CBLR-GR-4K-HD FT2A-CBLR-GR-4K-DP &
FT2A-CBLR-GR-4K-DP-HD
FT2A-CBLR-GR-4K-MDP-DP &
FT2A-CBLR-GR-4K-MDP-HD
FT2A-CBLR-GR-4K-USBC-HD
FT2A-CBLR-GR-VGA FT2A-CBLR-GR-AUDIO
FT2A-CBLR-GR-CAT6 FT2A-CBLR-GR-USB
Pass-Through Modules shown with retractable cables
MODELS & ACCESSORIES
Available Models
FT2A-CBLR-GR-4K-HD: Gravity Cable Retractor for FT2 Series, HDMI
®
to
HDMI, 18 Gbps
FT2A-CBLR-GR-4K-DP: Gravity Cable Retractor for FT2 Series, Display-
Port to DisplayPort, 18 Gbps™
FT2A-CBLR-GR-4K-DP-HD: Gravity Cable Retractor for FT2 Series,
DisplayPort to HDMI™
®
, 18 Gbps
FT2A-CBLR-GR-4K-MDP-DP: Gravity Cable Retractor for FT2 Series, Mini
DisplayPort to DisplayPort, 18 Gbps™
FT2A-CBLR-GR-4K-MDP-HD: Gravity Cable Retractor for FT2 Series, Mini
DisplayPort to HDMI™
®
, 18 Gbps
FT2A-CBLR-GR-4K-USBC-HD: Gravity Cable Retractor for FT2 Series,
USB-C
®
to HDMI
®
, 18 Gbps
FT2A-CBLR-GR-VGA: Gravity Cable Retractor for FT2 Series, HD15 male to
HD15 male, VGA, 1080p
FT2A-CBLR-GR-AUDIO: Gravity Cable Retractor for FT2 Series, 3.5mm
Mini-TRS Plug to 3.5mm Mini-TRS Plug, Stereo Audio
FT2A-CBLR-GR-CAT6: Gravity Cable Retractor for FT2 Series, RJ-45 to
RJ-45, CAT6
FT2A-CBLR-GR-USB: Gravity Cable Retractor for FT2 Series, USB-A to
USB-A with USB-B male adapter, USB 2.0, 8 ft (2.4 m)
Available Accessories
FT2A-CBLR-BRKT-700: Mid-Row Cable Retractor Adapter Bracket for
FT2-700 Series
FT2A-CBLR-BRKT-1400: Mid-Row Cable Retractor Adapter Bracket for
FT2-1400 Series
Produktspezifikationen
| Marke: | Crestron |
| Kategorie: | Nicht kategorisiert |
| Modell: | FT2A-CBLR-GR-4K-DP-HD |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Crestron FT2A-CBLR-GR-4K-DP-HD benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Nicht kategorisiert Crestron
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
Bedienungsanleitung Nicht kategorisiert
- Noyafa
- Baby Trend
- BDI
- Velux
- Redback Technologies
- IOIO
- TensCare
- Nite Ize
- Otamatone
- Mettler
- CE Labs
- Ultron
- Laney
- Bialetti
- The Grainfather
Neueste Bedienungsanleitung für -Kategorien-
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
