Seite 1/2

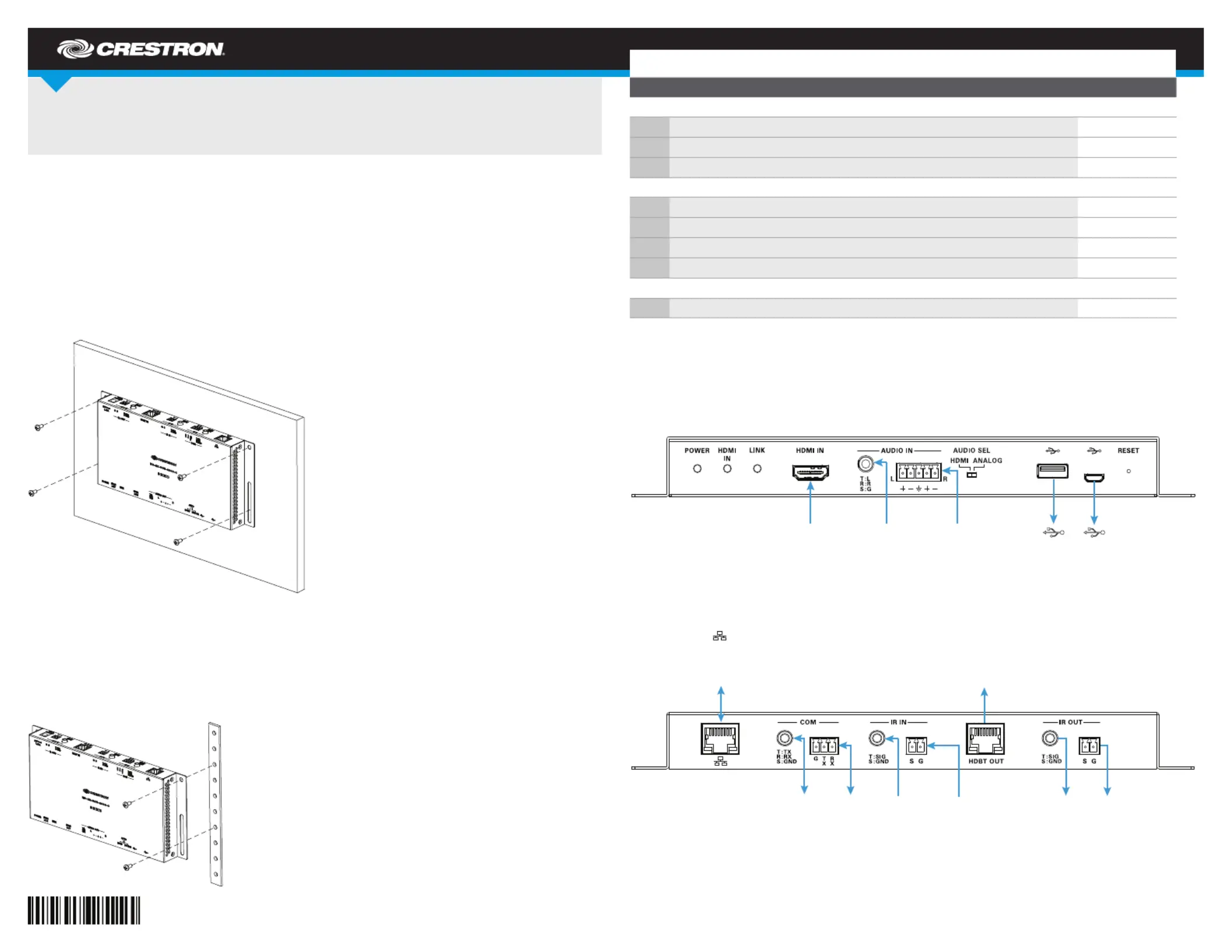

DO GUIDE

HD-EXT-USB-2000-C

HDBaseT

Extender for 4K HDMI

and USB Transmission

DO Connect the Devices

Connecting the Transmitter

Make connections to the front and rear panels of the transmitter as required.

Front Panel Connections

Rear Panel Connections

DO Install the Devices

The Crestron

HD-EXT-USB-2000-C consists of the HD-TX-USB-2000-C transmitter and the

HD-RX-USB-2000-C receiver. The transmitter and receiver can be mounted onto a at surface or

rack rail.

Mounting onto a Flat Surface

Using four mounting screws (not included), mount the transmitter and receiver onto a at surface

such as a wall.

Mounting onto a Wall

Mounting onto a Rack Rail

The transmitter and receiver can be mounted onto the front or rear rail of a rack. Position either the

left or the right mounting ange of the device so that the holes align with the holes in the rack. Then,

secure the device to the rack using two mounting screws (not included).

Mounting onto a Rack Rail

DO Check the Box

QTY PRODUCT PART NUM.

HD-TX-USB-2000-C

2 Connector, 2-Pin 2049091

1 Connector, 3-Pin 2049092

1 Connector, 5-Pin 2049093

HD-RX-USB-2000-C

2 Connector, 2-Pin 2049091

1 Connector, 3-Pin 2049092

1 Connector, 5-Pin 2049093

1 Power Pack, 24 VDC, 1.25 A, 100-240 VAC 2045870

Accessory

1 CBL-USB-A-BMICRO-6, Cable, USB 2.0, A to Micro-B, Male, 6 ft 6510947

HDMI IN:

From HDMI

audio/video

source

AUDIO IN:

From balanced/

unbalanced

analog audio

source

AUDIO IN:

From balanced/

unbalanced

analog audio

source

(Host):

To USB

device

(Device):

To USB

host

HDBT OUT:

To HDBT IN port

on receiver

IR IN:

From

Crestron

control port

or other IR

signal source

IR IN:

From

Crestron IR

control port

or other IR

signal source

IR OUT:

To IR

emitter

IR OUT:

To IR

emitter

COM:

RS-232

device

COM:

RS-232

device

Passive pass-through

to Ethernet port on

receiver

DO GUIDE

DOC. 7999D (2049074) 06/09/20

Specications subject to change without notice.

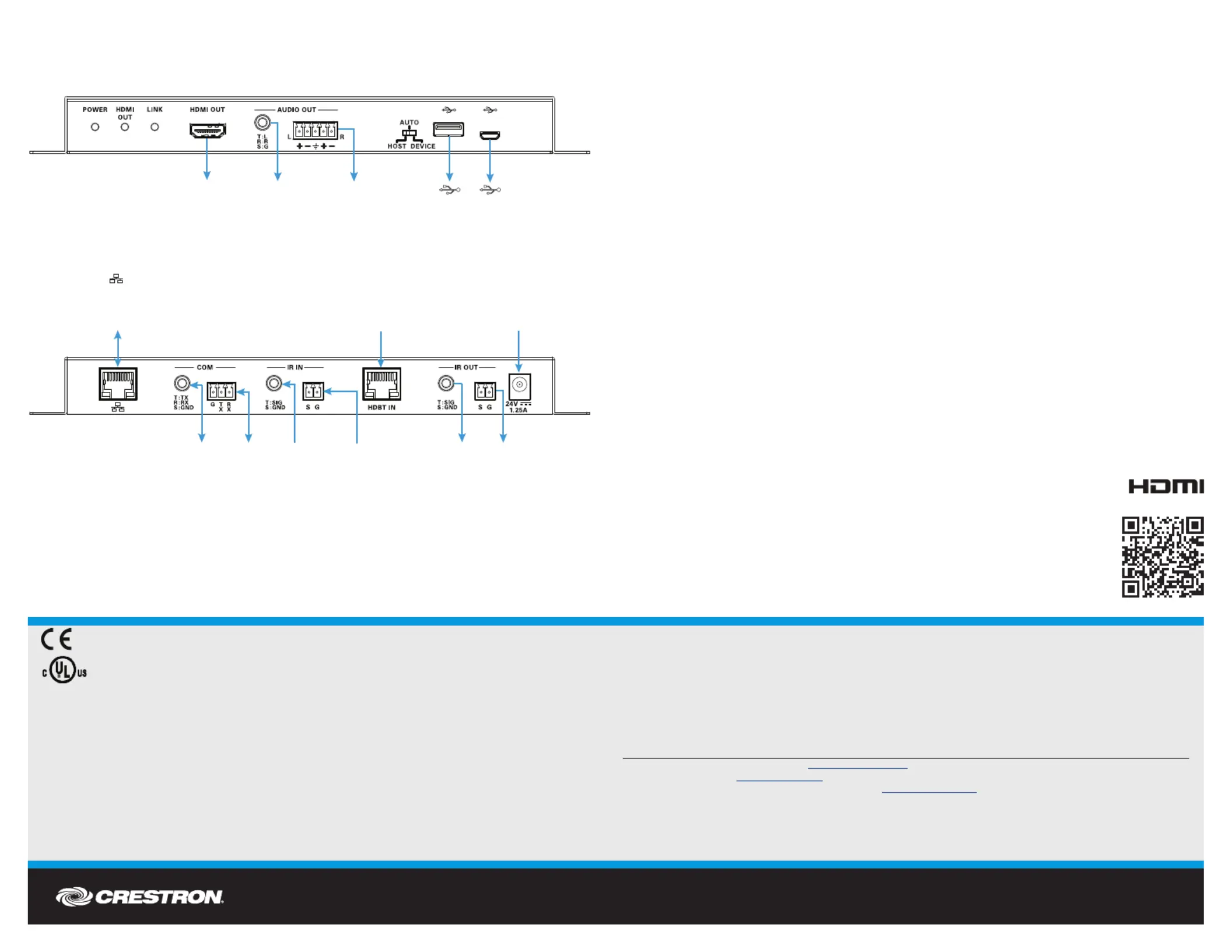

Connecting the Receiver

Make connections to the front and rear panels of the receiver as required.

Front Panel Connections

Rear Panel Connections

NOTE: Connection of the included power pack to the receiver powers both the receiver and the

transmitter. Power is transmitted over the cable that connects the HDBT IN port of the receiver to the

HDBT OUT port of the transmitter.

DO Select the USB Mode

The front panel of the receiver provides a three-position USB switch. Set the switch to one of the

following positions:

• (Default setting) Sets the USB mode to or based on the last device AUTO: HOST DEVICE

connected to either of the two USB ports on the receiver. If the last connected device is

disconnected, the USB mode returns to the mode of the previously connected device.

• Sets the USB mode to HOST: HOST, which allows data to pass between the USB Type

A host port on the receiver and the USB Type micro-B device port on the transmitter.

Connection to the USB Type micro-B device port on the receiver is ignored.

• Sets the USB mode to , which allows data to pass between the USB DEVICE: DEVICE

Type micro-B device port on the receiver and the USB Type A host port on the transmitter.

Connection to the USB Type A host port on the receiver is ignored.

NOTE: The USB mode of the transmitter is congured automatically to operate with the USB mode

of the receiver.

DO Select the Audio Mode

The front panel of the transmitter provides a two-position audio selection switch. Set the switch to

one of the following positions:

• (Default setting) Uses audio embedded in the HDMI stream.HDMI:

• ANALOG: Inserts analog audio into the video stream.

1. Only one AUDIO IN port at a time can be used—both ports cannot be used simultaneously.

2. Only one COM port at a time can be used—both ports cannot be used simultaneously.

3. Only one IR IN port at a time can be used—both ports cannot be used simultaneously. IR IN supports up to 60 kHz.

4. Only one IR OUT port at a time can be used—both ports cannot be used simultaneously. IR OUT supports up to 60 kHz.

5. Only one AUDIO OUT port at a time can be used—both ports cannot be used simultaneously.

DO Learn More

Visit the website for additional information and the latest rmware updates. To learn

more about this product, use a QR reader application on your mobile device to scan

the QR image.

Crestron Electronics

15 Volvo Drive, Rockleigh, NJ 07647

888.CRESTRON | www.crestron.com

As of the date of manufacture, the product has been tested and found to comply with specications for CE marking.

This product is Listed to applicable UL

Standards and requirements tested by Underwriters Laboratories Inc.

Ce produit est homologué selon les normes et les exigences UL applicables par Underwriters Laboratories Inc.

This unit is for indoor use only. It is not intended for outdoor use.

Cet appareil est réservé à une utilisation en intérieur. Il n’est pas destiné à une utilisation en extérieur.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference

that may cause undesired operation.

CAUTION: Changes or modications not expressly approved by the manufacturer responsible for compliance could void the

user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Industry Canada (IC) Compliance Statement

CAN ICES-3(B)/NMB-3(B).

The specic patents that cover Crestron products are listed at .www.crestron.com/legal/patent s

The product warranty can be found at .www.crestron.com/warranty

Certain Crestron products contain open source software. For specic information, visit . www.crestron.com/opensource

Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDBaseT is either a trademark or

registered trademark of the HDBaseT Alliance in the United States and/or other countries. HDMI and the HDMI logo are either trademarks or registered trademarks of HDMI Licensing LLC in

the United States and/or other countries. UL and the UL logo are either trademarks or registered trademarks of Underwriters Laboratories, Inc. in the United States and/or other countries.

Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any

proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.

HDMI OUT:

To HDMI

display

AUDIO OUT:

To analog audio

output device

AUDIO OUT:

To analog audio

output device

(Host):

To USB

device

(Device):

To USB

host

24 V

1.25 A:

From included

power pack

Passive pass-through

to Ethernet port on

transmitter

HDBT IN:

From HDBT OUT

port on transmitter

COM:

RS-232

device

COM:

RS-232

device

IR OUT:

To IR

emitter

IR OUT:

To IR

emitter

IR IN:

From

Crestron IR

control port

or other IR

signal source

IR IN:

From

Crestron IR

control port

or other IR

signal source

Produktspezifikationen

Marke:	Crestron
Kategorie:	Audio-/Video-Extender
Modell:	HD-EXT-USB-2000-C
Produktfarbe:	Schwarz
Übertragungstechnik:	Kabelgebunden
Material:	Metall
AC Eingangsspannung:	100-240 V
AC Eingangsfrequenz:	50 - 60 Hz
Betriebstemperatur:	0 - 40 °C
Relative Luftfeuchtigkeit in Betrieb:	20 - 90 %
Stromverbrauch (Standardbetrieb):	18.7 W
Typ:	AV-Sender & -Empfänger
USB-Stecker:	Micro-USB B
Anzahl der USB-Anschlüsse:	1
USB-Version:	2.0
Ausgangsstrom:	1.25 A
Maximale Auflösung:	4096 x 2160 Pixel
Anzahl der HDMI-Ausgänge:	1
Fernbedienung (IR) output:	1
Empfängerdimensionen (B x T x H):	244 x 25 x 114 mm
Empfängergewicht:	776 g
HDMI-In:	1
3,5 mm (1/8-inch) in:	Ja
Fernbedienung (IR) input:	1
RJ-45-Eingangsanschlüsse:	1
Transmitter-Abmessungen (BxTxH):	244 x 25 x 114 mm
Gewicht Transmitter:	776 g
Ethernet/LAN:	Ja
