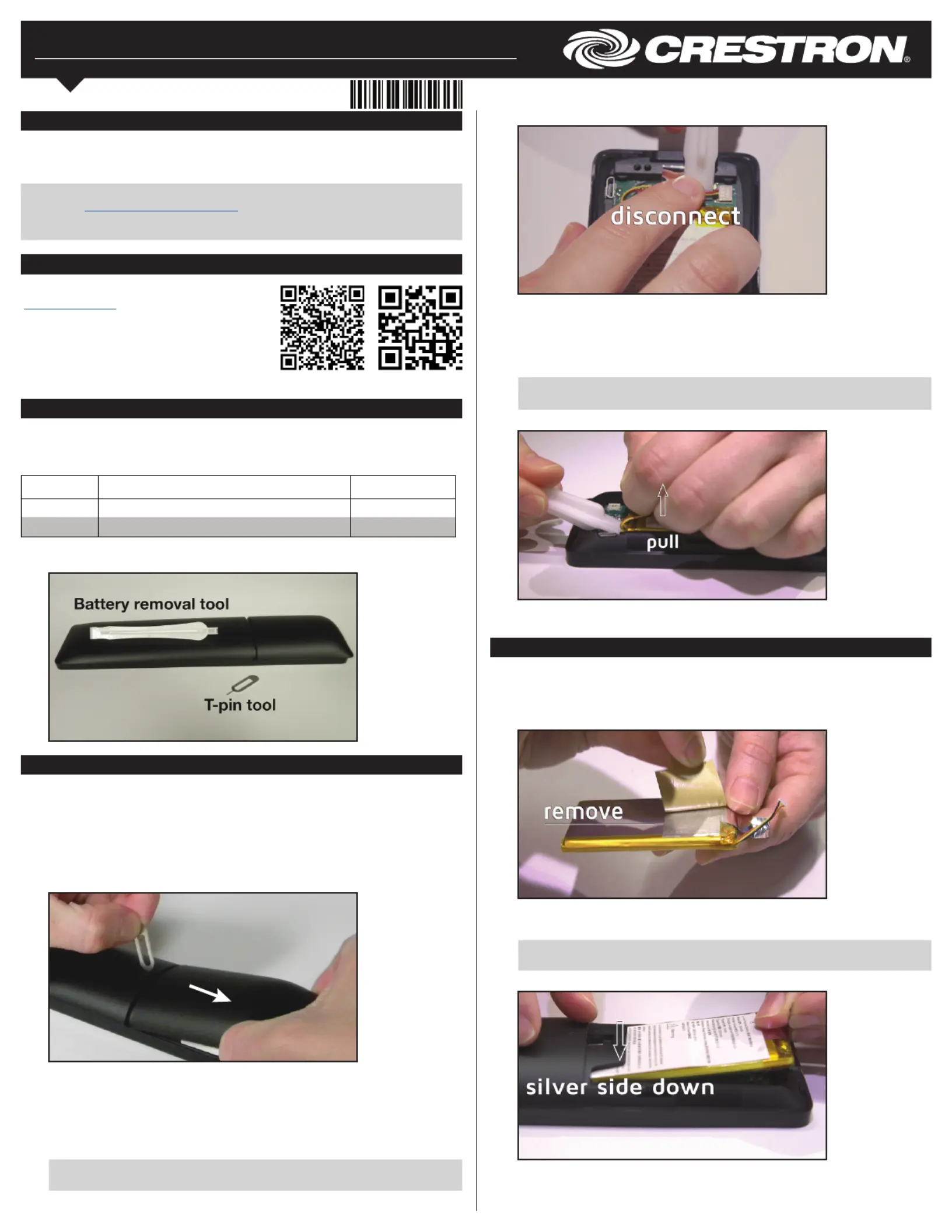

TSR-310-BTP

Battery Pack for TSR-310

Installation Guide

Description

The Crestron

®

TSR-310-BTP is a rechargeable lithium polymer battery pack that is

designed to replace the battery pack in a Crestron TSR-310 handheld touch screen

remote (not included).

NOTE:To view an instructional video showing the procedures documented in this

guide, visit , or use a QR reader application on your https://vimeo.com/252558509

mobile device to scan the “Instructional Video” QR image located in “Additional

Resources” below.

Additional Resources

Visit the product page on the Crestron website

() for additional information and www.crestron.com

the latest rmware updates. An instructional video

showing installation procedures can also be

viewed. Use a QR reader application on your

mobile device to scan the QR images, or click the

QR images to load the web pages.

Product PageInstructional Video

Supplied Hardware

Refer to the following table for a complete list of parts that are included with the

TSR-310-BTP:

Supplied Hardware for TSR-310-BTP

QUANTITY ITEM PART NUMBER

1 Tool, Battery Removal 2050938

1 Tool, T-Pin 2050937

Remove the Existing Battery Pack

To remove the existing battery from the TSR-310:

1. Place the TSR-310 on a clean, soft surface with the screen side facing down. Use

care to avoid scratching the front surface of the TSR-310.

2. Align the included t-pin tool with the small hole on the rear of the TSR-310.

3. Slide the battery cover away from the TSR-310 while pressing the t-pin down and

into the hole.

Removing the Battery Cover

7. Hold on to the silver ap attached to the battery pack, and insert the at end of the

battery removal tool underneath the battery pack with the other hand.

8. Place the at end of the battery removal tool under the battery, and then carefully

pry the battery pack up while pulling on the ap until the adhesive backing on the

battery pack separates from the inside of the battery compartment.

CAUTION: Do not press the battery removal tool against the circuit board

components when removing the battery pack.

Removing the Battery Pack

9. Pull the battery pack out the compartment using the ap.

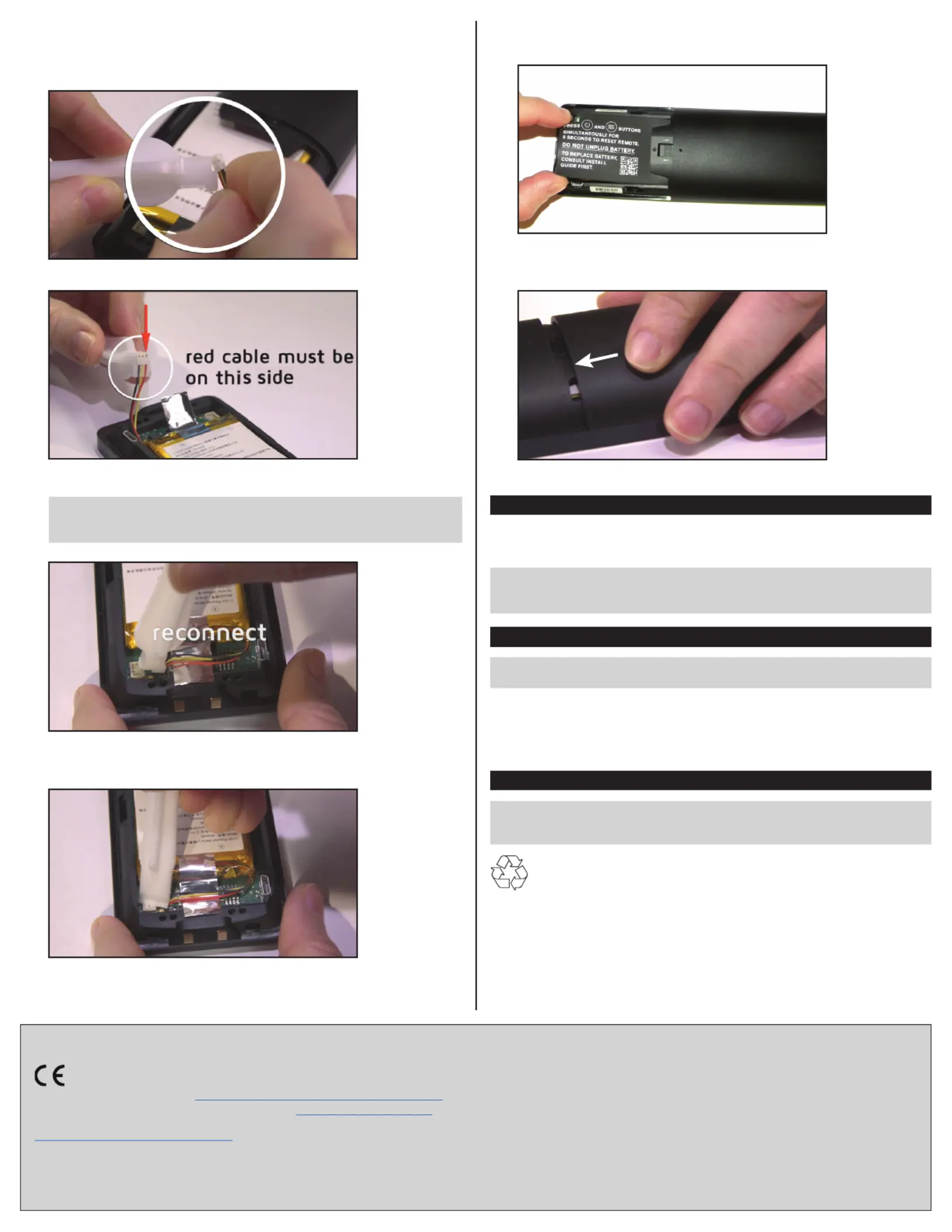

Install the New Battery Pack

Use the following procedure to install the new battery pack into the TSR-310:

1. Peel the adhesive backing off of the bottom of the replacement battery pack to

expose the adhesive surface.

Removing the Adhesive Backing

2. Hold on to the silver ap attached to the battery pack with two ngers, and slide the

battery pack at an angle down and into the TSR-310 battery compartment.

NOTE: The silver side of the battery pack (with the adhesive surface) must be

facing downward.

Inserting the Battery into the TSR-310

3. Press down on the battery pack to adhere the battery pack to the inside of the

battery compartment.

4. Lift the battery cover up and off the remote, and remove the insulating shroud that

covers the battery.

5. Place the at end of the battery removal tool underneath the wires extending from

the battery connector.

6. Pull up gently on the wires using the battery removal tool until the battery connector

disengages from the TSR-310 battery compartment.

CAUTION: Do not press the battery removal tool against the circuit board

components when disengaging the battery connector.

Removing the Battery Cover

Battery Removal Tool and T-Pin Tool
