Cudy GS2028PS4 Bedienungsanleitung

Cudy Schalter GS2028PS4

Lies die bedienungsanleitung für Cudy GS2028PS4 (2 Seiten) kostenlos online; sie gehört zur Kategorie Schalter. Dieses Handbuch wurde von 3 Personen als hilfreich bewertet und erhielt im Schnitt 4.6 Sterne aus 2 Bewertungen. Hast du eine Frage zu Cudy GS2028PS4 oder möchtest du andere Nutzer dieses Produkts befragen? Stelle eine Frage

Download PDF

Seite 1/2

Indicator

Reset Switch

24* Gigabit RJ45 Port(PoE)

4*Combo Gigabit Uplink Port

1* Console Port

4*Combo Gigabit SFP Port

Indicator

Reset Switch

48*Gigabit RJ45 Port(PoE)

4*10G SFP Port

1*Console Port

1*USB Port

Parameters

Ethernet switch: 1 Set Instruction manual: 1 PCS Certificate: 1 PCS Power cord: 1PCS 、、、

Serial cable: 1PCS Rack ear: 1 Pairs Operation manual CD: 1 PCS、、

Warranty Regulations

The warranty service is only valid when the user follows the instructions and precautions

The following situations are not covered by the warranty: the product warranty card

cannot be provided, the product warranty card is not filled in correctly, or the content

of the warranty card is altered without authorization. The machine is artificially damaged,

the machine is disassembled, the seal is torn, or is damaged

due to abnormal use, the product natural wear

For products that exceed the 2-year warranty or are not covered by the warranty,

we provide paid repair services

Bandwidth

Power

(PoE)

10 Ports

20 Ports

32/36 Ports 28/52 Ports

120W 300W 300/400W 400/800W

20Gbps

40Gbps 56/128Gbps

128/176Gbps

8*PoE

2*1G SFP

1*Console

16*PoE

2*RJ45

2*1G SFP

1*Console

24*PoE/SFP

4*RJ45

4/8*1G SFP

1*Console

24/48*PoE

4*10G SFP

1*USB

1*Console

Ports

Network

Medium

10BASE-T: Cat3, 4, 5 or above UTP(≤100 M)

100BASE-TX: Cat5 or above UTP(≤100 M)

1000BASE-TX: Cat5 or above UTP(≤100 M)

Multi-mode Fiber: 50/125, 62.5/125, 100/140um

Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um

AC 100~240 V 50/60Hz

Working

Voltage

Package List

Working

Environment

Working Temperature: -20~50°C

Storage Temperature: -40~70°C

Working Humidity: v5%~95%,non-condensing

Certification CE,FCC,RoHS

MTBF

100,000 hour

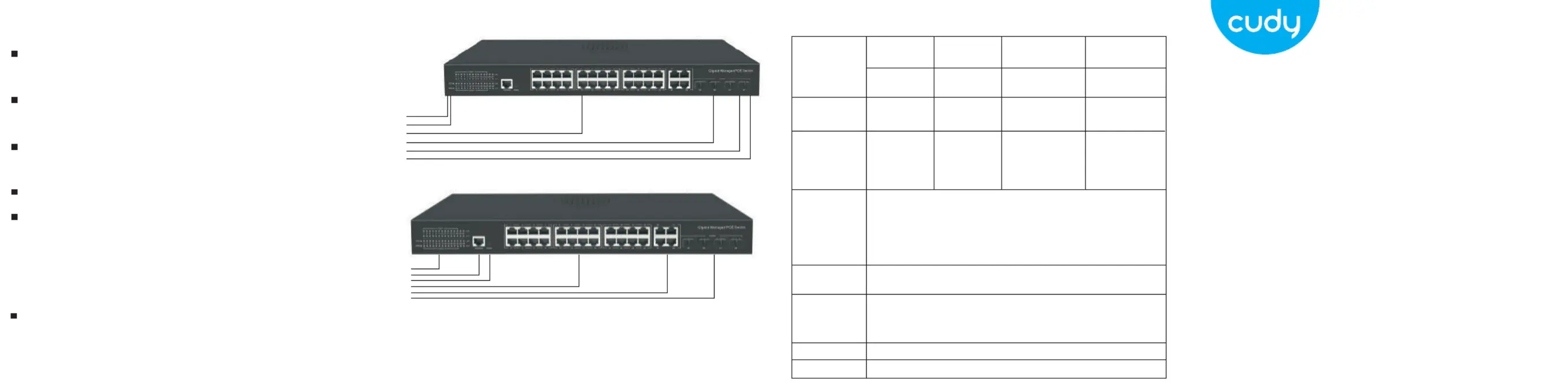

Panel description

When purchasing this product, users need to fill in the warranty card correctly and

keep it properly for product warranty certificate

The product cannot be used normally due to performance failure within6 months

from the date of sale, The same product can be replaced

Product quality problems under normal use within 2 years from the date of sale re

limited to 2 years warranty

Quick Installation Guide

Model: GS2028PS4

SYS

PWR

Link

/1000M

/Mode

Link

/ACT

System

state

DIP

indicator

VLAN

Extend

Default

SYS

PWR

POE/ACT

Link/ACT

1 3 5 7 9 11 13 15 17 19 21 23 25 27

2 4 6 8 0 12 14 16 18 20 22 24 26 28

Link

ACT

Link

ACT

Reset

Console

1 3 5 7

2 4 6 8

9 11 13 15

10 12 14 16 26 28 25 26 27 28

Gigabit Managed PoE Switch

17 19 21 23

18 20 22 24

25 27

Combo

PWR

SYS

Link

ACT

Link/ACT

ACT

Link

PoE/ACT

1 3 5 7 9 11 13 15 17 19 21 23 25 27

2 4 6 8 10 12 14 16 18 20 22 24 26 28

Console

Reset

1 3 5

10 12 14 16

17 19 21

18 20

22 24

Gig abit

Manage

POE S wi

tc h

26 28 25 26 27 28

Combo

PoE

Supply

PoE ON

PoE OFF

Indicator Description

DefinitionIndicators Status Description

Lighting

Light off

Powered

Power failed

Network

Link

Network

Link&Data

Power

supply

Link normal

Data Transmission

Link Disconnected

Lighting

Light off

Lighting

Light off

Lighting

Light off

Lighting

Shining

Light off

Lighting

Shining

Light off

Link normal

Link Disconnected

system normal

system startup

Notice: The picture is for reference only, please subject to the actual product.

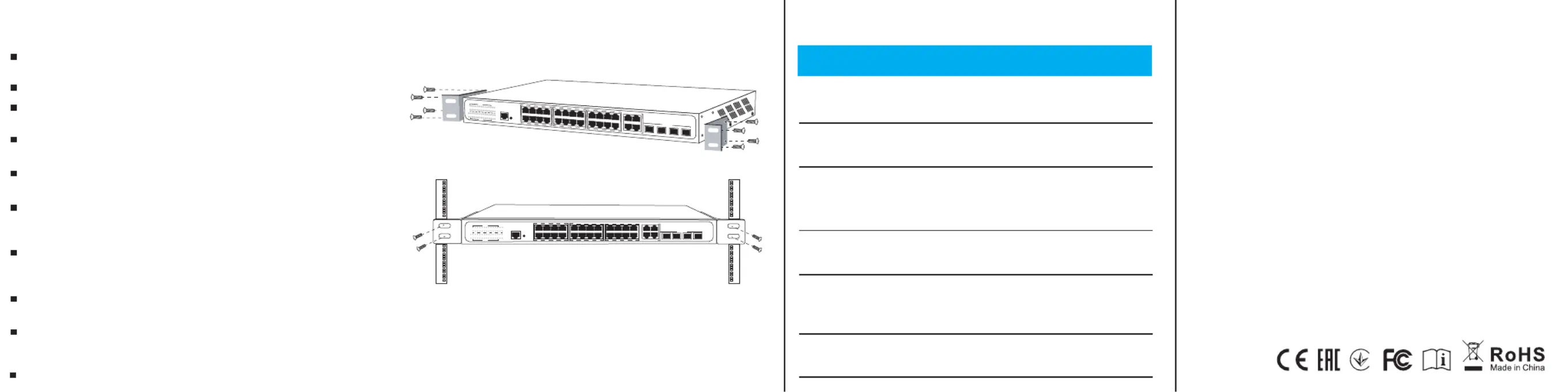

Mounting & Management

1.Fix the two L-shaped mounting brackets on both sides of the switch with the screws

provided in the accessories.

2.The mounting brackets is fixed on the guide groove with screws to ensure that the switch

is stably and horizontally installed on the rack

3.Log in to the web management interface

1).Use an Ethernet twisted pair cable (you need to prepare your own) to connect the PC

to any Ethernet port on the switch

2).Configure any address in the 192.168.2.0/24 network segment (except 192.168.2.1/24)

for the PC, such as 192.168.2.10.

3).Start the browser on the PC and use the address: http://192.168.2.1 to log in to the Web

management interface of the switch (the default user name and password are both admin

L3 management,support DHCP Server, QoS, ACL, SNMP V1/V2/V3, IGMP Snoopingv1/v2

Support STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, support

remote loopback monitoring and control 802.3ah OAM)（

Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN; Support

IPV4/IPV6,IPv6 Ping,IPv6 Tracert,IPv6 Telnet,IPv6 SSH,IPv6 SSL

Support IP address + MAC address + VLAN+Port binding, DHCP Snooping, support

IP source and DAI protection

Genius PoE, PoE power supply priority, PoE watchdog, PoE port power supply and

power configuration, PoE time management,PoE supports IEEE 802.3 AF v/ at / BT

Standard (POE enabled products only)

Support global information, statistical information, log information, port rate, duplex,

flow control, maximum frame length configuration, port mirror, port speed limit, port

energy saving, user management, alarm management and configuration management

Supports static aggregation and LACP dynamic aggregation. Based on IP, MAC and

mixed load balancing mode, it supports up to 32 aggregation groups (8 ports for each

aggregation group)

Support 802.1x port authentication, AAA Authentication, TACACS + authentication,

support web, Telnet, CLI, SSH, SNMP, RMON management

Surge : common mode ≥ 6kV, ESD: contact ≥ 6kV, air ≥ 8Kv

Product Highlights

Support IEEE 802.1d,IEEE 802.1w,IEEE 802.1s,IEEE 802.1p,IEEE 802.3,IEEE 802.3u,

IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3ae standards

For support and warranty, please visit: http://www.cudy.com/.

Specifications are subject to change without notice. Cudy is a

registered trademark of Shenzhen Cudy Technologies Co., Ltd. Other

brands and product names are trademarks or registered trademarks

EU declaration of conformity

Cudy hereby declares that the device is in compliance with the

essential requirements and other relevant provisions of directives

2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.The original

EU declaration of conformity may be found at

http://www.cudy.com/en/ce

CE Mark Warning

This is a class B product. In a domestic environment, this product

may cause radio interference, in which case the user may be required

to take adequate measures.

Produktspezifikationen

Marke:	Cudy
Kategorie:	Schalter
Modell:	GS2028PS4
Breite:	285 mm
Tiefe:	445 mm
Produktfarbe:	Schwarz
Höhe:	45 mm
Energiequelle:	AC
AC Eingangsspannung:	100 - 240 V
DC input Spannung:	52 V
Betriebstemperatur:	-20 - 55 °C
Relative Luftfeuchtigkeit in Betrieb:	10 - 95 %
Verpackungsbreite:	350 mm
Verpackungstiefe:	470 mm
Verpackungshöhe:	120 mm
Netzstandard:	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Quality of Service (QoS) Support:	Ja
Power over Ethernet (PoE):	Ja
Gehäusematerial:	Metall
LED-Anzeigen:	Activity, Link, Power, System
Temperaturbereich bei Lagerung:	-40 - 85 °C
Switch-Typ:	Managed
Anzahl der basisschaltenden RJ-45 Ethernet Ports:	24
Basic Switching RJ-45 Ethernet Ports-Typ:	Gigabit Ethernet (10/100/1000)
Konsolen-Port:	RJ-45
10G-Unterstützung:	Nein
Kupfer Ethernet Verkabelungstechnologie:	10BASE-T, 100BASE-TX, 1000BASE-TX
MAC-Adressentabelle:	8000 Eintragungen
Routing-/Switching-Kapazität:	56 Gbit/s
Rack-Einbau:	Ja
Formfaktor:	1U
Web-basiertes Management:	Ja
Multicast Unterstützung:	Ja
Anzahl Combo-SPF-Anschlüsse:	4
Anzahl Gigabit Ethernet (Kupfer) Anschlüsse:	24
Port-Spiegelung:	Ja
Link Aggregation:	Ja
Spannbaum-Protokoll:	Ja
VLAN-Unterstützung:	Ja
Anzahl der VLANs:	4096
Management-Protokolle:	SSHv1/2, SNMP V1/V2/V3, RMON v1
Speicherkapazität:	128 MB
Flash-Speicher:	16 MB
Store-and-Forward:	Ja
Kabellängenerfassung:	Ja
Virtuelle LAN-Funktionen:	MAC address-based VLAN, Voice VLAN
unterstütze Kabeltypen:	Cat3, Cat4, Cat5, Cat5e, Cat6
Unterstützung Datenflusssteuerung:	Ja
Ratenbeschränkung:	Ja
Broadcast-Sturmkontrolle:	Ja
Transferrate:	41.66 Mpps
Datenpaket-Pufferspeicher:	4 MB
Switch-Ebene:	L2
Systemereignisprotokoll:	Ja
Gesamtleistung Power over Ethernet (PoE):	300 W
Zugriffkontrollliste:	Ja
Höhe bei Betrieb:	0 - 3048 m
Wellenlänge:	1550 nm
Ventilatorlos:	Ja
SSH-/SSL-Unterstützung:	Ja
Power over Ethernet (PoE) Spannung:	55 V
Authentifizierung:	Port-basierte Authentifizierung
Druckanstiegsschutz:	Ja
Höhe bei Lagerung:	0 - 3048 m
Selbstlernen von MAC-Adressen unterstützt:	Ja
Auto-Alterung von MAC-Adressen unterstützt:	Ja
IP-MAC-Portbindung:	Ja
Power over Ethernet (PoE) Leistung pro Anschluss:	30 W
Autentifizierungstyp:	IEEE 802.1x, TACACS+
Warteschleifenplanungs-Algorithmen:	Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Fibertyp:	Multi-Modus
Transmissionsentfernung (max):	120 km
Multicast Listener Discovery (MLD) Snooping:	v1/2/3
Multicast-Funktionen:	Multicast traffic suppression
GARP VLAN Registration Protocol (GVRP):	Ja
Druckanstieg-Schutzspannung:	15 kV
Anzahl der Uplink-Ports:	4
IGMP-Snooping:	Ja
Maximale Übertragungsdistanz (Multi-Mode):	2000 m
Maximale Übertragungsdistanz (Single-Mode):	120000 m
