BPSE36V45A BPSE72V45A /

User’s Manual

K01- C0000 -01 37

IMPORTANT SAFETY INSTRUCTIONS

This manual contains important instructions. Please read and follow all instructions carefully

during installation and operation of the unit. Read this manual thoroughly before attempting to

unpack, install, or operate the Battery modules.

CAUTION! The UPS unit must be connected to a grounded AC power outlet with fuse or circuit

breaker protection. The Battery modules grounded are through the UPS.

CAUTION! The battery can power hazardous components inside the unit, even when the AC

input power is disconnected.

CAUTION! To prevent the risk of re or electric shock, install in a temperature and humidity

controlled indoor area, free of conductive contaminants. (Please see specications for

acceptable temperature and humidity range).

CAUTION! (No User Serviceable Parts): Risk of electric shock, do not remove cover. No user

serviceable parts inside. Refer servicing to qualied service personnel.

CAUTION! (Non-Isolated Battery Supply): Risk of electric shock, battery circuit is not

isolated from AC power source; hazardous voltage may exist between battery terminals and

ground. Test before touching.

CAUTION! Wiring must be done by qualied personnel.

CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of re, do not

use with or near aquariums. Condensation from the aquarium can come in contact with metal

electrical contacts and cause the machine to short out.

CAUTION! Do not dispose of batteries in re as the battery may explode.

CAUTION! Do not open or mutilate the battery, released electrolyte is harmful to the skin and

eyes.

CAUTION! A battery can present a risk of electric shock and high short circuit current. The

following precaution should be observed when working on batteries

1. Remove watches, rings or other metal objects.

2. Use tools with insulated handles.

CAUTION! Make sure everything is turned o and disconnected completely before conducting

any maintenance, repairs or shipment.

CAUTION! Connect the Protection Earth (PE) safety conductor before any other cables are

connected.

DO NOT INSTALL THE UNIT WHERE IT WOULD BE EXPOSED TO DIRECT SUNLIGHT OR

NEAR A STRONG HEAT SOURCE!

SERVICING OF BATTERIES SHOULD BE PERFORMED OR SUPERVISED BY PERSONNEL

KNOWLEDGE OF BATTERIES AND THE REQUIRED PRECAUTIONS. KEEP

UNAUTHORIZED PERSONNEL AWAY FROM BATTERIES!

UNPACKING

The box should contain the following:

Battery Module

User s manual ’

Battery Cable

BASIC OPERATION

FRONT/REAR PANEL DESCRIPTION

BPSE36V45A

BPSE V45A72

1. Input Connector

Use this input connector to daisy chain the next Battery module. Remove the connector cover for

access.

2. On-board Replaceable Fuse Cover

Replaceable fuse is accessible from the rear panel. It must be done by qualied personnel.

3 Battery Output Connector .

Use this output Connector to connect the Battery module to the Power module or to the next

Battery module.

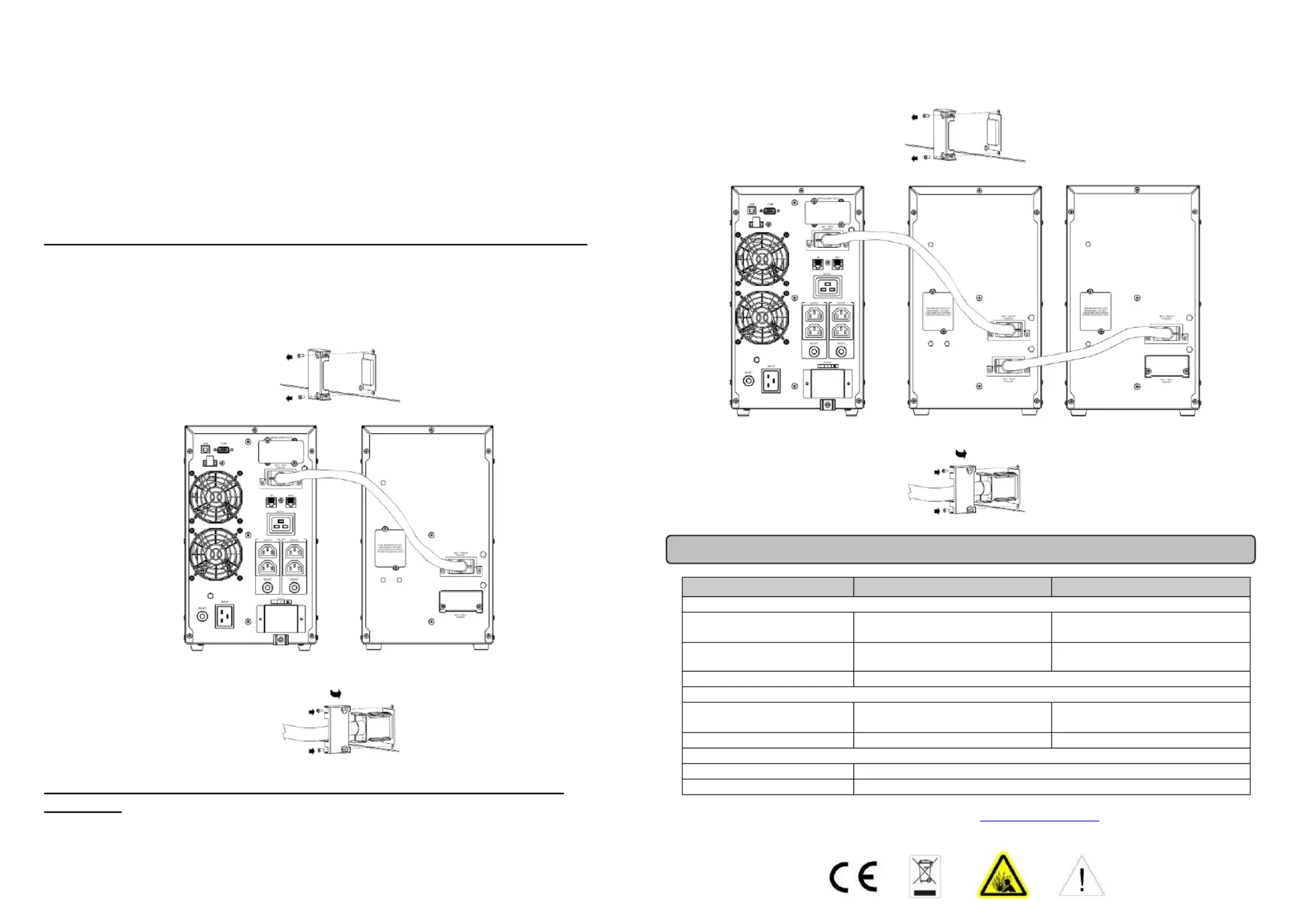

CONNECTION #1 : POWER MODULE(UPS) WITH ONE BATTERY MODULE

Step 1:Loosen the two screws to remove the battery cable retention bracket of the Power

module.

Step 2:Use the battery cable of the Battery module to connect the Battery module to the Power

module.

Step 3: Rotate the battery cable retention bracket and tighten the two screws to x battery cable.

CONNECTION #2 : POWER MODULE(UPS) WITH MULTIPLE BATTERY

MODULES

Step 1:Connect the 1

Battery module to the Power module using battery cable. (Refer to above

steps of connection #1)

Step Loosen the two screws to remove the battery cable retention bracket of the 12:

battery

module.

Step 3: Use the battery cable connect the 2to

Battery module to the 1

Battery module.

Step 4: Rotate the battery cable retention bracket and tighten the two screws to x battery cable.

TECHNICAL SPECIFICATIONS

Model

BPSE36V45A

BPSE72V45A

Battery

Sealed Maintenance Free

Lead Acid Battery

12V / 7Ah x3pcs x2sets

12V / 7Ah x6pcs x2sets

Rated Battery Voltage

36Vdc

72Vdc

Overload Protection

Fuse

Physical

Maximum Dimensions

(HxWxD) (mm)

225 151 94 x x 3

337 x 1 x416 96

Weight (kg)

17.2

34.2

Environment

Operating Temperature

0 C to 40 C  

Relative Humidity

0 to 90% (Non-condensing)

For more information, visit www.cyberpower.com

Produktspezifikationen

Marke:	CyberPower
Kategorie:	Batterie
Modell:	BPSE36V45A
Breite:	151 mm
Tiefe:	394 mm
Gewicht:	17200 g
Produktfarbe:	Schwarz
Höhe:	225 mm
Betriebstemperatur:	0 - 40 °C
Relative Luftfeuchtigkeit in Betrieb:	0 - 90 %
Verpackungsbreite:	241 mm
Verpackungstiefe:	510 mm
Verpackungshöhe:	313 mm
Paketgewicht:	18700 g
Zertifizierung:	CE , GOST , LOA
Gehäusematerial:	Metall
Temperaturbereich bei Lagerung:	-20 - 40 °C
Luftfeuchtigkeit bei Lagerung:	0 - 90 %
Anzahl:	1
Anzahl unterstützter Akkus/Batterien:	6
Akku-/Batteriespannung:	12 V
Batteriekapazität:	7 Ah
Formfaktor:	Tower
Nachhaltigkeitszertifikate:	RoHS
Höhe bei Betrieb:	0 - 1500 m
