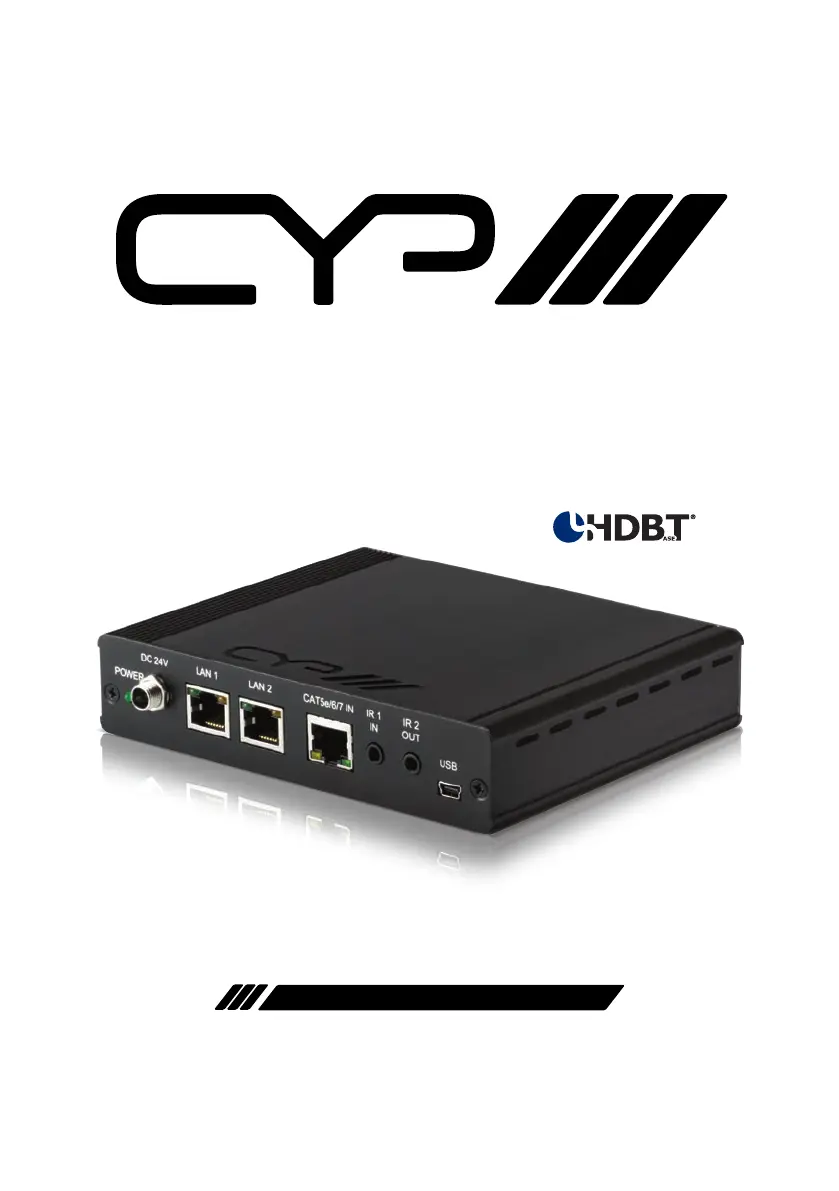

PU-515PLTX-1H
HDBaseT™ LITE Transmitter with simultaneous HDMI output
(HDMI, IR & RS-232 with POC, up to 60m)
OPERATION MANUAL
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
•Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
•To prevent fi re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
suffi cient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. SUMMARY OF CHANGEDATE DD/MM/YY
VR0 10/01/14 Preliminary Release
CONTENTS
1. Introduction 1 ............................................
2. Applications 1 ...........................................
3. Package Contents 1 ................................
4. System Requirements 1 ............................
5. Features 2 ..................................................
6. Operation Controls and Functions 3 .......
6.1 Front Panel 3 ........................................
6.2 Rear Panel 4 .........................................
6.3 IR Cable Pin Assignment..................5
6.4. D-Sub 9-Pin Defi nitions ....................5
7. Connection Diagram 6 ............................
8. Specifi cations ........................................ 7
8.1 CAT5e/6/7 Cable Specifi cation .....8
9. Acronyms 8 ...............................................
